Product Details:
|
| Brand Name: | Aorui | Certificate: | CE ISO9001 |
|---|---|---|---|
| Color: | According To Customer's Requirement | After-sales Service: | Engineer Can Go To Customer's Factory |
| Plastic Process: | PP PE | Warranty: | 1 Year |
| Delivery Time: | 30 Days | ||
| High Light: | Plastic Pelletizing Machine,Plastic Granulating Machine |
||
Plastic PP PE Waste Plastic Granulator , Waste Plastic pp pe Granules Making Machine
QUICK DETAIL:
1. Process flow of plastic film granulating machine:

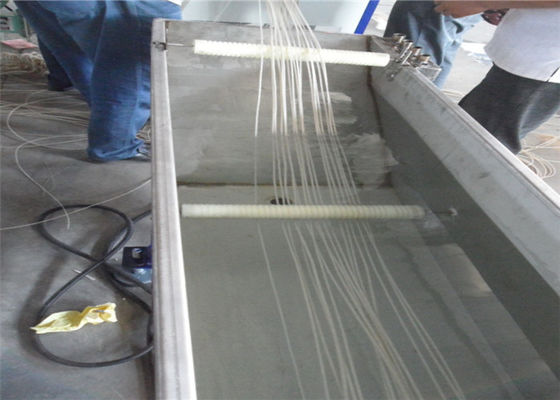

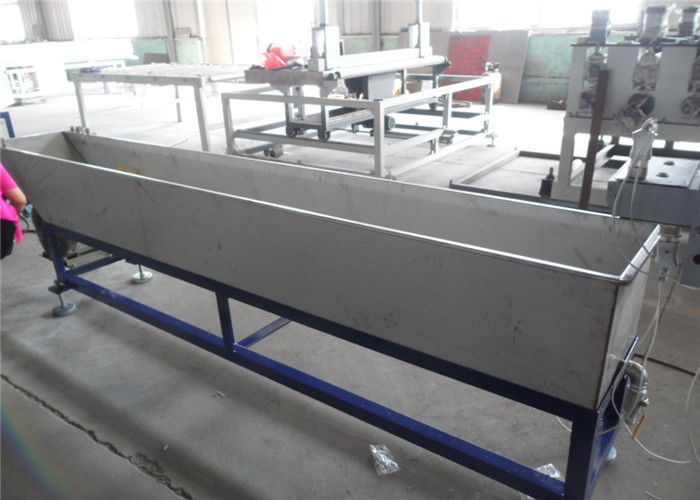

Feeding conveyor belt →metal detector(optional) → compactor feeder→single screw extruder(first stage) →Vacuum degassing system→hydraulic screen changer→Degassing Die Head→ Single screw extruder(second stage)→Hydraulic screen changer→Degassing die head→Water cooling tank→Drying Blower→Pelletizer cutter→ vibration screen → air conveyor→silo
2. PP/PE Film Double Stage Pelletizing Recycle Line, Granulator PP/PE Double Stage Pelletizing Production Line double stage pelletizing extrusion line PP/PE Double Stage Granulating/Pelletizing Production Line PP/PE Two-stages pelletizing Line PP PE film pelletizing line Double rank pelletizing line pp pelletizing machine pe pp pelletizing machine pp pe granulating line
Description:
1. This plastic pelletizing granulating line which is suitable for many kinds waste plastic materials recycling and making pellet, such as PE/PP/HDPE/PLA Film,bags, PLA film, clean woven/nonwoven bag materials, etc. The film can be pressed in compressor and then be pelleted.
2. And also has very developed design, makes sure this machine has a long working life and economical efficiency in using.You can choose use single stage or double stage pelletizing machine according to how clean of you material; also you can choose the cooling cutting system or die-face hot cutting system.
Specifications:
| Model | SJW45/33 | SJW60/33 | SJW75/33 | SJW90/33 | SJW120/33 | SJW150/33 |
| Screw diameter(mm) | 45 | 60 | 75 | 90 | 120 | 150 |
| L/D | 33:1 | 33:1 | 33:1 | 33:1 | 33:1 | 33:1 |
| Transmission power(kw) | 37 | 75 | 110 | 160 | 280 | 400 |
| Center height | 1000 | 1000 | 1100 | 1100 | 1100/1300 | 1300 |
| Output(kg/h) | 150 | 300 | 450 | 600 | 900 | 1200 |
Our company competitive advantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
