PP PET Strapping Band Machine, PET Packing Belt Strap Band Production Line

Brand Name:	AORUI
Model Number:	SJ-65/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA ISO9001

Condition:

New

Application:

Strap Band

Plastic Processed:

PP PET

Screw Design:

Single Screw

Automatic Grade:

Fully Automatic

Place Of Original:

Shandong, China

Voltage:

380V 50HZ

Warranty Time:

1 Year

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

Strapping Band Making Machine

Strap Making Machine

Product Description

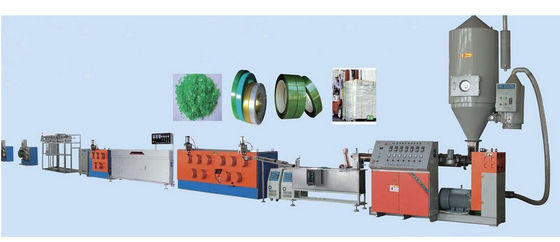

PP PET Strapping Band Machine, PET Packing Belt Strap Band Production Line

Description:

1. PET Strap Band Extrusion Line is new equipment which is developed by our company through long-time production experience, combining characteristics of advanced plastics industry. It adopts frequency motor as its power, soft connection of mechanical transmission with functions of high precision, smoothness, low noised, saving power and time.

2. Single screw or twin screw technique for option depending on the requirement. 100% recycled flakes can be used for production. Even plasticization and stable extrusion with PC automatic control for the full line, the dosing pump ensures continuous and control for the full line.

3. PET strap band has high stretching quality, resist high temperature. It is mainly suitable for package. Its advantages are strong pulling force, good extension, rust resistance, lighter density, convenient operation, safe, reliable and cheap price, etc.

The Main Techinical Parameter

Items		We	others
Equipment applicable raw materials		New, pellets, 100% PET bottles flakes, can also be added waste tape (viscosity 0.75 or above)	PET bottle flakes material (raw material size: 10 -16 mm)
Max.capacity		100-380kg/h	80-340 kg/h
Energy consumption		16008:400KWh/T	16008:400-500KWh/T
Screw material		38CrMoAIA	38CrMoAIA
Embossing roller material		φ156×290 (SKD-11)	φ155.5×220(SKD-11)
Cooling tank material		stainless steel(304)	stainless steel
Main production parameters of equipment	Width deviation(mm)	<±0.45	<±0.5
	Thickness deviation(mm)	<±0.05	<±0.06
	Fracture tension range(kN)	16008≥450KN;	16008≥400KN
	2m deflection(mm)	<80mm	<100mm
Equipment size (L×W×H)		I shape :3866.5(m) L shape :3486.5(m) U shape:2886.5(m)	4537(m)
Equipment Weight		15-20T	10-15T
Exported countries		More than 20 countries including America, Japan, Vietnam, Saudi Arabia, Egypt, Jordan, Russia, Italy, Brazil, Argentina, etc	Mainly for domestic market
Technical strength		We not only produce strap making machine, but also use our own machine to produce strap to sell. Accumolate more than 23 years experience, customer can totally copy our experiences on strap marketing, producing, to success fast	Only produce strap machine, lack of strap marketing and producing experiences

Application :
Mainly used for produce PP PET Strap Band.

Competitive Advantage:

1. PET production line for packing belt is new equipment developed by our company ,by combining the characteristics of our plastics product trade ,collecting advantages of the same type machine made in domestic and overseas markets and repeating practice in production.
2. The machine adjusts is conversion motor as power source .
3. The mechanical transmission adopts soft connection.
4. Its rotation is exact and smooth, saving power and low noise.
PP PET Strapping Band Machine, PET Packing Belt Strap Band Production Line 0
