Product Details:
|
| Brand Name: | Aorui | Model Number: | SJ75/33 |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Power: | 85-220kw |
| Voltage: | 380V 50HZ | Product Thinkness: | 0.6-1.3mm |
| Port Of Shipment: | Qingdao | Strap Band Color: | Bule White Yellow |
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||

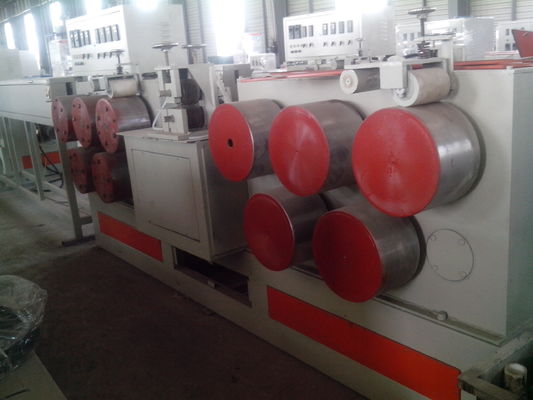

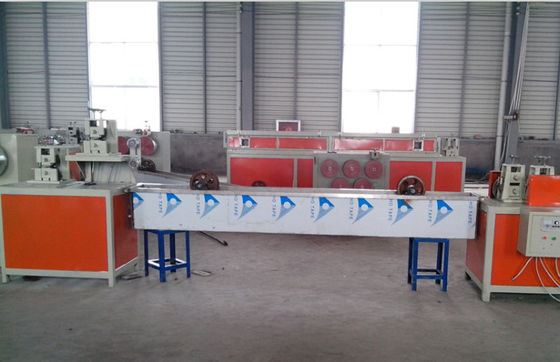

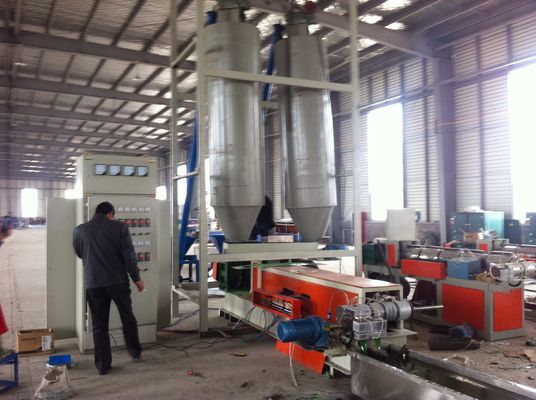

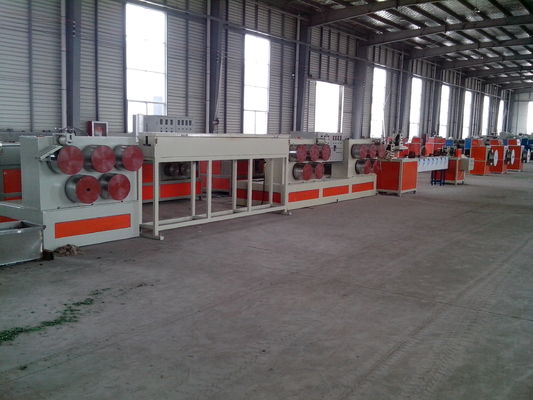

Fully Automatic PET Strap Band Machine , PP PET Single Screw Strap Banding Production Line
Description:
1.The PET strap band Production line can use 100% recycled material to obtain a high add value commodity like
strapping band.
2. PLC manages automatically the extruder's working parameters in according with the running condition;
Material treatment, extrusion, stretching, annealing and taking up units are all synced with the PLC.
3. All components are controlled and monitored through PLC.PET or PP straps can be produced with the
same technology, to change line set-up from one to the other only take in few minutes.High-advanced
ABA co-extrusion technology, not only improve strap's tensile strength but also help the peel strength after welding.Double column 4 positioned filter chambers.
4. 100% full automatic self-cleaning screen changer,working non-stop during screen changing, it ensures the straps quality is not affected
throughout the production.
The Main Techinical Parameter
| SPECIFICATION FORPET PP PET STAPS BELT EXTRUSION MACHINERY FOR PACKING | |||||||
| Model | Screw Diameter (mm) | Straps width (mm) |
Straps thickness(mm) | Speed(m/min) | Extension ratio(N/mm2) | Strength | Capacity(kg/h) |
| GWSGD-75 | 75 | 9.5-19 | 0.5-1 | 50-120 | 4-9 | ≥450 | 400-100 |
| GWSGD-80 | 80 | 9.5-19 | 0.5-1 | 50-120 | 4-9 | ≥450 | 400-120 |
| GWSGD-90 | 90 | 9.5-19 | 0.5-1.2 | 50-210 | 4-9 | ≥550 | 60-180 |
| GWSGD-100 | 100 | 9.5-19 | 0.5-1.2 | 50-210 | 4-9 | ≥550 | 80-220 |
Application :
(1) high tensile strength, both strip-like tensile strength, but also can impact scalability, better ensure transportation safety products.
(2) Small elongation, elongation rate is one-sixth of polypropylene tape, can long maintain the tension.
(3) temperature resistance, melting point of 260 degrees, 120 degrees below the use of deformation.
(4) safety, without risk of pollution rusty steel tied objects, bright colors to be learned.
(5) economic good, one ton PET packaging belt length equivalent to 6 tons with the specifications of the strip length, unit price per meter more than 40% lower than steel, to reduce packaging costs.
1. Professional factory: We, not only produce PET & PP strapping band making machine ,but also produce PET & PP strapping band for more than 23 years. We are expert to know how to design the machine rationally.
2. Reasonable Price: We produce PET strapping band making machine and PET strapping band in large quantities. Cause large-scale operation, for the same category and same quality machine, our price is most competitive, 10%-20% lower than others.
3. High output: For the same category and same quality machine, the capacity of our machine is 20% higher than others.
4. Good quality: The width deviation, thickness deviation, skewness of straps made by our machine, is 10-20% better than others.
5. Low power consumption: 10-20% lower than others.
6. Free installation & training: quickly solve after-sales problems within 24 hours.
