Fully Automatic Plastic Profile Extrusion Line Double Screw CE ISO9001 Approved

Brand Name:	AORUI
Model Number:	SJSZ65/132
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA ISO9001

Condition:

New

Application:

Profile

Plastic Processed:

PVC

Screw Design:

Double Screw

Automatic Grade:

Fully Automatic

Brand Name:

Aorui

Certificate:

CE ISO9001

After-sales Service:

Engineers Availiable To Service

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 sets per quarter

Highlight:

Plastic Profile Extrusion Machine

Plastic Profile Extruder

Product Description

Plastic Profile Extrusion Line , PVC Wood - Plastic Profile Extrusion Machine

Description of pvc profile machinery:

1. pvc wood plastic profile process flow:

Raw material+wood power+additive→mixing→granulating→conical twin screw extruder→profile extrusion mould→

cool molding die→vacuum calibration support→belt haul-off→cutter→rack→finished produce inspecting&packing

2. features:

- adopts double step production, first compounding & granulating, then extrusion

- adopts bimetallic screw barrel, high hardness, more wearable

- adopts parallel twin screw extruder for compounding & pelletizing, good exhausting effect, better plasticizing effect

3. wood plastic composite machine is applied to produce wood plastic composite products, like WPC decking, WPC door frames, WPC skirting and so on. by changing screw barrel and moulds, wood plastic composite machine also can produce both PE PP wood products and PVC wood products.

Technical Parameters:

Type	YF180	YF240	YF600	YF800
table length	4000mm	6000mm	6000mm	6000mm
Max drawing Force	20	30	40	40
hauling rubber Width/mm	180	240	600	800
Valid Length of catapilar /mm	1600	1800	2250	2500
Water Consumption/ m3h-1	2.5	4	5	6
Gas Consumption /m3h-1	8	10	12	15
Total Power/KW	24.3	27	27	34.7
Appearance Dimension	1822.8	2022.8	242.23	282.63.5

Application:

PVC profile extrusion line can making:
1, PVC windows profile
2, PVC door panel
3, PVC ceiling panel
4, PVC/WPC wall panel
5, PVC cable trunking profile
6, PVC corner bead
7, PVC edge banding strip
8, PVC imitation marble strip

Our pvc machine advantages:

1.our screw loader was set with limited swith, which can guarantee feeding enough and not feeding over.

2.extruder Driven by SIEMENS motor, speed adjusting by ABB inverter.

3.vacuum calibration table
this part machine is used to support dies, supply water and vacuum.
aluminum guider used to setting cooling & foaming dies

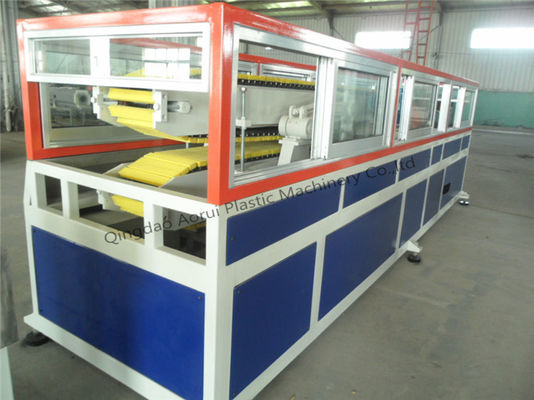

4.haul-off & cutting unit
rubber type haul-off used to support enough hauling force guarantee the whole production processing continously.
driven by SIEMENS motor, speed adjusting by ABB inverter.

5.stacker
used to storage finished profile and waiting package.
