One Screw Electric Pe Pipe Extruder Making Machine For Plastic Corrugated Pipe

Plastic Pipe Extrusion Line / PE PP PA Single Wall Double Wall Corrugated Pipe Production Line

Quick detail

1. Plastic PVC PP PE Single Wall Corrugated Pipe Production Line/Extrusion Machine

This qualified extrusion line is main for producting PE pressure pipes,discharge pipe line for chemical and food fields,protection and conduit pipes for electrie cables and communication wire,fishpond edge guardrail pipes etc.

It can process various LDPE HDPE,especially process granules directly into pipe shape.

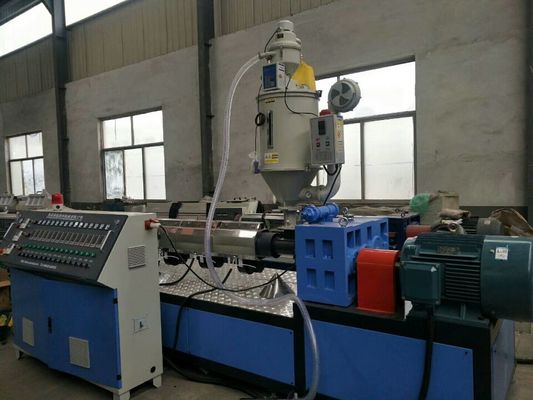

2. SJ45 single-screw extruder: 1unit
Model number: SJ45× 30A
Screw and barrel are introduced by the German Technical Manufacturing (screw efficient, with special grooves Barrel)
ABB governor
Barrel: 38CrMoAlA, nitrogen treatment, Feeding stage enforce water-cooling;
Screw: 38CrMoAlA, nitrogen treatment
Technical parameter:
Screw diameter: φ 45mm
Screw ratio(L/D): 30: 1
Antriebsmotor power: 22kW
Extrusion output: Max≈50kg/h(According to the PP-R materials, configuration and the diameter size to fix)
Reduction gearbox: High torque, low noise, Hard finishing reduction gearbox(Introduce Italy technology manufacturing)
Barrel Heating Power: 12kW(German Technical Ceramic resistor heating ring)
Barrel Cooling power and pattern: 4× 0.25kW Force-Air Cooling
Automatic dry, feeding system (model FHD25, FAL-300C)

Description:

1. Product description:

• Mainly used to produce U-PVC, C-PVC Huge Calibre Pipe for Supply an Drain Water.

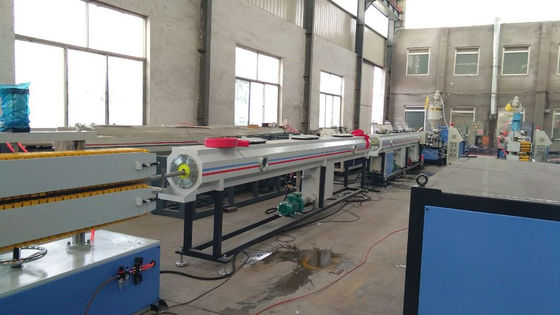

• Composed of double screw extruder, pipe die, vacuum sizing device, multi-pedrails hauling machine, cutting machine and stacker;

• Choose conical or parallel double screw extruder according to different demands

2. plastic extensible corrugation tube extruder; pp plastic corrugation pipe single screw extruder; single screw corrugated tube extruder; pe single wall corrugated pipe extruder; sj-65/30 single screw corrugated extruder; pe corrugated steel pipe making machine
