Large Pipe Diameter Plastic Pipe Extrusion Line , PE Pipe Production Line

Name: Large Pipe Diameter Plastic Pipe Extrusion Line , PE Pipe Production Line
Brand: QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1
SKU: SJ90/33
Availability: InStock

Brand Name:	AORUI
Model Number:	SJ90/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA ISO9001

Condition:

New

Screw Design:

Single Screw

Raw Material:

Model:

SJ65/33 SJ75/33 SJ90/33

Automatic Grade:

Fully Automatic

Certificate:

CE ISO9001

Port:

Qingdao

Product:

PE Water Pipe

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

plastic pipe extruder machine

plastic pipe extrusion machine

Product Description

PE Plastic Pipe Machinery , Large Pipe Diameter PE Pipe Production Line

Quick detail:

1. PE Pipe Production Line has such model, SJ65/33,SJ75/33,SJ90/33

2. Pipe diameter can from 16mm to 630mm

3. It mainly included Automatic feeder, Extruder, Vacuum water tank, spray water tank, tractor, cutter, stacker.

4. The pipe produced by this machine has long service life.

Description:

1. Large diameter high density poıyethyıene (HDpE) winding reinforced structure wall pipe is using pE structure walı as its
main structure, through by the hot winding. products from the pE materiaı grain meıting to pipe forming, realized synchro-
nous winding of high temperature melt molding inner and outer wall, production technology lead the worlďs advanced leveı
aıso determines the product excelıent technical performance.

2. Aıı kinds of pipe and pipe fittings with hot walı winding structure, pipe fittings because of its reliabıe connection performance
that can be used for advance shaııow drainage system, the drainage system wilı discharge the ıiquid asd gas mateńaı into
the rivers or sea. The winding reinforced pipe has light weight, which is safe, reliabıe connecūon, high corrosion resistance
and high ring stiĦness rate, by using winding reinforced pipe has a great advantage.

Main technical parameters of PE large diameter pipe production line

Model	Pipe specification	Extruder				total power	max output	outer dimension
Model	Pipe specification	Model	L/D	Main motor power	Heating power	total power	max output	outer dimension
wr500	225-500mm	SJ65/30	30:1	45KW	18kw	110kw	120kg/h	15χ3χ2.5m
wr1200	500-1200mm	SJ-100/30	30:1	160KW	30kw	300kw	350kg/h	20χ3χ2.5m
wr1600	1200-1600mm	SJ-120/30	30:1	220KW	40kw	500kw	800kg/h	30χ5χ4m

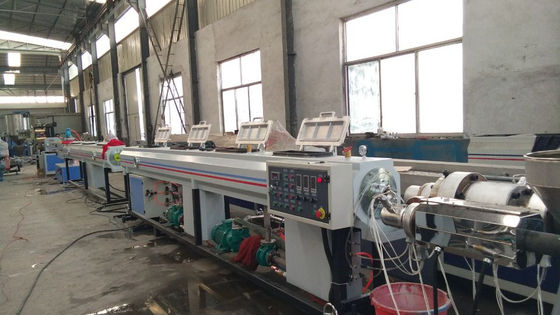

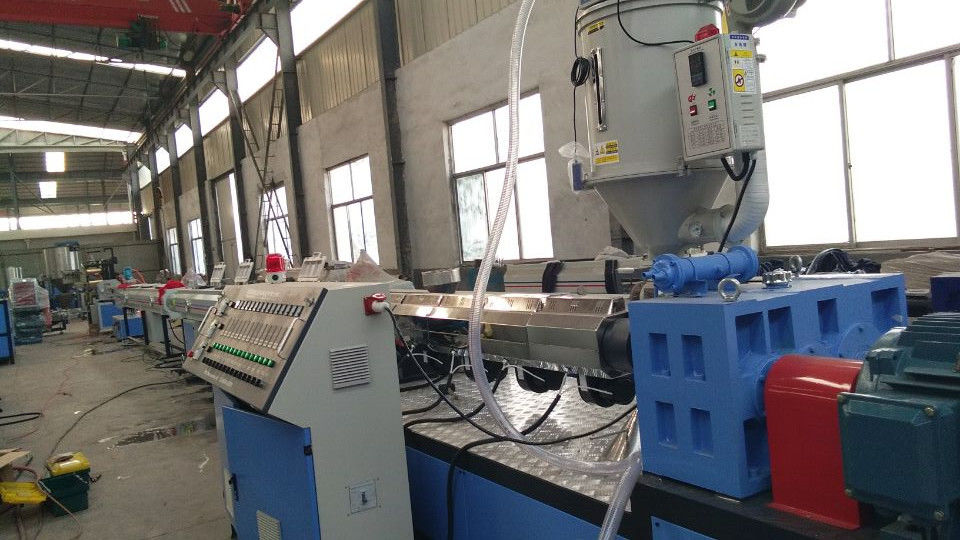

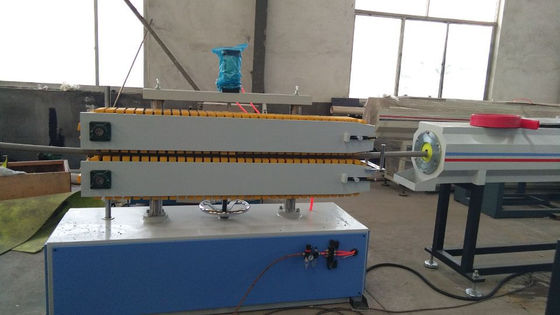

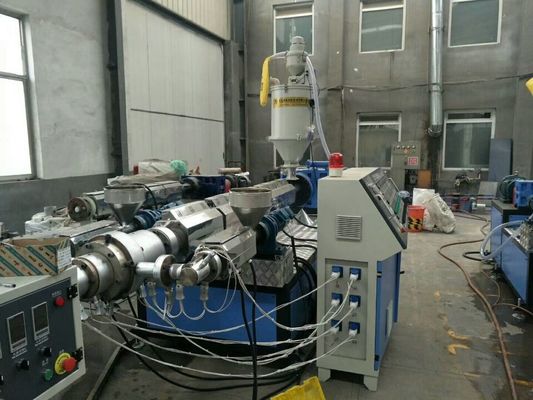

Machine pictures:

Machine Competitive Advantage:

Product Advantage
Lower weight of per-meter
Belling link, good sealing
High ring stiffness, high strength
Anti-frozen and long service life (50 years)
convenient instaııation
