Single Screw PE Water Plastic Pipe Extrusion Line CE ISO9001 Certificate

PE Water Plastic Pipe Extrusion Line , PE Pipe Making Machine

Quick detail:

1.Material: PE Granules

2.Pipe diameter produced by this machine:16-630mm

3.The basic HDPE / PE Pipe Production Line consists of

2) Single Screw Extruder

3) Extrusion Mold

4) Vacuum Tank

5) Cooling Tank

6) Haul Off Machine

7) Cutting Machine

8) Stacker ( for 110mm upto 1200mm)

9)Winding Machine ( for pipe diameter 16-63mm and 75-110mm)

10) Shredder and Crusher ( for waste pipe treatment, the recycled PE material could produce pipe again.)

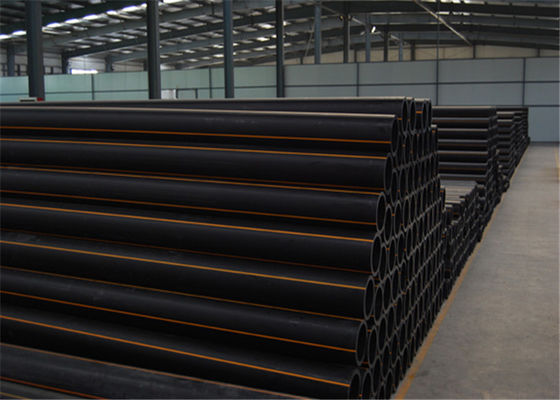

4.The pipe produced by this line can be widely used in water supply and drainage and fuel gas system.The maximum pipe diameter this line can produce is 630mm. This production line can be equipped with single screw extruder or parallel twin screw extruder. The haul off machine has three-way, four-way, six-way type. The cutting machine has blade saw cutting and planetary cutting method.

Description of PE Pipe Production Line:

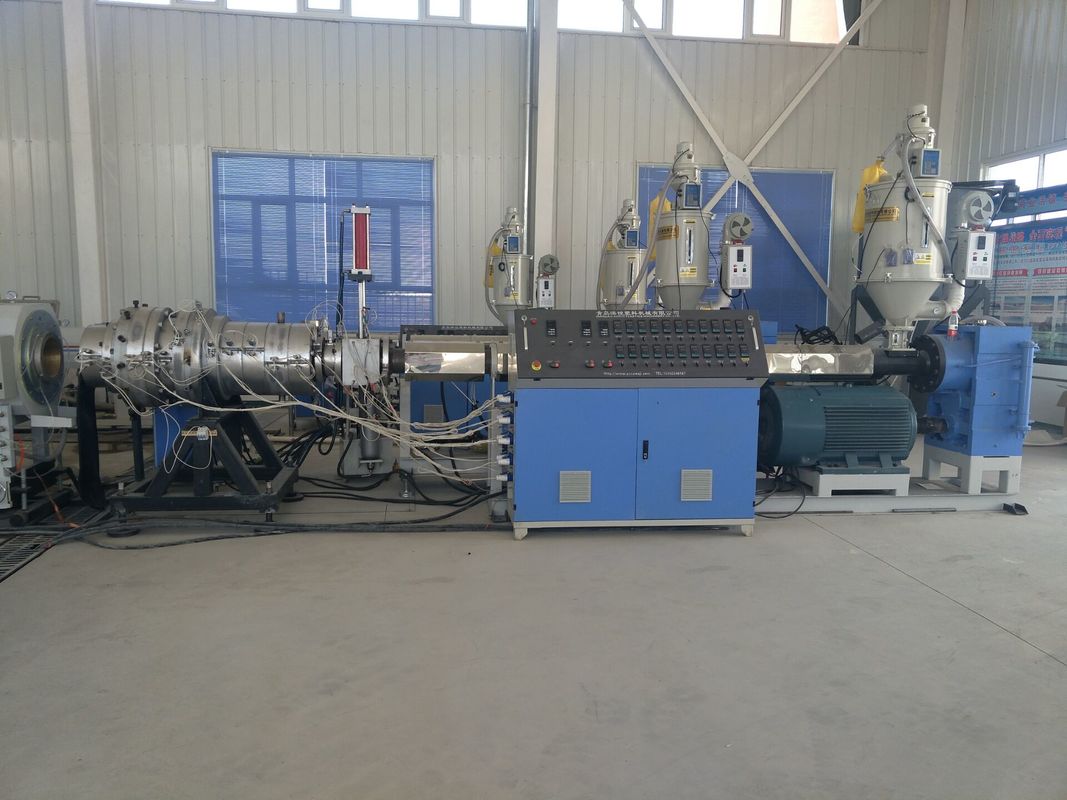

1.The production line consists of control system, screw extruder, die, setting& cooling system, haul-off machine, cutter and reversing device. Normally the production line has two extruders, one is high efficient PE specialized screw extruder, the other smaller one is used to extrude marker line.

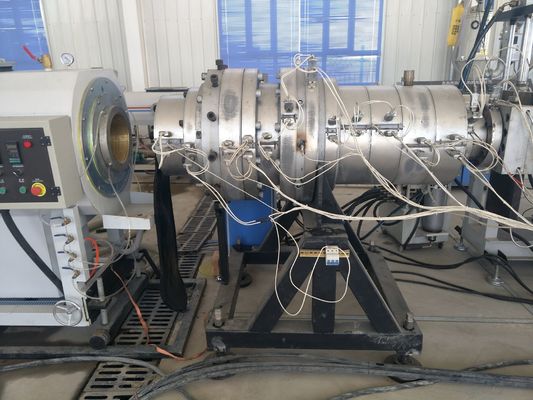

2.Mould and auxiliary machines: the die we use is basket type or spiral shunt type complex extrusion die. The advantages of such kind of die are easy adjust and even discharging. The diameter control unit is processed through unique grooving and water ring cooling to guarantee the pipe molding precision.

Technical parameters:

Application of pipe extrusion line:

Mainly used for producing pe pipe

Machine Competitive Advantage:

1. Good components: Siemens Beide main motor, ABB inverter, Eurotherm DC regulator, Siemens & Schneider low voltage electrics, Omron temperature controller

2. Good design and good outlook: We design the machine for easier operation and stable performance. The haul off machine and cutter is fully closed for safety purpose. Planetary socket is using in some machines for wire connection.

3. Our engineers and technicians have more than 10 years experince, they know pipe machine well and make good pipe machine.

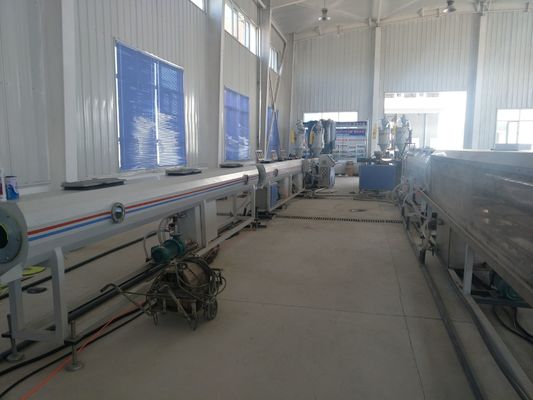

Machine pictures:
