Product Details:
|
| Condition: | New | Screw Design: | Single Screw |
|---|---|---|---|
| Automatic Grade: | Fully Autoamtic | Place Of Original: | Qingdao City |
| HS Code: | 8477800000 | Application: | Disposable |
| After-sales Service: | Engineers Availiable To Service | Voltage: | 380v 50hz |
| High Light: | meltblown machine,nonwoven fabric making machine |
||
Single Screw PP Melt Blown Machine , Non Woven Fabric Making Machine For Mask
Description of meltblown making machine:
1. The melt blown machine is based on the synthesis of high polymer as raw material, which is directly meshed after melt spinning to form a unique melt blown non-woven fabric. It is widely used in mask filter material, heat preservation filling material, medical sanitary material, wiping material, etc.
2. Melt-blown nonwoven is a kind of white,soft non-paper non-woven fabric.With PP polypropylene as the main raw material, the fiber diameter is made between a few microns and a dozen microns by Melt-blown technology. Because the fibers are so thin and disordered, it has the characteristic of three-dimensional porosity, large surface area, small aperture, high porosity,flexible structure,efficient modeling and low resistance.
3. Melt blown nonwoven plays the role of isolationand filtration in the mask, protecting the human body from the invasion of dust, bacteria and viruses,reduing a variety of infections, effective protection and human health.
4. Melt-blown nonwoven has a good ability to capture fine particles in the air such as fine dust and bacteria. Melt blown nonwoven is an excellent fiber filter material and is commonly used as a filter component in a varity of medium to high efficiency filters, such as maskes, air filters, oil-absorbent cotton and wipes.
General Parameters of meltblown making machine:
| Model | CJ-1600M | CJ-2400M | CJ-3200M |
| Width of product | 1.6M | 2.4M | 3.2M |
| Weight range | 16-200G/M2 | 16-200G/M2 | 16-200G/M2 |
| Output | 1.6-2 Ton | 2.5-3Ton | 3-4 Ton |
| Device speed | <50m/min | <50m/min | <50m/min |
| Power | 3000° -3800° /Ton | 3000° -4000° /Ton | 3200-4200° /Ton |
| Dimensions | 20M*6M*6M | 22M*8M*6M | 25M*8M*6M |
Application:
Melt blown nonwoven fabric is mainly used for medical and health materials, filtration materials, heat preservation materials, oil absorption materialsm battery diaphragm materials, environmental protection materials, clothing meterials,wiping materials,etc.
Advantage of melt blown machine:
☆ 1-class brand servo motor, stepper motor. High precision. ☆ Material inlet photoelectric detection, lower the waste.
☆ Automatic tension control
☆ Adjustable speed.
☆ Auto stop and warn when no material feed.
☆ 6 cloth rolls, 3-6 layers cloth available. ☆ Pulley at bottom of machines, convenient to install and deliver.
☆ Marker optional

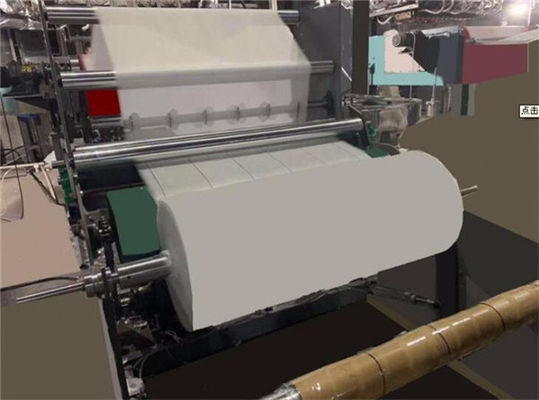

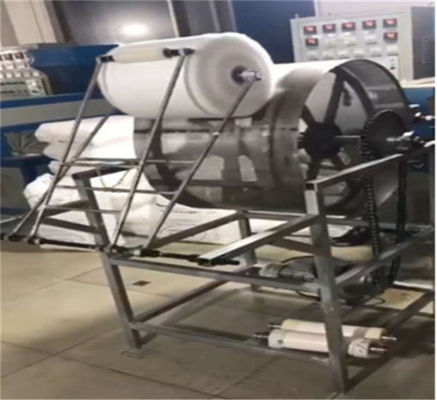

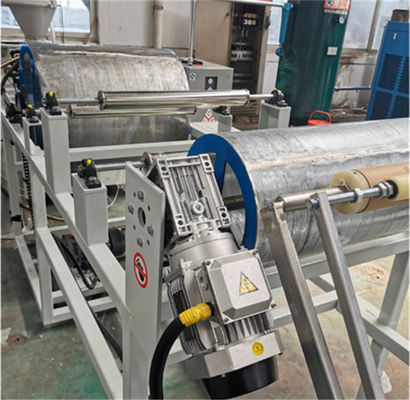

Machine display:
