Plastic PVC Pipe Extrusion Machine, Multi-Layer Architectured pvc Pipe Production Line Double Outlet

Plastic PVC Pipe Extrusion Machine, Multi-Layer Architectured pvc Pipe Production Line Double Outlet
Plastic PVC Pipe Extrusion Machine, Multi-Layer Architectured pvc Pipe Production Line Double Outlet
Plastic PVC Pipe Extrusion Machine, Multi-Layer Architectured pvc Pipe Production Line Double Outlet Plastic PVC Pipe Extrusion Machine, Multi-Layer Architectured pvc Pipe Production Line Double Outlet Plastic PVC Pipe Extrusion Machine, Multi-Layer Architectured pvc Pipe Production Line Double Outlet Plastic PVC Pipe Extrusion Machine, Multi-Layer Architectured pvc Pipe Production Line Double Outlet Plastic PVC Pipe Extrusion Machine, Multi-Layer Architectured pvc Pipe Production Line Double Outlet

Large Image :  Plastic PVC Pipe Extrusion Machine, Multi-Layer Architectured pvc Pipe Production Line Double Outlet

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJSZ65X132
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

Plastic PVC Pipe Extrusion Machine, Multi-Layer Architectured pvc Pipe Production Line Double Outlet

Description
Brand Name: Aorui Condition: New
Screw Design: Double Screw Plastic Processed: PVC
Automatic Grade: Fully Automatic Machine Color: Bule
After-sales Service: Engineers Availiable To Service\ Certificate: CE ISO9001
Warranty Time: 1 Year Motor Brand: Siemens
High Light:

PVC Conduit Pipe Extrusion Line

,

Multilayer Pipe Extrusion Line

,

CE PVC Pipe Extrusion Line

Multi-Layer Agricultral PVC Plastic Pipe Making Machine , Plastic Pipe Extrusion Process



Quick detail:

1.The pvc making machine  is composed of the SJSZ 65X132 conical twin-screw extruder , extrusion mould, vacuum sizing tank,spray water tank, tractor, cutting machine, pipe belling machine.

2.The product is pvc pipe, use pvc resin and other auxiliary material, the pipe produced by this pipe extruder line, pipe diameter can be 50-250mm.



Description of PVC Pipe Production Line:

1.Extruder:

This pvc pipe making machine has quantitative feeding device, match the extrusion amount with the feeding amount, to ensure the pipe stable extrusion.Dur to use of twin screw extruder, the feeding section has a large diameter, therefore, the heat transfer area and shear velocity of the material are relatively large,it is good for product plasticization.

Metering section has small diameter, so reduce the heat transfer area and the shear velocity of the melt, to make the melt can extrusion in low temperature. When the screw rotates in the barrel,plasticize the pvc mix material and push it to the machine head, thus to achieve compaction, melting, mixing homohrmization, in this process, it also can realise exhaust, dewatering.

Feeding device and screw device adopt frequency speed adjust, it can realize synchronous speed regulation.

2.Pipe mould:

This part is the most important part of pipe forming.

3.Vacuum sizing water tank:

adopt our company developed cooling and sizing system,special designed stainless steel water tank and sizing tank, then add recycled spray cooling, to ensure the pipe diameter size and roundness. Using speed control system, to ensure the stable of the traction speed.The vacuum water tank has manual control system.

4.Traction machine:

Adopt frequency speed regulation, using for continuous and automatically pulling the cooled and hardened pipe out of the machine head,it can save electric power.

5.Cutting machine:

Controlled by the stroke switch according to the required length, to realize automatic cutting, and delay over frame, the implementation of production line.The cutting machine to the fixed length switch signal as the instruction, complete the cutting process, in the cutting process and pipe operation to maintain synchronization, cutting process by electric and pneumatic drive to complete, the cutting machine is equipped with dust suction device, will cut the debris generated timely suction, and recovery.

6.Stacker:

The overturning action is controlled by the cylinder through the gas path. The overturning material is set up with a limit device. When the cutting saw cuts off the pipe, the pipe continues to be transported. After unloading, it will automatically reset after a delay of several seconds, and wait for the next cycle.



Technical parameter of pvc pipe extruder:

Model
Pipe diameter(mm)
Traction speed(m/min)
Production line length(mm)
Extrusion capacity(kg/h)
Installation power(kw)
UPVC63
Φ16-Φ63
1.5-15
32
100-150
65
UPVC160
Φ50-Φ160
0.8-8.0
32
180-250
94
UPVC250
Φ90-Φ250
0.35-3.5
38
300-450
170
UPVC315
Φ110-Φ315
0.3-3.0
34
300-450
198
UPVC450
Φ125-Φ450
0.3-3.0
42
650-750
258
UPVC630
Φ355-Φ630
0.2-2.0
48
650-750
399
UPVC32SS*
4*(Φ16-Φ63)
4*(1.0-10)
24
180-250
85
UPVC63S*
2*(Φ16-Φ63)
2*(1.5-15)
24
180-250
98





Application of pipe extrusion line:

pvc electrical conduit pipe extrusion machine is used to produce pvc electric conduit pipe with diamater from 16 to 63mm, which are flexible, bendable in the aspect of electric wire protecting.

GF series plastic pipe production line is mainly used in the manufacture of the plastic PVC pipes with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing.cable laying ,etc.



Machine Competitive Advantage:

1.This pvc pipe extrusion machine is good quality, high performance.

2.The main machine inverter and feeding part inverter all adopt ABB brand.

3.Temperature controller adopt Omron brand

4.It has high automtically grade, and easy to operate.

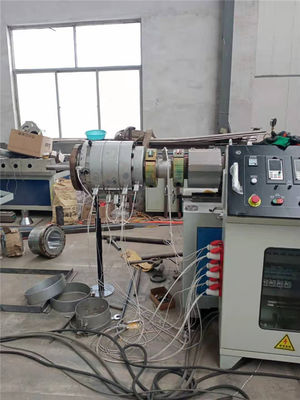

Machine pictures:

Plastic PVC Pipe Extrusion Machine, Multi-Layer Architectured pvc Pipe Production Line Double Outlet 0

Plastic PVC Pipe Extrusion Machine, Multi-Layer Architectured pvc Pipe Production Line Double Outlet 1
