Single Screw Extruder PE PP PPR Pipe Production Line

Brand Name:	AORUI
Model Number:	SJ90/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SJSZ65X132

Condition:

New

Plastic Processed:

PE PP PPR

Screw Diameter:

90mm

Place Of Original:

Qingdao City

Voltage:

380V 50HZ

Certificate:

CE Certificate

Warranty Time:

1 Year

Brand Name:

Aorui

Inverter Brand:

ABB

Motor Brand:

Siemens

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

PP PPR Pipe Production Line

Single Screw PPR Pipe Line

90mm Screw Pipe Production Line

Product Description

High Performance Single Screw Extruder Plastic PE PP PPR Pipe Production Line

Quick detail:

1.It contains single screw extruder, mould, single screw extruder (for mark line), calibrating tank, cooling tank, haul-off, cutter and stacker.

2.Raw material+master batches-Mixing-Vacuum feeder-Plastic hopper drier-Single screw extruder- Co-extruder for color string&multi layers-Mould-Vacuum calibration tank-Spray cooling water tank-Haul off-No dust cutter-double/single disc winding/stacker-Final product inspecting&packing

Description of PE Pipe Production Line:

1.PE pipe extrusion machine is mainly used for producing agricultural irrigation pipes,drainage pipes,gas pipes,water supplying pipes,cable conduit pipes etc. The pipe has some excellent features such as heating resistant,etc.

2.Our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise,Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the priecise of the pipes.Turn key solution can be provided, like laser printer , crusher,shredder, water chiller,air compressor etc. to achieve high-grade and automatic tube production.

Main technical parameters of PE pipe production line:

Pipe range	16-63mm	20-110mm	75-160mm	90-250mm	110-315mm	160-450mm	315-630mm	500-800mm
Extruder	¢45mm	¢60mm	¢75mm	¢75mm	¢90mm	¢90mm	¢120mm	¢150mm
Extruder power	AC30kw	DC75kw	DC110kw	DC110kw	DC160kw	DC160kw	DC280kw	DC335kw
Extrusion capacity	60-100kg	100-150kg	250-300kg	250-300kg	350-400kg	350-400kg	650-700kg	850-900kg
Max. production speed	10m/min	6m/min	6m/min	6m/min	3 m/min	1.2m/min	0.9m/min	0.7m/min

Application of pipe extrusion line:

It is mainly used to produce PE water pipe, gas pipe, drain pipe and so on.

Machine Competitive Advantage:

1.Long service life

2.Easy to operate

3.Spare parts for free

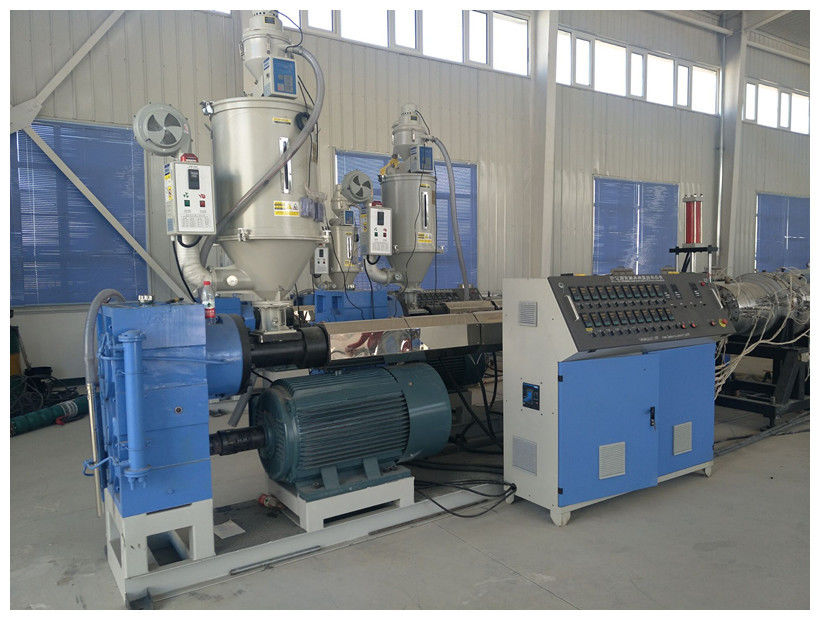

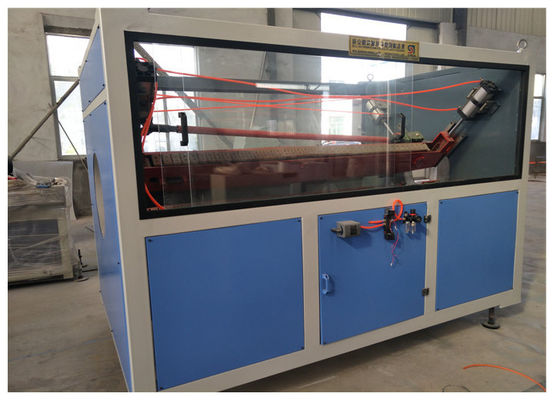

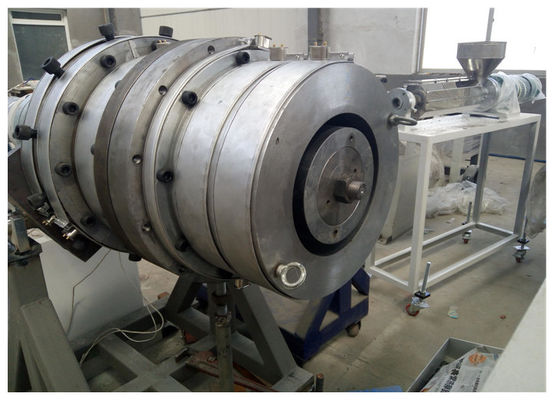

Machine pictures:

Single Screw Extruder PE PP PPR Pipe Production Line 0
