380V 50HZ 63mm 150kg/H Twin Screw PVC Pipe Extrusion Line

380V 50HZ 63mm 150kg/H Twin Screw PVC Pipe Extrusion Line

Brand Name:	AORUI
Model Number:	SJSZ65X132
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Brand Name:

Aorui

Screw Design:

Double Screw

Output:

80-150kg/h

Place Of Original:

Qingdao City

Voltage:

380V 50HZ

Warranty Time:

1 Year

Raw Material:

PVC

Inverter Brand:

ABB

Motor Brand:

Siemens

Automatic Grade:

Fully Automatic

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

63mm PVC Pipe Machine

150kg/h PVC Pipe Extrusion Line

380V 50HZ Pipe Extrusion Line

Product Description

High Quality PVC Plastic Pipe Extrusion Line , Twin Screw Extruder PVC Pipe Machine

Quick detail:

1.PVC plastic pipe production line is mainly used for producing the plastic PVC pipes with various pipe diameters and wall thickness; the plastic pipes are used for the water supply and drainage of agriculture, the plumbing and drainage of construction, cable laying etc.

2.PVC pipe process flow

Feeder → Mixer → Feeder → Extruder → Mould → Vacuum tank → Haul-off → Printer → Cutting → Stacker

Description of PE Pipe Production Line:

1.The extruder and haul-off machine adopt the imported AC frequency control device.

Haul-off machine of different specifications, such as two claws, three claws, four claws, six claws etc are designed for different requirements.
2. It is additionally attched with length measuring apparatus and thickness increasing device.
The unit is of reliable performance and high production efficiency.

3. The raw material is pvc powder.
As the type of machine, we will provide according to the diameter of pipe which you want to produce.

Main technical parameters of PE pipe production line:

Main extruder	SJSZ-51/105	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Main motor power(KW)	22	37	55	110
Pipe diameter(mm)	16- 63mm	75-160mm	200-400	400- 630
Hauling speed(m/min)	0.8-10	0.5-5	0.3-4	0.2-3
Max. Capacity(kg/h)	120	260	400	600
Total power(KW)	89	95	135	255

Application of HDPE pipes
The advantage of the lines is the reliable performance and high production efficiency.

Machine Competitive Advantage:
1.Long service life
2.Easy to operate
3.Spare parts for free

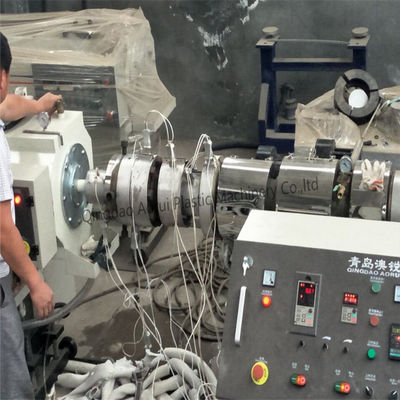

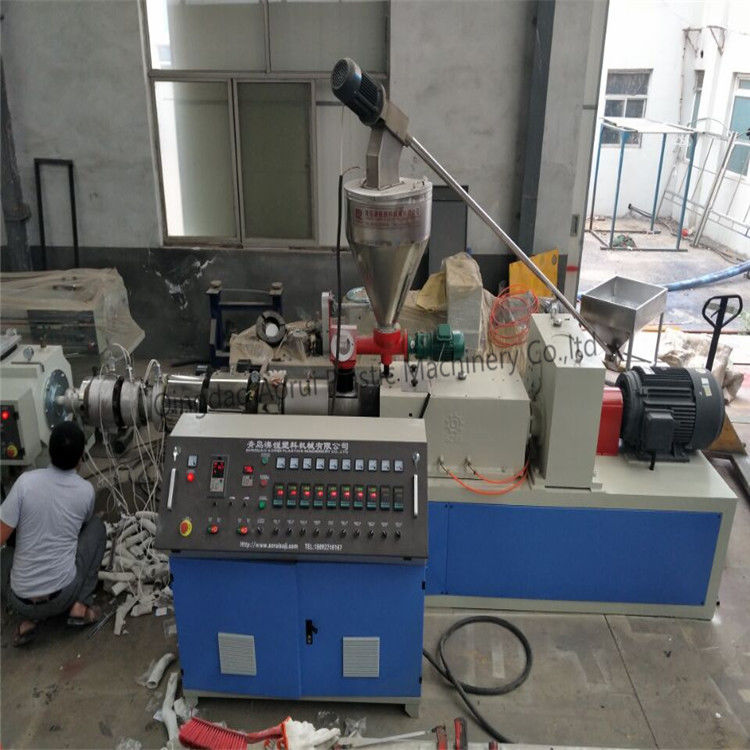

Machine pictures:
380V 50HZ 63mm 150kg/H Twin Screw PVC Pipe Extrusion Line 0
