Product Details:
|
| Model Number: | SJSZ51X105 | Condition: | New |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Machine Name: | Aorui |
| Motor Brand: | Siemens | Place Of Original: | Qingdao City |
| Machine Color: | Bule | Voltage: | 380V 50HZ |
| Certificate: | CE ISO9001 | Package: | Film Packgae |
| High Light: | 315mm PVC Pipe Making Machine,25000N PVC Pipe Making Machine,30M PVC Pipe Extrusion Line |
||
Twin Screw Extruder PVC Pipe Making Machinery With CE Certificate
Quick detail:
1.PVC pipe production line is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.
2.This set is composed of the conical twin-screw extruder, vacuum calibration tank, printer, haul-off, cutter, stacker, etc.
Description of PE Pipe Production Line:
1.SJSZ series plastic extruder/ extrusion machine are special equipments which can extrude and mold by using various kinds PVC powders. Equipped with different kinds of molds and auxiliary machines, it can produce various PVC pipes, profiles, sheets, plates, bars and granulation.
2.This kind of plastic conical double screw extruder has widely use, it is specialized for all kinds of plastic extrusion.
3.Major parts of whole production line:
1- SRL-Z500/1000 PVC Mixing Unit
2- SJSZ-80/156 Conical Twin Screw Extruder
3- 110-315mm PVC pipe extrusion tool
4- 6meter Vacuum Forming Tank
5- 4 belts Pipe Haul Off Machine
6- Planet Pipe Cutting Machine
7- SGK-315 Automatic Pipe Belling Machine
Major parts brands as following:
Motors: SIEMENS/SIMO brand
Temperature controllers: OMRON or RKC brand
Inverters: ABB/DELTA brand
Contactors: Schneider brand
PLC: SIEMENS brand
Gear box: GUOMAO brand
Technical parameters of PVC pipe extrusion line
| Item | PVC63 | PVC160 | PVC250 | PVC315 | PVC450 | PVC630 |
| Pipe dia. (mm) | 16-63 | 75-160 | 125-250 | 180-315 | 200-450 | 355-630 |
| Vacuum tank length(m) | 6 | 6 | 6 | 9 | 9 | 9 |
| Pressure of vacuum | 0.03-0.80 | |||||
| Max hauling force(N) | 10000 | 15000 | 20000 | 25000 | 30000 | 50000 |
| Hauling speed(m/min/max) | 10 | 6 | 4 | 3 | 2 | 1.4 |
| Refilled water volume (m3/h) | 5 | 6 | 7 | 8 | 9 | 12 |
| Production Line Length(m) | 20 | 22 | 30 | 30 | 36 | 42 |
Machine Competitive Advantage:
1.Long service life
2.Easy to operate
3.Spare parts for free

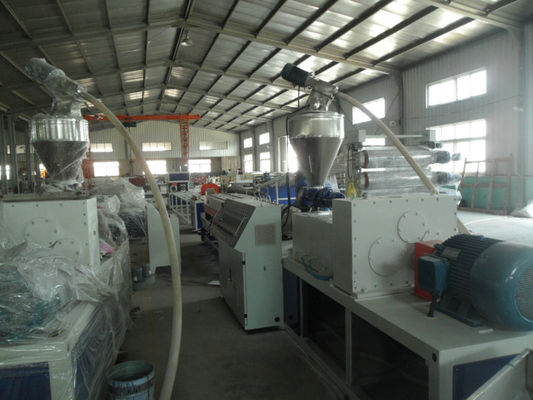

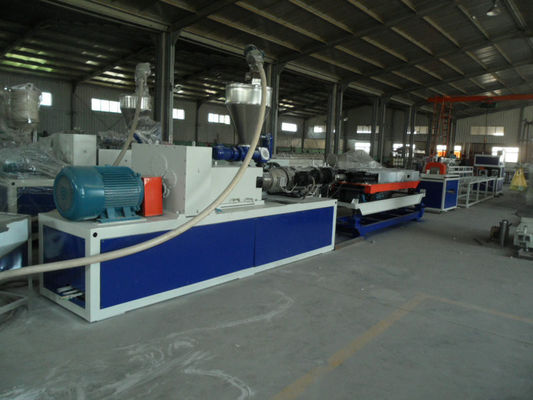

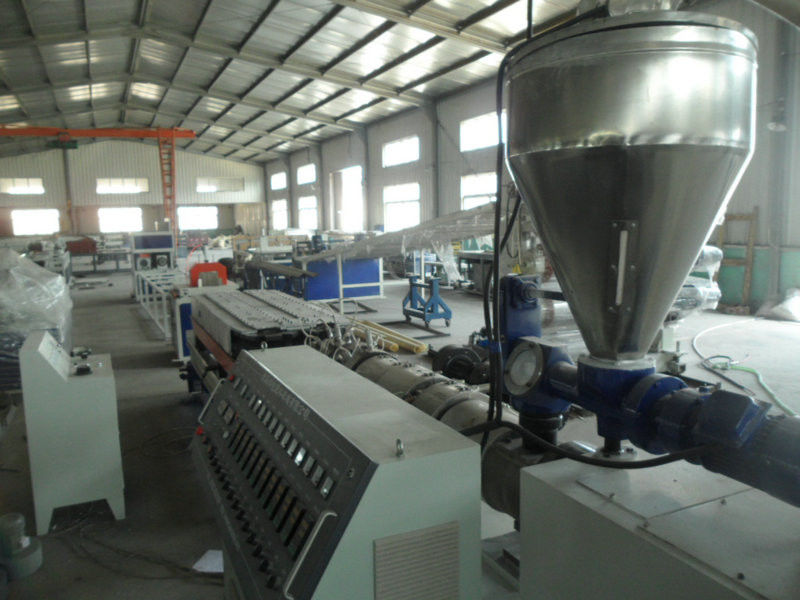

Machine pictures:
