Abrasion Resistant Dia 14mm PVC Pipe Extrusion Line

Abrasion Resistant Dia 14mm PVC Pipe Extrusion Line

Brand Name:	AORUI
Model Number:	SJSZ65X132
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Condition:

New

Automatic Grade:

Fully Automatic

Type:

PVC Pipe Production Line

Brand Name:

Aorui

Place Of Original:

Qingdao City

Warranty:

1 Year

Certificate:

CE Certificate

After-sales Service:

Engineers Availiable To Service

Raw Material:

PVC

Motor Power:

37kw

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

Abrasion Resistant PVC Pipe Machine

14mm PVC Pipe Extrusion Line

38CrMnAl Screw Pipe Extrusion Line

Product Description

PVC Fiber Reinforced Pipe Production Line , Twin Screw Plastic Pipe Extrusion Line

Characteristics of PVC Fiber Reinforced Hose Pipe:

Qualified high-strength fiber-wire, resistance to high pressure

Corrosion and abrasion resistant and Anti-UV, with much longer life

Without odor, free of harmful plasticizers and heavy metals

Light and flexible, convenient for moving

Description of PE Pipe Production Line:

1.PVC fiber reinforced pipe production line has a good market in worldwide. We can supply PVC fiber reinforced hose production line with competitive price and high quality.
2.PVC fiber reinforced pipe production line /PVC fiber reinforced hose machine is the special product developed by our company. PVC fiber reinforced hose production line is mainly used to manufacture fiber-reinforced hose for fluid conveying.
3.PVC fiber reinforced pipe can be used as pipelines to conveying air, water, gas, oil and other kind of fluid and gas

Process Flow of soft PVC garden hose production line:

Raw material+additive→mixing→granulating→conveying feeding→single screw extruder→extruding mould→spray cooling water tank→belt haul-off→fiber winder→warm-up oven→single screw extruder→mould→spray cooling water tank→belt haul-off→meter measure→winder→finished product inspecting&packing.

Technical parameters of PVC fiber reinforced pipe making machine:

Model	Screw Diameter(mm)	L/D	Screw Material	Main Motor(KW)	Total Power(KW)	Central Height(mm)	Pipe Diameter(mm)
SJ-45/55	45/55	30	38CrMnAl	7.5/11	35	1000	6-14
SJ55/65	55/65	30	38CrMnAl	11/15	46	1000	16-38
SJ75/90	75/90	30	38CrMnAl	18.5/37	80	1000	50-102

Application of pvc fiber reinforced pipe:

It is widely used to convey the pressure or corrosive gas and liquid. Now it is widely used in such fields as mechanical engineering, coal mine, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas cylinder). At the present time, it is widely used as the irrigation pipe to the garden and lawn.

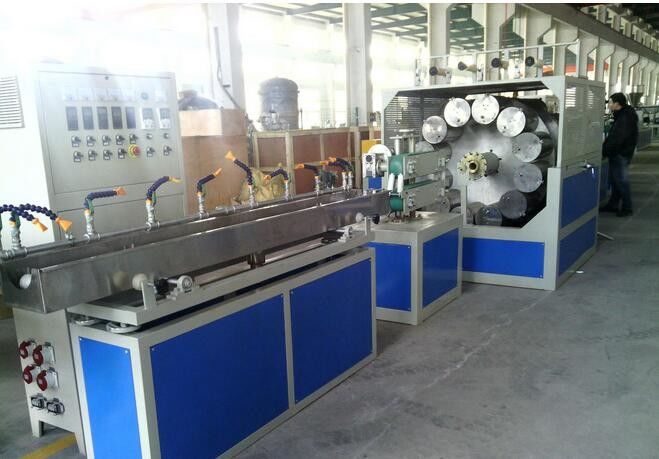

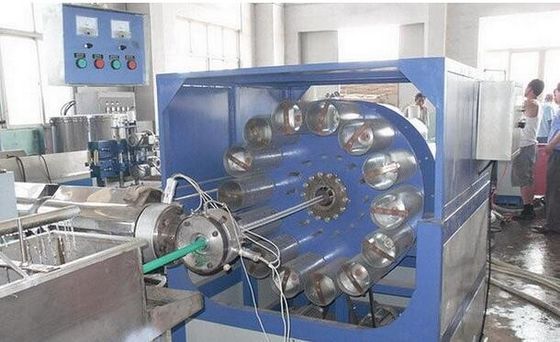

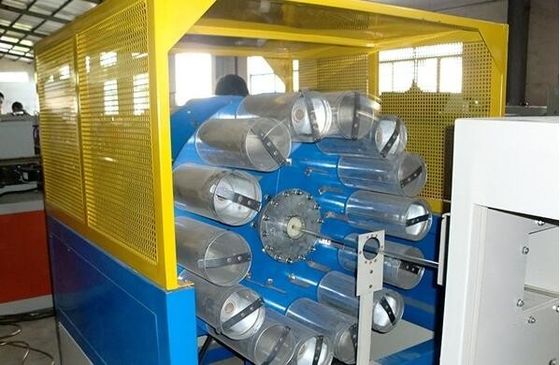

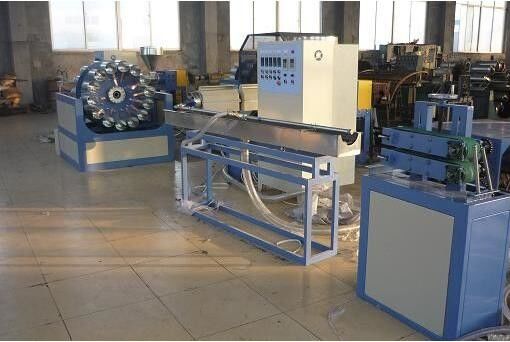

Machine pictures:

Abrasion Resistant Dia 14mm PVC Pipe Extrusion Line 0
