22kw PE Carbon Spiral Reinforcing Pipe Production Line

Brand Name:	AORUI
Model Number:	SJSZ65/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Model Number:

SJ65/33

Condition:

New

Plastic Processed:

Application:

Pe Carbon Spiral Pipe

Voltage:

380V 50HZ

Brand Name:

Aorui

Certificate:

CE Certificate

Warranty:

1 Year

Power:

22kw

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

22kw PE Pipe Extrusion Line

150kg/h Reinforcing Pipe Production Line

110mm PE Pipe Production Line

Product Description

PE Carbon Spiral Reinforcing Pipe Production Line , Plastic Pipe Extrusion Line

Quick details:

1.Single screw extruder specially used for polyolefine material possess effective plasticizing effect and extrusion speed

2.The special detached type compounding screw an die head with spiral structure & reasonable channel are application to produce pipes with smooth inside and outside face.

3.unique calibration and cooling mode is capable of produce pipe with diameter from 50mm to 200mm, production speed is up to 0.4-1.5m/min

4.All kind of polyolefine material, multi-layers spiral strengthen pipe can be co-extruded, recycled material can be used in production.

Description of PE Carbon Spiral Pipe Production Line:

1.PE carbon spiral pipe production line PE C carbon spiral pipe production line because of its special shape structure and raw material composition, with high strength, toughness, crimp, corrosion resistance, light weight, long life, not easy to deformation and many other features.

2.Cast iron pipe, rubber pipe and PVC management to replace products, widely used in agricultural irrigation (drainage), cable protection, ventilation and exhaust fields.

3.Production line features: self - developed high - efficiency extruder. Novel shape compact structure, production and marketing high energy consumption. The pre-stressed vacuum spiral pipe production line is a newly developed second-generation pre-stressed pipe material on the extrusion of bellows pipe production line, which is simple in production, low in price, convenient in construction, no pipe fittings connection is needed, and has better durability and fatigue resistance.

Technical parameter

Model number	PE16/63	PE20/110	PE50/160	PE75/250
Pipe diameter (mm)	16-63	20-110	50-160	75-250
Max output (kg/hr)	150	200	350	350
Production rate (m/min)	1-15	1.2-12	0.6-8	0.5-4
Extruder model	SJ65/30	SJ65/33	SJ75/33	SJ75/33
Installation power	85kw	110kw	125kw	180kw
Layout dimension	35x3x2m	38x3.1x2.2m	38x3.1x2.2m	40x3.2x2.4m

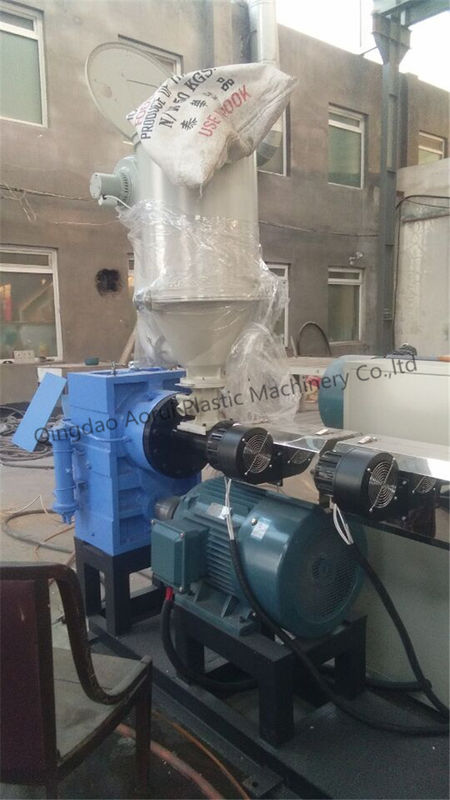

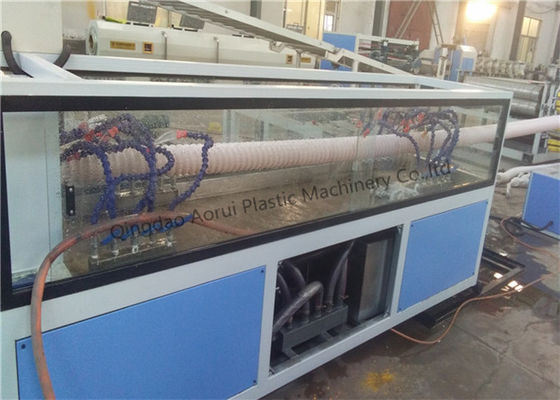

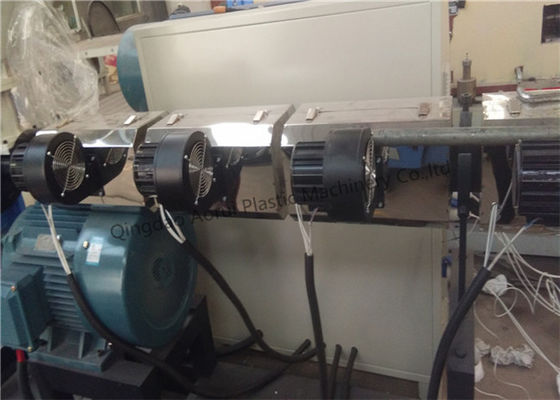

Machine pictures:

22kw PE Carbon Spiral Reinforcing Pipe Production Line 0
