PLC LLDPE Pipe Single Screw Extruder Recycling Pelletizing

PLC LLDPE Pipe Single Screw Extruder Recycling Pelletizing
PLC LLDPE Pipe Single Screw Extruder Recycling Pelletizing PLC LLDPE Pipe Single Screw Extruder Recycling Pelletizing

Large Image :  PLC LLDPE Pipe Single Screw Extruder Recycling Pelletizing

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJ65 SJ75 SJ90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

PLC LLDPE Pipe Single Screw Extruder Recycling Pelletizing

Description
Brand Name: Aorui Condition: New
Warranty Time: 1 Year Screw Design: Single Screw
Voltage: 380V 50HZ Motor Power: 37kw
Application: Plastic Extrusion Certificate: CE Certificate
Inverter Brand: ABB Motor Brand: Siemens
High Light:

LLDPE Pipe Single Screw Extruder

,

PLC Single Screw Extruder

,

Pelletizing Single Screw Extruder

SJ65/33 Plastic Single Screw Extruder , Single Screw Plastic Extruder With CE Certificate


Brief introduction:

1.Single Screw LLDPE/LDPE/HDPE/PPR/PP/PE Pipe/Sheet/Profile/Granule/Pellet Making Recycling Pelletizing Plastic Extruder Machine.

2.The machine design is advanced, production capacity is high, plasticization is good, and energy consumption is low. The extruder adopts hard gear surface for transmission. It has advantages of low noise, smooth operation, large loading, long use-life and so on.

Characteristics of the plastic single screw extruder:

1.The extruder is fixed with fault protection, overload alarm, screw core constant temperature oil circulation system, barrel oil cooling system, vacuum exhaust pipe and ration feeding device.
2.There are many kinds of electric control system for selection (for example: PLC auto control system). It is driven by DC motor. Through inverter or DC speed regulator it can achieve stable stepless speed adjustment, high precision and energy saving. Intelligent dual display digital temperature controller is used to improve control precision and temperature fluctuation.

3.This water-cooling single screw plastic pellet making machine is single stage plastic regenerative pelletizer, which is suitable for many kinds of plastic waste materials recycling and making pellets, such as PP, HDPE, LDPE, LLDPE Film and clean woven/nonwoven bag materials, etc. The film can be pressed in the compressor and then be pelletized.

4.Process flow:
Conveying feeding→ Metal detector →Film Agglomerator /Compactor →Degassing single screw extruder →Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.


Main Technical Parameter:

Product Name
Screw diameter
(mm)
L/D
Motor power
kW
output
Torque(N.M)
Screw speed
(r/min)
Max output
(kg/h)
SJ25/25
25
25:1
1.5
175
100
3.4
SJ30/25
30
25:1
5.5
410
125
12.5
SJ45/25
45
25:1
7.5
580
100
20
SJ45/30A
45
30:1
15
1000
145
40
SJ45/30C
45
30:1
30
1600
185
120
SJ65/25
65
25:1
22
1500
100
60
SJ65/30
65
30:1
30
3600
105
80
SJ65/30
65
30:1
45
4800
120
120
SJ75/32
75
32:1
90
7200
120
350
SJ90/25
90
25:1
55
4400
120
150
SJ90/30
90
30:1
90
9200
94
250
SJ90/32
90
32:1
160
13000
120
500
SJ120/25
120
25:1
90
9200
94
350
SJ120/30
120
30:1
110
16000
94
350
SJ120/33
120
33:1
250
25000
94
800
SJ150/25
150
25:1
110
35000
40
320
SJ150/30
150
30:1
132
36000
50
350
SJ150/34
150
34:1
315
32000
75
1100
SJ200/25
200
25:1
160
50000
30
500
SJ200/30
200
30:1
200
60000
40
550
SJ200/34
200
34:1
400
55000
75
1500

Application of plastic extruder:
SJ series of single-screw extruder can apply to produce such products with thermoplasticity as pipes of PP, PE, PS, ABS, PMMA, PVC, as well as plates, sheets, rods, profiles and plastic pellets. According to different raw materials and product specifications, screws with different ratios of length diameter and compression, barrels of different structures and proper driving devices are adopted so as to make products with high quality.



Machine display:

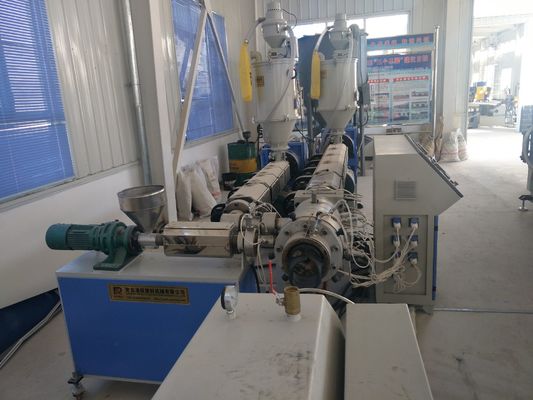

PLC LLDPE Pipe Single Screw Extruder Recycling Pelletizing 0

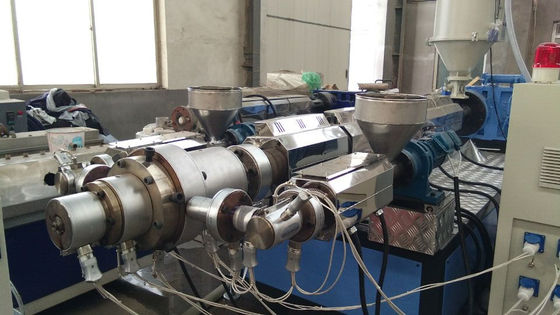

PLC LLDPE Pipe Single Screw Extruder Recycling Pelletizing 1
