110kw Double Screw PVC Pipe Extrusion Line 120Kg/H

110kw Double Screw PVC Pipe Extrusion Line 120Kg/H
110kw Double Screw PVC Pipe Extrusion Line 120Kg/H
110kw Double Screw PVC Pipe Extrusion Line 120Kg/H 110kw Double Screw PVC Pipe Extrusion Line 120Kg/H 110kw Double Screw PVC Pipe Extrusion Line 120Kg/H 110kw Double Screw PVC Pipe Extrusion Line 120Kg/H

Large Image :  110kw Double Screw PVC Pipe Extrusion Line 120Kg/H

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJSZ65X132
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

110kw Double Screw PVC Pipe Extrusion Line 120Kg/H

Description
Model Number: SJSZ65X132 Condition: New
Screw Design: Double Screw Application: Pvc Pipe
Warranty Time: 1 Year Certificate: CE Certificate
Temperature Controller: Omron Voltage: 380V 50HZ
Plastic Processed: PVC Motor Power: 37-110kw
High Light:

Double Screw PVC Pipe Extrusion Line

,

110kw PVC Pipe Extrusion Line

,

120Kg/H PVC Pipe Extrusion Line

PVC Double Pipe Production Line, One out of Two Plastic PVC Pipe Extrusion Line


Brief introduction:

1.The production line is developed with the advanced technology of West Europe by our conpany. The main machine is SJSZ 51/105 or SJSZ65/132 conical twin screw extruder is equipped with double-tube single-control stainless steel spraying calibration,it avoids waste condition



2.when one tube is adjust and the other one is affected The auto single-control double drawing machine and cutting machine are comined with the front double calibration technology to make operation more flexible . Let you enjoy economic benefit which is brought by seprate-control double- tube extrusion.



Description of pvc pipe production line:



1.This production line adopt 65x132 extruder, pvc double cavity mould, double pipe sizing forming table, double pipe tactor and stacker.

2.Extruder adopt pvc powder raw material conical twin screw extruder, it has such charactritics, low consumption, high output, good plasticization effect. The extruder equipped with rated feeding system, it can improve the precise of feeding, so to ensure the quality of pipe.

3.Pipe mould adopt spring structure, the advantage of this structre is can ensure the material extrusion even, also can ensure the even of pipe wall thickness.

4.Vacuum pump adopt water ring type design, it has four point spray cooling,improved the cooling effect.Meanwhile to ensure the roundness of the pipe. Water level control adopt temperature and liquid level dual channel control, After vacuum shaping, the design of submerged circulating water cooling is adopted.

5.The tractor adopt belt traction design, adopt frequency control system, the speed of traction is improved.

6.The whole production line adopts Schneider contactor, Omron temperature controller and Zhejiang zhoushan screw and barrel, then to ensure the quality of the machine.



Technical parameter:

Pipe range(mm) Screw diameter(mm) Capacity(Kg/h) Main motor power(kw) line length(m)
16-40 51/105 80-120 18.5 22
16-63 65/132 120-250 37 25

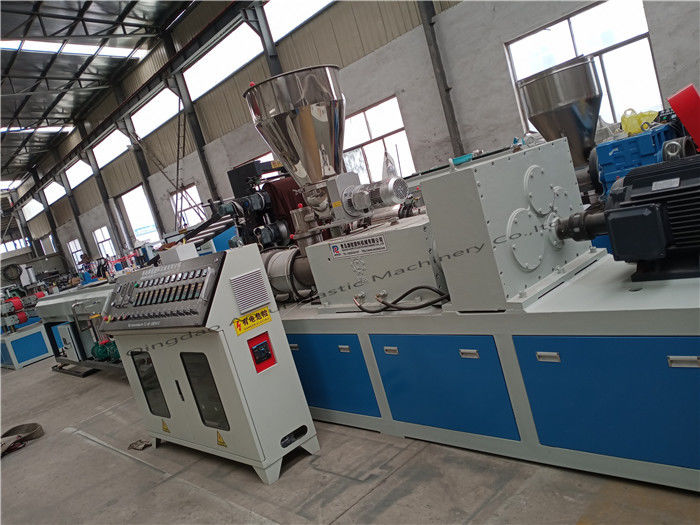

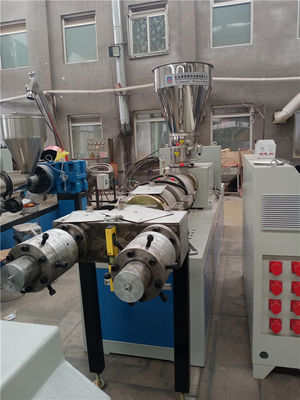

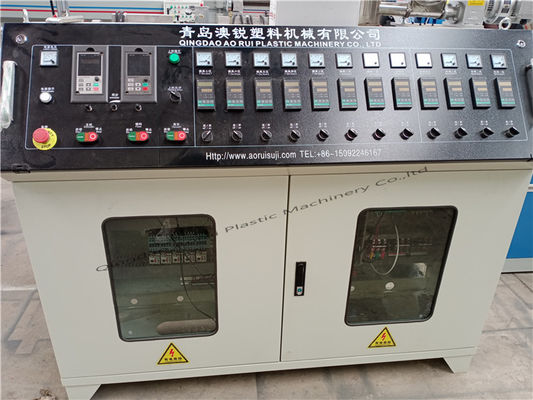

Machine pictures:

110kw Double Screw PVC Pipe Extrusion Line 120Kg/H 0



110kw Double Screw PVC Pipe Extrusion Line 120Kg/H 1
