Double Cavity PVC Plastic Extruder Machine 10m/Min Hauling

Double Cavity PVC Plastic Extruder Machine 10m/Min Hauling
Double Cavity PVC Plastic Extruder Machine 10m/Min Hauling
Double Cavity PVC Plastic Extruder Machine 10m/Min Hauling Double Cavity PVC Plastic Extruder Machine 10m/Min Hauling Double Cavity PVC Plastic Extruder Machine 10m/Min Hauling

Large Image :  Double Cavity PVC Plastic Extruder Machine 10m/Min Hauling

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJSZ65X132
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

Double Cavity PVC Plastic Extruder Machine 10m/Min Hauling

Description
Brand Name: Aorui Plastic Processed: PVC
Condition: New Screw Design: Double Screw
Voltage: 380V 50HZ Warranty Time: 1 Year
Certificate: CE Certificate Temperature Controller: Omron
Motor Power: 37kw Automatic Grade: Fully Automatic
High Light:

Double Cavity PVC Plastic Extruder Machine

,

10m/Min Hauling Plastic Extruder Machine

,

37kw Plastic Extruder Machine

PVC Double Pipe Extrusion Production Line , PVC Double Pipe Plastic Pipe Extrusion Line


Brief introduction:

1.PVC Pipe Production Line main used for producing various diameter pvc pipe. The pipe produced are widely used in agricultural water supply and drainage,and drainage construction water supply, cable laying and other aspects,

2.This pvc double pipe production line can produce two pvc pipes at the same time, it improved the output, easy to operate.



Description of pvc pipe production line:

1.PVC pipes produced by pvc two pipe machine main used to construction conduit pipe, electical pipe etc.Main machine adopt conical twin screw extruder, doule pipe mould, adopt double pipe vacuum technique, spray cooling, equipped with independently control structure traction device and sychronization cutter.

2.PVC pipe production line adopt conical twin screw extruder and high speed sizing sleeve, it can accoding to pipe specification to adjust the speed of vacuum sizing, it has good cooling effect and good roundness of pipe.

3.The material of vanccum tank is stainless steel, not easy to deformation. The vacuum pump adopt domestic famould brand, so it has high vacuum, and low noise.

4.All electrical parts are famous brand, the motor brand is Siemens, frequency inverter brand is ABB,the contactor brand is schneider, temperature controller brand is Omron.


TECHNICAL PARAMETER of PVC pipe making machine :

model PVC63 PVC160 PVC250 PVC315 PVC450 PVC630
pipe dia (mm) φ16-φ63 φ75-φ160 φ125-φ250 φ180-φ315 φ200-φ450 φ355-φ630
vacuum tank length(mm) 6000 6000 6000 6000 6000 6000
Vacuum degree (Mpa) -0.03-0.08 -0.03-0.08 -0.03-0.08 -0.03-0.08 -0.03-0.08 -0.03-0.08
Max.traction (N) 10000 15000 20000 25000 30000 50000
hauling speed(m/min/max) 10 6 4 3 2 1.4
working hauling length(mm) 1000 1500 1500 1500 1800 1600
compressed air (m3/h) 0.4 0.6 1.0 1.2 1.5 2.0
water comsuption (m3/h) 5 6 7 8 9 12
Total length of line (m) 20 22 30 30 36 42



Application:

Products are widely used in residential, shopping malls, hospitals, stadiums and villages, such as water supply, drainage, electrical wiring layout of the pipe production field.

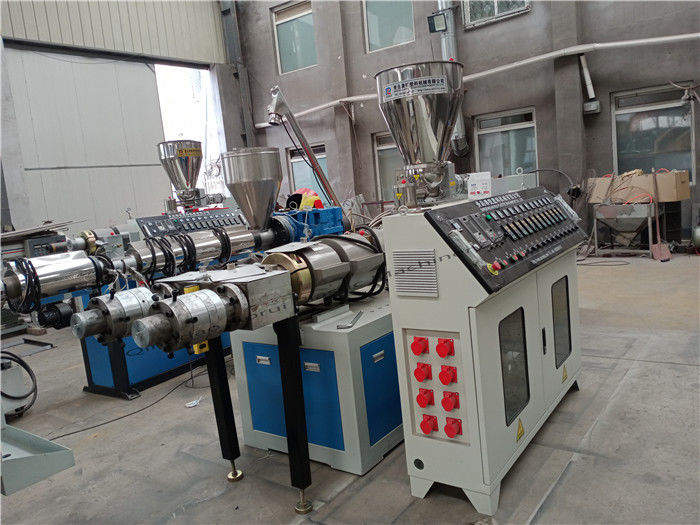

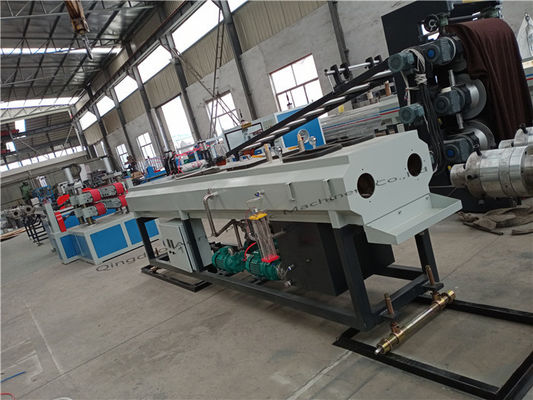

Machine display:

Double Cavity PVC Plastic Extruder Machine 10m/Min Hauling 0



Double Cavity PVC Plastic Extruder Machine 10m/Min Hauling 1
