Intelligent PLC 300kg/H Plastic Pipe Extrusion Line 90kw

Brand Name:	AORUI
Model Number:	SJSZ51x105
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Plastic Processed:

PVC

Condition:

New

Screw Design:

Double Screw

Automatic Grade:

Fully Automatic

Place Of Original:

China

Brand Name:

Aorui

Certificate:

CE Certificate

Voltage:

380V 50HZ

Capacity:

250-300kg/h

Motor Power:

22-90kw

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

300kg/H Plastic Pipe Extrusion Line

PLC Plastic Pipe Extrusion Line

90kw Plastic Pipe Extrusion Line

Product Description

PVC Plastic Pipe Extrusion Line , PVC Double Output Pipe Production Line With Two Water Tank

Brief introduction:

This production line main use for producing two pvc pipe at the same time, the pipe produced by this production line main used to electric pipe, adopt double pipe extrusion, it has high efficiency, and easy to use.

Description of pvc twin pipe production line:

The features of pvc pipe production line:

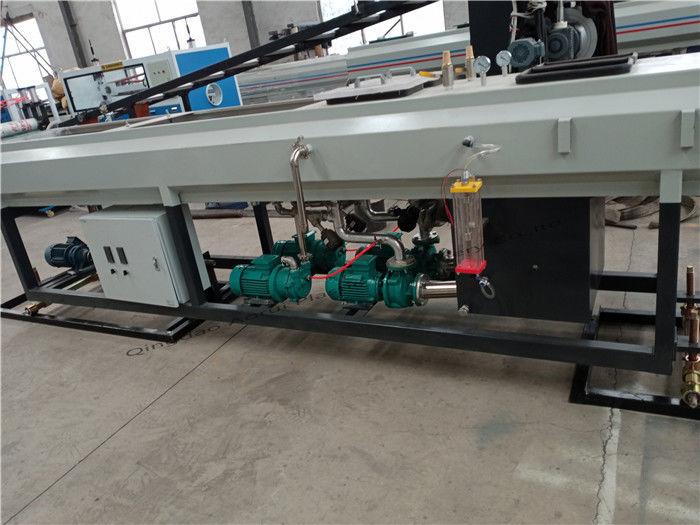

1.Good design vacuum water tank and water system, all material adopt stainless steel.

2.Quick vacuum control system to ensure vacuum stability.

3.Efficient spray cooling, rapid and uniform cooling and shaping.

4.Automatic water level control.

5.According to pipe requirement to design one vacuum and two vacuum room.

6.Extruder World famous brand electrical component such as Siemens, Schneider, ABB etc

•High torque gearbox with adopts NSK/SKF bearing;

•Siemens/WEG original motor achieved global after service;

• Bimetallic screw and barrel;

• Intelligent PLC controlling system with human-friendly interface.

Main Technical standards

model	SJG-Z65×33-63	SJG-Z90×33-160
pipe dia(mm)	Φ16-Φ63	Φ75-Φ160
screw dia(MM)	Φ65	Φ65
screw L/D ratio	33	33
screw rotation speed (r/min)	10-120	10-120
production capacity(kg/h)	30-150	50-200
hauling off speed(m/min)	15	4

Application:

Products are widely used in residential, shopping malls, hospitals, stadiums and villages, such as water supply, drainage, electrical wiring layout of the pipe production field.

Competitive advatnages:

1.Easy to operate and maintenance

2.Short delivery time

3.All electric parts are adopt famous brand
