Spring Style 90mm PVC Pipe Extrusion Machine 200kg/H 6m/Min

Spring Style 90mm PVC Pipe Extrusion Machine 200kg/H 6m/Min
Spring Style 90mm PVC Pipe Extrusion Machine 200kg/H 6m/Min
Spring Style 90mm PVC Pipe Extrusion Machine 200kg/H 6m/Min Spring Style 90mm PVC Pipe Extrusion Machine 200kg/H 6m/Min

Large Image :  Spring Style 90mm PVC Pipe Extrusion Machine 200kg/H 6m/Min

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJSZ51x105
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

Spring Style 90mm PVC Pipe Extrusion Machine 200kg/H 6m/Min

Description
Place Of Original: China Screw Design: Double Screw
Condition: New Motor Brand: Siemens
Feeder Style: Spring Style Temperature Controller: Omron
Inverter Brand: ABB Automatic Grade: Fully Automatic
Certificate: CE Certificate Warranty Time: 1 Year
High Light:

90mm PVC Pipe Extrusion Machine

,

200kg/H PVC Pipe Extrusion Machine

,

6m/Min PVC Pipe Extrusion Machine

16-90mm PVC Double Pipe Extrusion Machine , SJSZ51X105 Plastic Double pvc Pipe Extrusion Line



Brief introduction:

PVC threading pipe extrusion line is mainly used to produce all kinds of PVC pipes, which are widely used in water supply and drainage of agriculture land and buildings, and cable laying. This production line is composed of conical twin screw extruder, and vacuum sizing device, traction machine,cutting machine and roll over stand.



Description of pvc twin pipe production line:

1.PVC Double Pipe Production Line (PVC four pipe production line) uses a conical twin screw extruder as the host, equipped with different auxiliary machine, main used in the production of two pvc pipes or foure pvc pipes at the same time, the pvc pipe produced by this machine main used for electrician threading pipe.

2.The production line fully use of the extrusion capacity of the extruder, it can up to the highest quality when produce small diameter pipe, and the production efficiency is high, easy to operate.

3.The whole machine has reasonable structure, stable performance, it can realise the synchronous speed regulation, this pvc pipe production line adopt vacuum sizing method, so it hass food vacuum effect, high automatic grade, it also has good HMI.

4.The vacuum water tank composed of two water tanks, seperate operation, the water tank material is stainless steel, the water level is controlled by float valve, the forward and back move controlled by motor.

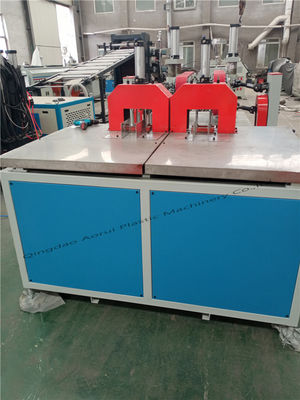

5.Traction machine adopt frequency controller, adopts pneumatic clamping. Automatic cut to length by cutting machine.It has PLC control system.Stacker can be automatically turned over.



PVC electric conduit pipe making machine

Model SJSZ51 SJSZ65 SJSZ80 SJSZ80 SJSZ92
Screw diameter(mm) 51/105 65/132 80/156 80/156 92/188
Main motor(kw) 18.5 37 55 55 110
Pipi diameter(mm) 16-63 63-160 160-250 250-315 315-630
Capacity(kg/h) 60-100 150-200 350-400 50-400 700-800
Max.speed(m/min) 15 6 4 3 1



Competitive advatnages:

1.Qingdao Aorui Plastic Machinery Co.,ltd main produce various diameter pvc pipe production line, the pvc pipe main used to swage pipe, industrial transportation pipe, pvc drain pipe, water supply pipe, transparent pipe and other pipe.

2.We have so many year experience, our production line is stable and high efficiency, it can produce safe, reliable, stable pvc pipe.
