150kg/H Single Screw PE Plastic Pipe Extrusion Line

150kg/H Single Screw PE Plastic Pipe Extrusion Line
150kg/H Single Screw PE Plastic Pipe Extrusion Line 150kg/H Single Screw PE Plastic Pipe Extrusion Line

Large Image :  150kg/H Single Screw PE Plastic Pipe Extrusion Line

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJ75/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

150kg/H Single Screw PE Plastic Pipe Extrusion Line

Description
Condition: New Automatic Grade: Fully Automatic
Brand Name: Aorui Place Of Original: China
Warranty Time: 1 Year Voltage: 380V 50HZ
Motor Power: 37KW Screw And Barrel Material: 38Cr MOAIA
Capacity: 100-150kg Per Hour Screw Design: Single Screw
High Light:

Single Screw PE Pipe Extrusion Line

,

150kg/H Plastic Pipe Extrusion Line

,

38Cr Screw Plastic Pipe Extrusion Line

PE Plastic Pipe Production Line , Single Screw Extruder Large Diameter Plastic Pipe Extrusion Line



Brief introduction:

1.This pe pipe production line has high extrusion speed, good plasticization.

2.Pe pipe extrusion line main includes:

Automatic feeder, single screw extruder, die head, vacuum tank, spray cooling water tank, tractor, cutter, stacker.



Description of pe pipe production line:



1.PE Pipe Extrusion/Production line is mainly used for producing gas supplying pipe, water supplying pipe, cable protection pipe etc. The pipe has some excellent features such as low temperature impact resistance, reliable connection, good stress crack resistance, good chemical resistance, good wear resistance, long using life, etc.

2.PE pipe production line is primarily used in the manufacturing of PE pipes with diameters ranging from 16mm to 1200mm. The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation.

3.This line also excels in the production of anti-flammable and anti-static electricity pipes using a two or three layer spiral mould for use in mining industries. Pipes produced feature even wall-thickness and perfect roundness. Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.



Technical Parameters:



Item/Model GF63 GF110 GF160 GF250 GF315 GF630 GF800
Diameter range (mm) 16-63 16-110 50-160 50-250 110-315 315-630 400-800
Claw number of haul off (pcs) 2 2 2 3 4 6 8
Pulling force (KN) 6 8 11 20 30 40 50
Pulling speed (m/min.) 15 12 8 9 4 2 2



Competitive advatnages:

This pipes produced by our line have excellent stiffness and flexibility ,resistance to creep deformation ,excellent heat-linkage .Large dismeter HDPE pipes start to play very important role in the city water and gas supply systems.

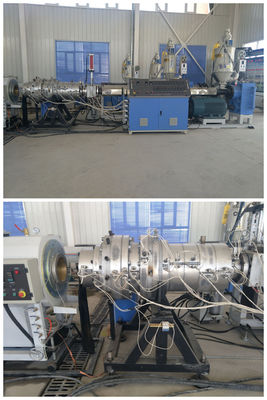

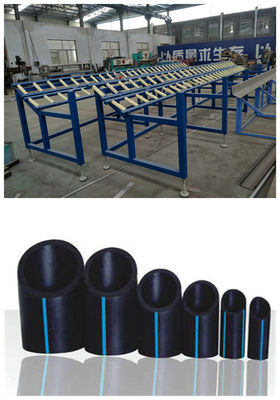

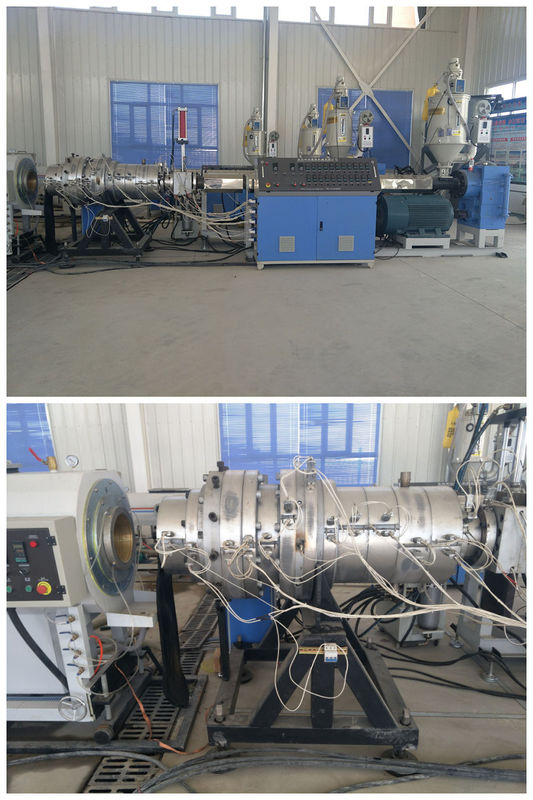

Machine display:

150kg/H Single Screw PE Plastic Pipe Extrusion Line 0150kg/H Single Screw PE Plastic Pipe Extrusion Line 1
