Product Details:
|
Application: | Plastic Pipe | Plastic Processed: | PE PP PPR |
---|---|---|---|
Condition: | New | Screw Design: | Single Screw |
Screw Material: | 38Cr Moaia | Place Of Original: | China |
Warranty Time: | 1 Year | Motor Brand: | Siemens |
Voltage: | 380V 50HZ | Brand Name: | Aorui |
High Light: | PE PPR Plastic Pipe Extruder,38Cr Screw Plastic Pipe Extruder,160mm Plastic Pipe Extruder |
PE PPR Plastic Pipe Extruder , HDPE Plastic Pipe Extrusion Line , PP PE Pipe Extrusion Machine
Brief introduction of pe pipe machine:
PE pipe extrusion machine is mainly used to produce PP-R pipes, PERT pipes, PE pipes which are widely used in drinking water pipe system, which is adopted by many developed countries nowadays as new type product, which is sanitary, nontoxic, and environmentally friendly. It also owns advantages for heat resistance,pressure resistance, energy saving, and long service life.
Description of pe pipe production line:
1.High efficiency pipe extrusion line make the process low noise and low energy consumption. The pipe more durable and environment friendly.
2.PE pipe extrusion line provide the pipes for feed-water piping, like Tap-water, hot water supply pipes for civil building, farmland irrigation, ground source heat pump pipeline, siphon rainwater drainage system,etc.
3.Vacuum Diameter Table ,Multi-claw Hual Off Device, electrical components was adopted famous brand making the device running stably and efficiency.
4.Cutting Device
Planetary cutting table no noisy and dust free.Double Control Length system guaranteed the cutting accuracy.
Main parameters of LDPE pipe extrusion line
Technical parameters:
Model | Pipe Diameters(mm) | Supporting extruder (33:1 or 38:1) |
Extrusion capacity(kgh) | Total Installed Power(kw) |
SG-63 | 16-63 | SJ6533 SJ2525 | 120-180 | 110 |
SG-110 | 16-110 | SJ6533 SJ2525 | 150-200 | 130 |
SG-160 | 50-160 | SJ7533 SJ2525 | 150-220 | 150 |
SG-250 | 75-250 | SJ7533 SJ2525 | 280-350 | 280 |
SG-315 | 110-315 | SJ9033 SJ2525 | 250-350 | 350 |
SG-450 | 160-450 | SJ9033 SJ2525 | 350-450 | 400 |
SG-630 | 315-630 | SJ12033 SJ2525 | 550-850 | 550 |
SG-800 | 450-800 | SJ15033 SJ2525 | 800-1300 | 750 |
SG-1000 | 600-1000 | SJ15033 SJ2525 | 800-1300 | 750 |
SG-1200 | 800-1200 | SJ12033*2 SJ2525 | 950-1600 | 950 |
SG-1600 | 1000-1600 | SJ15033*2 SJ2525 | 1500-2500 | 1300 |
Application:
This Large diameter HDPE/MDPE fuel gas/water supply pipe extrusion line is mainly used for producing large diameter HDPE/MDPE pipe. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems between city and its suburb, water supply in city.

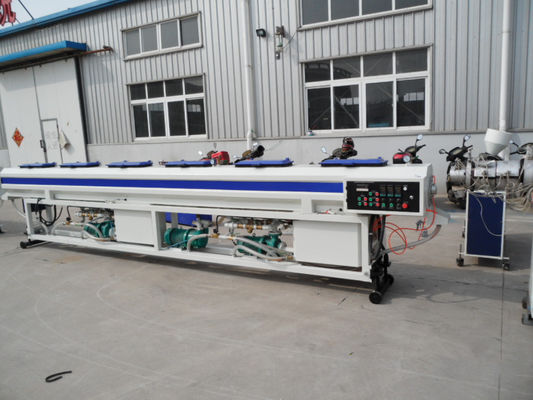

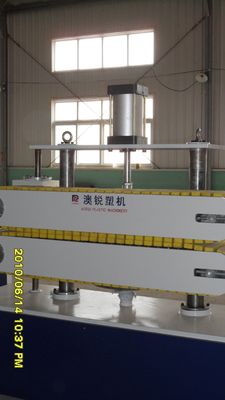

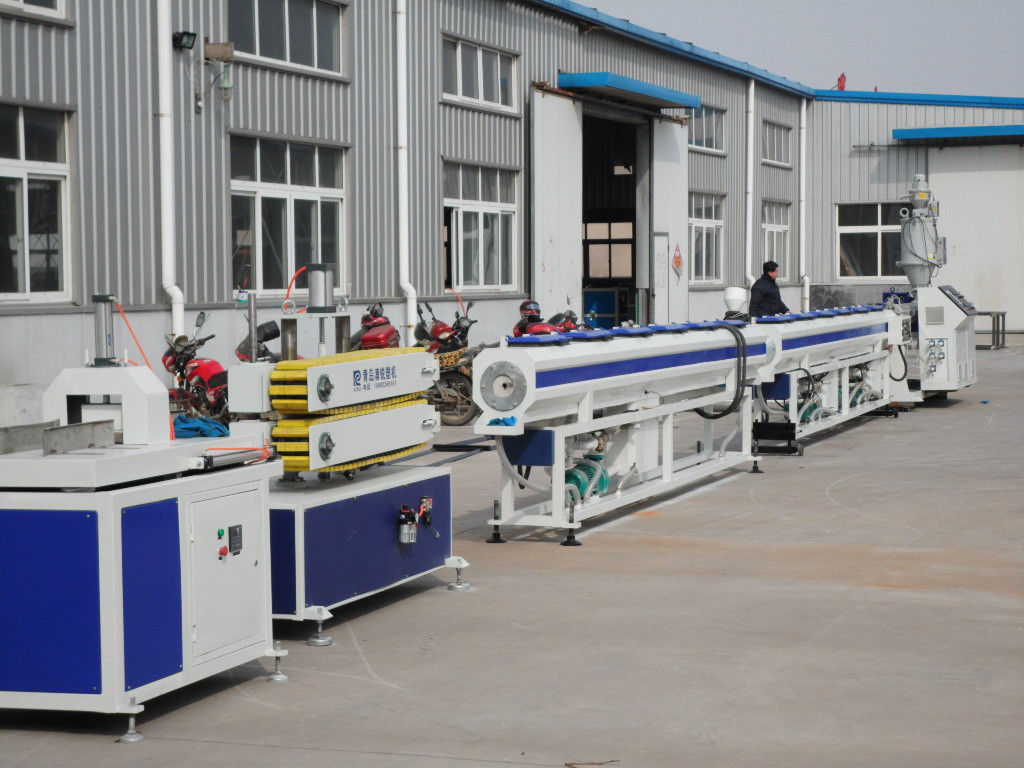

Machine display:
