Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Screw Design: | Single Screw | Automatic Grade: | Fully Automatic |
| Voltage: | 380V 50HZ | Certificate: | CE Certificate |
| Place Of Original: | China | Application: | Pe Pipe |
| After-sales Service: | Engineer Availiable To Service | Warranty Time: | 1 Year |
| High Light: | 600kg/H HDPE Pipe Extrusion Machine,Sewage HDPE Pipe Extrusion Machine,Anti Aging HDPE Pipe Extrusion Machine |
||
PP PE Gas Supply Drainage Pipe Production Line , PE Sewage Pipe Extrusion Line
Brief introduction of pe pipe machine:
1.The process flow of HDPE pipe production is as following:
Loader → Dryer → Single-screw Extruder→ Mould→ Vacuum &Spraying Cooling Tank →Hauling-off → Cutter/Winder → Pipe stacker
2.SYSTEM CONFIGURATION OF THE PRODUCTION LINE:
1. 1 set of Automatic loader
2. 1 set of Hopper dryer
3. 1 set of Single-Screw Extruder
4. 1set of Mould
5. 1 set of Vacuum &Spraying Cooling Tank
6. 1 set of Hauling off Machine
7. 1 set of Pipe Cutting Machine /Winder
8. 1 set of Pipe Stacker
Description of pe pipe production line:
1. Model SJSZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.
2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.
3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.
4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.
6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.
Main parameters of LDPE pipe extrusion line
|
Model
|
Screw Diameter(mm)
|
L/D
|
Motor Power(kw)
|
Center Height(mm)
|
Output HDPE/PE(kgs/h)
|
|
ZJS45/33
|
45
|
33:1
|
37
|
1000
|
150
|
|
ZJS60/33
|
60
|
33:1
|
75
|
1000
|
300
|
|
ZJS75/33
|
75
|
33:1
|
110
|
1100
|
450
|
|
ZJS90/33
|
90
|
33:1
|
160
|
1100
|
600
|
|
ZJS120/33
|
120
|
33:1
|
280
|
1100/1300
|
950
|
|
ZJS150/33
|
150
|
33:1
|
400
|
1300
|
1350
|
Application:
This Large diameter HDPE/MDPE fuel gas/water supply pipe extrusion line is mainly used for producing large diameter HDPE/MDPE pipe. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems between city and its suburb, water supply in city.

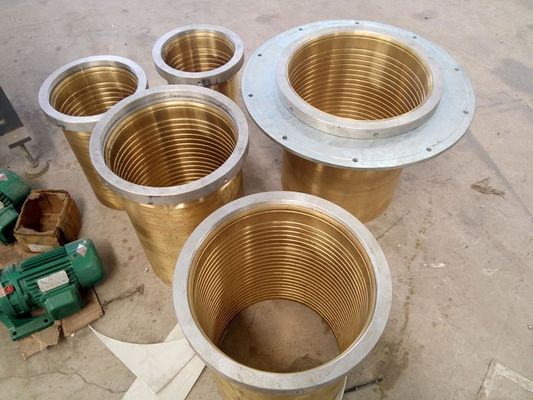

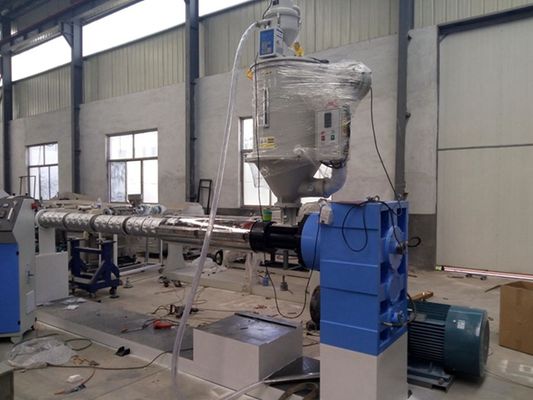

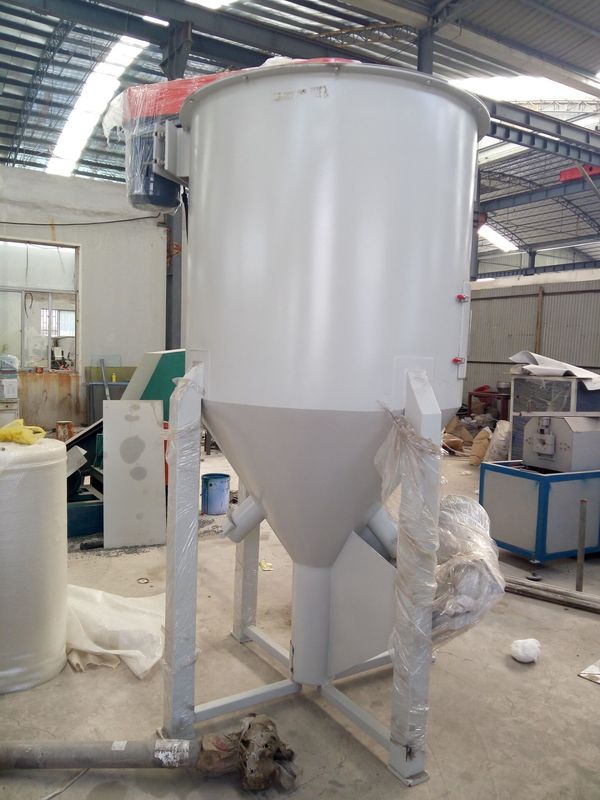

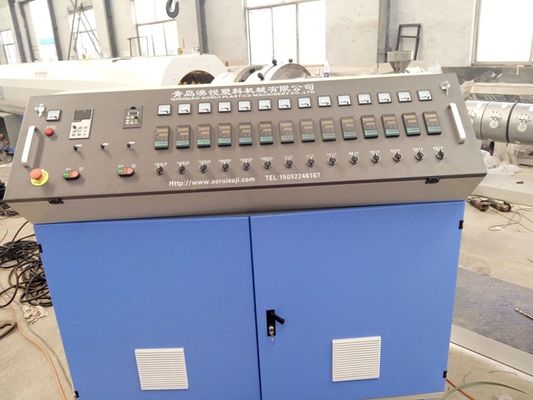

Machine display:
