Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ65X132 |
|---|---|---|---|
| Condition: | New | Plastic Processed: | PVC WPC |
| Place Of Original: | China | Certificate: | CE Certificate |
| Warranty Time: | 1 Year | Voltage: | 380v 50hz |
| Automatic Grade: | Fully Automatic | Motor Brand: | Siemens |
| High Light: | Door Frame WPC Profile Making Machine,CE PVC Plastic Profile Extrusion Machine,180kg/h Plastic Profile Extrusion Machine |
||
PVC WPC Door Frame Profile Making Machine , Plastic Profile Extrusion Machine With CE Certificate
Description of plastic profile machine:
1. Production process: The raw material is extruded by the die, it is formed by the die. After cooling and setting, the profile is moved by a tractor.cut when required length is reached.
2. Machine advantages:Adopt hard tooth surface gearbox, zhoushan screw, low voltage apparatus adopt siemens brand, Omron temperature controller, motor brand is siemens.
3. Heater material: cast aluminum heater ring, stainless steel cover.
4. Product specification:It can produce plastic profile constantly, and realize online fixed length cutting or winding.
Charactristics of profile machinery:
1. Plastic profile extrusion die, especially when the extruded material is modified polyvinyl chloride, its molded parts are generally made of corrosion-resistant materials such as stainless steel and tempered to above HRC24 to ensure a certain service life.
2. The working surface of the die, the shaping die and its parts should be smooth and free of defects such as bumps, scratches, burrs, attachments, and corrosion.
3. The die runner system should be smooth along the direction of melt flow, and try to avoid sudden changes in the cross section and stagnant areas.There should be reliable positioning between the templates, and the loading and unloading repeatability error of the corresponding positions between the templates between the molds should not be greater than 0.03mm; the joint surfaces and joints of the plastic profile extrusion die should be tightly closed, and the local gap should not be greater than 0.02mm.
4. The cooling system and vacuum system of the sizing mold should be unobstructed and not leaking. Under normal circumstances, the water and air systems should not collude with each other. The water pipe joints and vacuum pipe joints of the plastic profile extrusion die setting die shall have obvious signs and shall not affect the connection of the pipeline.
5. The shaping die of the plastic profile extrusion die should be opened and closed flexibly, and the shaping die of each section and the shape blocks in the water tank should ensure a certain degree of coaxiality.
Technical parameter :
| Model | YF180 | YF300 | YF600 | YF800 | YF1000 |
| Max.width of product(mm) | 180 | 300 | 600 | 800 | 1000 |
| Extruder mode | SJZ51/105 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJZ92/188 |
| Extrusion capacity(kg/h) | 150 | 180 | 360 | 360 | 600 |
| Motor power(kw) | 18.5 | 37 | 55 | 55 | 110 |
| Total length(m) | 18 | 22 | 26 | 28 | 32 |

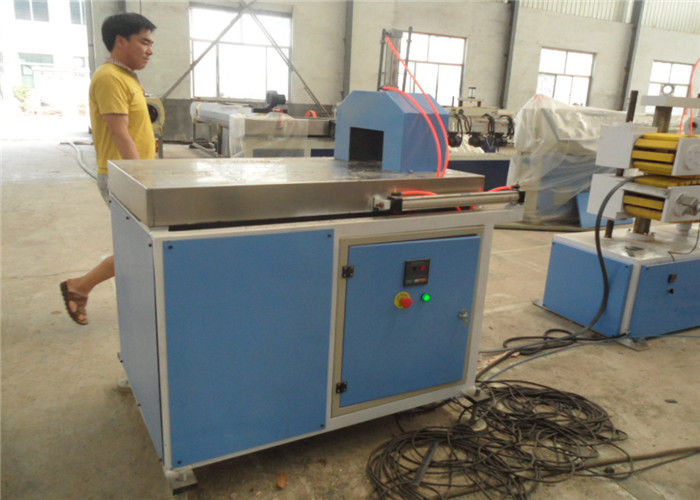

Machine dispaly:
