Extruded Plastic Profile Extrusion Line Window Ceiling WPC Profile Extrusion Line

Extruded Plastic Profile Extrusion Line Window Ceiling WPC Profile Extrusion Line
Extruded Plastic Profile Extrusion Line Window Ceiling WPC Profile Extrusion Line Extruded Plastic Profile Extrusion Line Window Ceiling WPC Profile Extrusion Line Extruded Plastic Profile Extrusion Line Window Ceiling WPC Profile Extrusion Line Extruded Plastic Profile Extrusion Line Window Ceiling WPC Profile Extrusion Line

Large Image :  Extruded Plastic Profile Extrusion Line Window Ceiling WPC Profile Extrusion Line

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJSJ65x132
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per quarter

Extruded Plastic Profile Extrusion Line Window Ceiling WPC Profile Extrusion Line

Description
Brand Name: Aorui Condition: New
Automatic Grade: Fully Automatic Cooling Mode: Fan Cooling, Water Cooling
Extrusion Mode: Constantly Extrusion Application: Used To Production Various Profiles
Warranty Time: 1 Year Plastic Processed: PVC WPC
Model Number: SJSZ65X132 Inverter Brand: ABB
High Light:

100kg/h Plastic Profile Extrusion Line

,

Window Ceiling WPC Profile Extrusion Line

,

3KW Traction WPC Profile Extrusion Line

PVC Plastic Profile Extrusion Machine , PVC WPC Window Celling Profile Extrusion Line



PVC Profile Production Equipment Characteristics :

1.This production line can used to production pvc door profile, pvc window profile, pvc celling plate, pvc wall plate and other profile products.

2.pvc profile extrusion line equipped with conical twin screw extruder, mould, vacuum sizing table, Traction machine, Cutter, Stacker.

3.The production line has uniform thawing of materials, fast shear rate,



Description of pvc profile machine:

1. PVC wood foam extrusion line: adopt advanced processing technology, equipped with specially designed screw, barrel, die head and axe machine. The profile is a new environmentally friendly product that mixes plastic, wood and appropriate accessories. Widely used in product carrier, packaging box, window frame, decorative board and other outdoor products.

2. Twin screw extruder: SCSJSZ65/132.

Screw diameter :¢65/¢132mm, 2 screws, length-diameter ratio 22:1, screw maximum speed 37.7rpm; Screw barrel is treated with 38rMoAIA nitriding. The cylinder is cooled by outside fan, the cast aluminum heating ring with air duct, and the cylinder is heated in 4 zones. Maximum output 230kg/h, production speed 1-12m/min.

3. Feeding system:

Automatic screw feeding system, high speed and low noise reducer with hard tooth surface.

4. Machine head and setting mold:

Main profile head and shaping mold are mainly customized according to user requirements. Flange bolt connection is used to connect the machine head and confluent core.

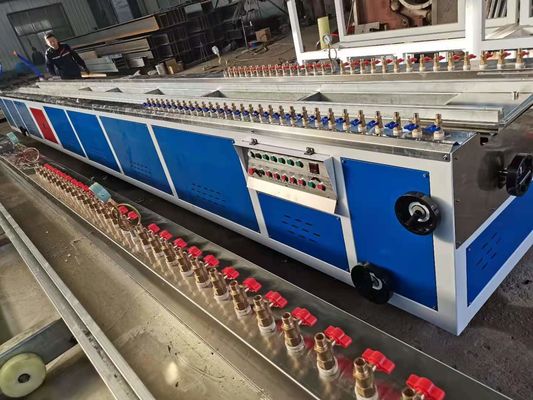

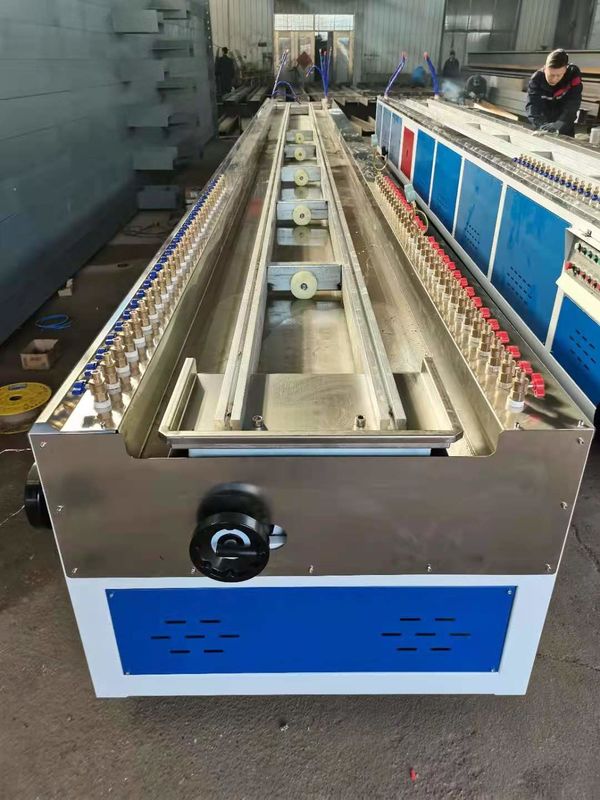

5. Vacuum shaping device:

The full length of vacuum shaping device: 6000mm, the water tray is made of stainless steel, 12 cooling water pipe joints.

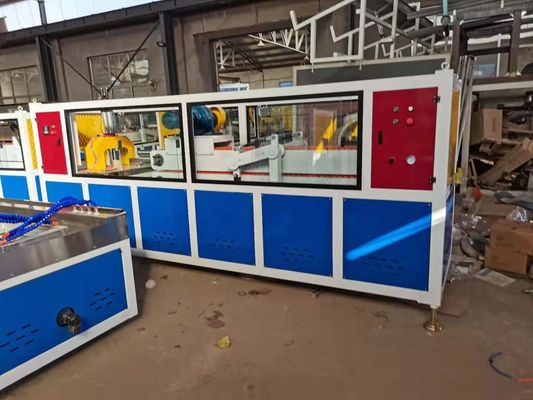

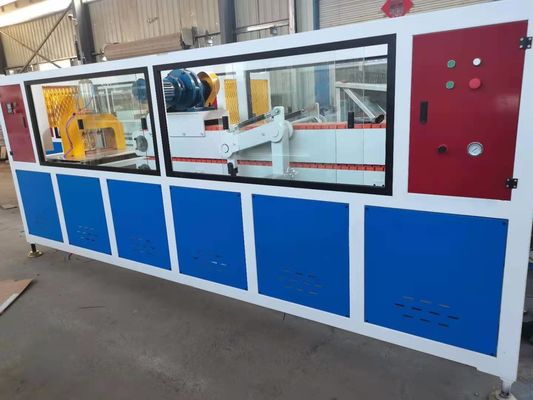

6. Traction device:

Traction track: 2, vulcanized rubber rubber block, traction speed: 0.3-3m /min

Traction motor power: 3KW, traction clamping with pneumatic adjustment function.

7. Cutting machine SCQG - 160

Cutting machine adopts saw blade cutting, pneumatic control. The cutting width is 230mm, the maximum cutting thickness is 160mm, the maximum cutting speed is 5m/min, the total cutting power is 1.5kW, and the dust collecting device is equipped.

8. Flip SCDF - 160

Table is made of stainless steel, effective turning length 6m, pneumatic, automatic turning stacking.

9. Digital automatic control system:

Features: High precision temperature control, equipped with alarm system, simple operation, stable operation.



Specification of plastic profile machine:

Type
PVC Plastic Profile Extrusion Line
Model
YF108
YF180
YF240
YF300
YF400
YF500
YF600
Max width of product(mm)
108
180
240
300
400
500
600
Extruder model
SJZ51/105
SJZ51/105
SJZ65/132
SJZ65/132
SJZ80/156
SJZ80/156
SJZ80/156
Extruder power (kw)
18.5
22
37
37
55
55
75
Max extrusion capacity(kg/h)
100
100
150-200
150-200
250-300
250-300
300-350



Machine dispaly:

Extruded Plastic Profile Extrusion Line Window Ceiling WPC Profile Extrusion Line 0



Extruded Plastic Profile Extrusion Line Window Ceiling WPC Profile Extrusion Line 1
