HDPE LDPE Plastic Granules Machine Pelletizing Plastic Recycling Granulator

Certification
China QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1 certification
Customer Reviews
The sales have good service, it brings me a good experience. We import 5 sets extruders from this company, the extruders have good quality and long service life. I'd like to cooperate with this company for long time.

—— Andrew

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

I'm Online Chat Now

HDPE LDPE Plastic Granules Machine Pelletizing Plastic Recycling Granulator

HDPE LDPE Plastic Granules Machine Pelletizing Plastic Recycling Granulator
HDPE LDPE Plastic Granules Machine Pelletizing Plastic Recycling Granulator
HDPE LDPE Plastic Granules Machine Pelletizing Plastic Recycling Granulator HDPE LDPE Plastic Granules Machine Pelletizing Plastic Recycling Granulator

Large Image :  HDPE LDPE Plastic Granules Machine Pelletizing Plastic Recycling Granulator

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJ75/33 SJ90/33 SJ120/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

HDPE LDPE Plastic Granules Machine Pelletizing Plastic Recycling Granulator

Description
Application: PP PE Pelletizing Condition: New
Screw L/D Ratio: 30:1 Screw Design: Single Screw
Brand Name: Aorui Voltage: 380V 50HZ
Warranty Time: 1 Year Certificate: CE Certificate
High Light:

HDPE LDPE Plastic Granules Machine

,

Pelletizing Plastic Recycling Granulator

,

Single Screw Plastic Recycling Granulator

PP PE Plastic Granules Machine , PP PE Film Recycling Granulating Equipment , HDPE LDPE Film Granules Making Machine



Quick detail:

1. The equipment is mainly for all kinds of agricultural film, packaging film, life film, as well as low density LDPE and high density HDPE and PET film crushing cleaning and granulation.

2. For recycling the waste plastic, such as waste PET bottles, PP PE film, woven bags, nylon, bottle flakes, shred lumps, pipe flakes, we should use two recycling steps, first one is crushing washing drying, after washing recycling line, we can get clean dry plastic scrap/flakes.

3. The second step is the pelletizing, we can feed the clean dry waste plastic scrap into the pelletizing line to get pellets, according to the different plastic type, the pelletizing machine is divided into water ring type pelletizing line and noodle strip pelletizing line, the feeding material type also have two different way, one is force feeding type which is suitable for hard material, another is compactor type pelletizing line, which is designed specially for soft material, like woven bags, nylon, film etc.

Features of plastic granulator machine:

1. The raw material is first sent to the crusher by the pre-cleaning machine through the conveyor uniformly PE film, broken into about 80 mm piece of material, flowing into the friction cleaning machine for the second cleaning. When the material through the friction cleaning machine after cleaning into the high temperature cooking pot, PE material oil impurities in the machine fully separated and into the separation of precipitation box, in the precipitation box under the action of the roller PE material constantly get rinsed.

2. At the same time, with the overflow of water, the net conveyor at the end of the precipitation box is sent to the centrifuge. After centrifugal dewatering, the material is sent to the pipe dryer through the fan, and then separated into the collecting bin through the cyclone, and then sent to the double-stage extrusion granulator through the flat belt system for extrusion and granulation.

3. Reducer adopts high torque design to achieve no noise and smooth operation.Screw, barrel by special hardening treatment, with wear resistance, good mixing performance, high yield characteristics.

4. The design of the exhaust port can discharge water and exhaust gas in the production process, so that the granules are more stable and the granules are stronger, ensuring the excellent quality of the products.The unit has the advantages of large output, high benefit, stable quality and easy operation, and is the best choice for plastic granulating manufacturers to develop new products.



Specification of Plastic bags and film recycling granulating machine:

Model

Screw Diameter

(mm)

Rotary Speed

(rpm)

Main motor(Kw) Compacting Machine(Kw) Output(kg/h)
JIN85-33 85 10-120 55 38 150-200
JIN100-33 100 10-120 90 58 260-300
JIN130-33 130 10-120 130 77 330-400
JIN160-33 160 10-120 162 91 520-600
JIN180-33 180 10-120 240 135 880-1000


Competitive Advantage:
large output, high benefit, stable quality and easy operation

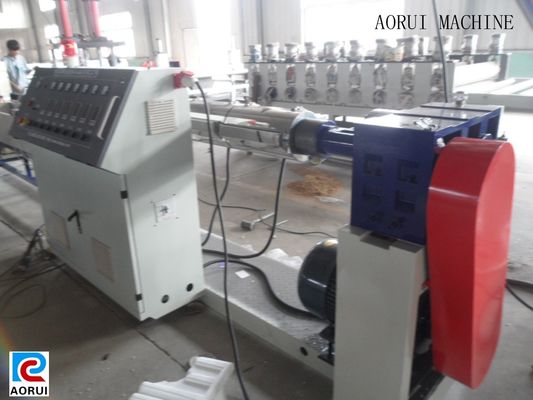

Machine display:

HDPE LDPE Plastic Granules Machine Pelletizing Plastic Recycling Granulator 0



HDPE LDPE Plastic Granules Machine Pelletizing Plastic Recycling Granulator 1
