|Brand Name:||Aorui||Screw Design:||Single Screw|
|Voltage:||380V 50HZ||Certificate:||CE Certificate|
|Warranty Time:||1 Year||Delivery Time:||35 Days|
200kg/h Plastic Granules Making Machine,
Automatic Masterbatch Granulator,
85mm Screw Plastic Granules Machine
PP PE Recycled Plastic Granules Making Machine , Color Master Batch Automatic Granulator

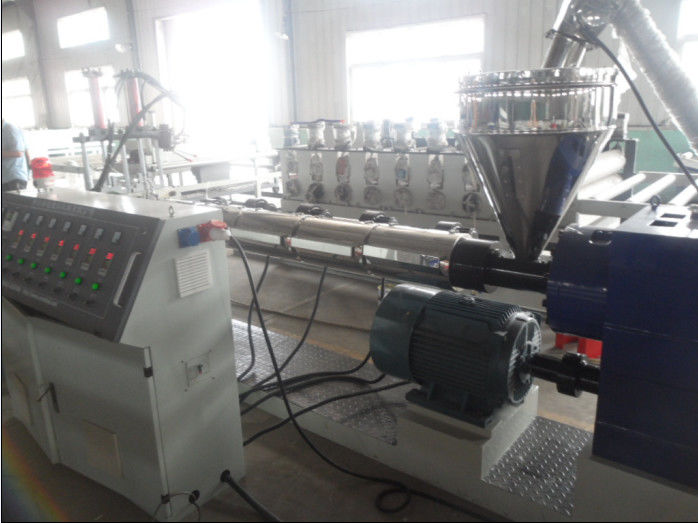

Plastic Pelletizing Machine Extruder Layout:
1. Belt Conveyor
2. Metal detector
4. Single Screw extruder
5. Hydraulic Screen Changer
6. Die face cutting system(vertical or horizontal)
7. Water cooling tank
8. Centrifugal dewatering machine
9. Vibrator screen machine
10 . Air conveyor & Storage silo
Belt conveyor * 2 → Crusher * 2 → Screw friction washer* 2 → Floating washer →Screw friction washer →Floating washer→Screw conveyor → High speed friction machine → Screw conveyor → Two direction horizontal separating screw → Squeezer machine* 2 →Storage hopper → Control cabinet
Features of plastic granulator machine:
1. Feeding way of plastic pelletizing recycling machine: Special designed force feeder, side feeder and compactor can push the material into the extruder high efficiently. Guarantee getting good capacity of the machine
2. Gear reducer of Plastic Granulator: The high torque, hard-surface gear reducer with water cooling circulation system ensures the line running steady, silent, and long life.
3. Barrel and screw of Plastic Granulating Machine: The special material (38CrMoA1A & double alloy) and hardness treatment of the screw and barrel make extruder to be good wear resistance.
4. Degassing of Plastic Pelletizing Machine: Special design for the venting can discharge the moisture and waste air efficiently which ensure the finally plastic granules are with smooth surface, no water, no bubble, and good quality.
5. Hydraulic filter: Double position hydraulic filter works swift and easy to operate. Copper ring prevents the material leakage.
6. Cutting way of Plastic Pelletizer: Two type cutting way, the noodle type and water ring type makes the customer freely to choose.

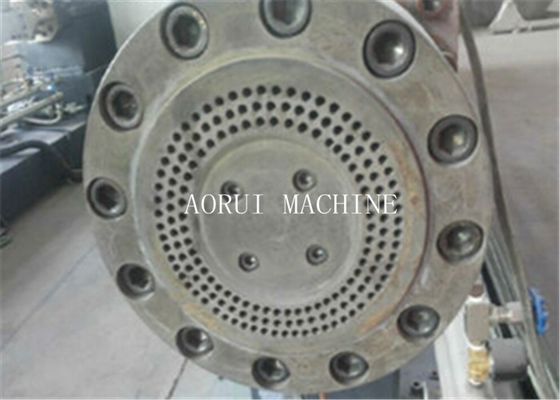

7. Special designed die of Plastic Film Pelletizing machine: All die holes size are special designed due to the material characters and our rich experience to make machines.
8. Cooling way: Most of the materials are cooled by water. Some like PVC are cooled by wind. e with smooth surface, no water, no bubble, and good quality.
9. Cutting way of PP PE Film Pelletizing Machine: pineapple cutter is for the noodle cutting way, and die face cutter for the water ring cutting way.
10. Package of the final products : Final products granules will be blowing into silo, which will be packaged by manual or packaging scale machine
11. Electric parts: Siemens, Schneider, Fuji, ABB, Mitsubishi, TECO all electric parts customized.
Specification of Plastic bags and film recycling granulating machine:
|Model||Screw Diameter||Main Motor Power||Compactor Motor Power||Capacity|
large output, high benefit, stable quality and easy operation
