Product Details:
|
| Brand Name: | Aorui | Screw Design: | Double Screw |
|---|---|---|---|
| Condition: | New | Place Of Original: | China |
| Automatic Grade: | Fully Automatic | Voltage: | 380V 50HZ |
| Certificate: | CE Certificate | Plastic Processed: | PVC |
| High Light: | PVC Cable Plastic Granules Machine,Twin Screw PVC Pelletizing Machine,Double Screw PVC Pelletizing Machine |
||
PVC Plastic Granules Machine , PVC Electrical Cable Material Pelletizing Machine With Twin Screw Extruder
Quick detail:
1) The full pvc granule making machine include one double screw extruder SJZ65, Pellets making mold with three knives, Air Blower, First stage hopper and second stage hopper.
2) On this , you must with one system callpvc granule making machineed die core temperature adjust system, and must be with water cooling, as CPVC has special chemical character than UPVC;
3) For pvc granule making machine, the capacity can be 150kg/h, 200kg/h, 300kg/h and 500kg/h, you can choose them based on your needs, then we will suggest the satisfied extruder and auxiliary machines;
Introduction of pvc plastic pelletizing equipment:
Brief Introduction:
1. PVC pelletizing line is one of our main products, which has the advantages of high stability,better capacity at reasonable consumption.
2. The pelletizing line includes extruder, pelletizing mould, air cooling sytem and vibrosive.
3. All our extrusion equipments are using best standard devices. eg. ABB frequency invertor, which enjoys global guarantee, Simens standard main motor, Schneider buttons, Japanses RKC temperature indicators, FUJI frequency controller. Feeding powder motor is controlled by FUJI .If PVC pelletizing are color concentrate, we can add three or five stock bins.
Main feature:
1. Conical double-screw extruder, very suitable to process PVC powder with high capacity
2. Pelletizing style: hot-cutting on mould face, even cutting ensures good shape.
3. Auxiliary machine: pellets cooling & classifying.
Technical parameter:
| Model | SJZ51 | SJZ55 | SJZ65 | SJZ80 | SJZ92 |
| Screw Dia.(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Max.Speed(rpm) | 40 | 38 | 38 | 37 | 36 |
| Main Motor(kw) | 18.5 | 22 | 37 | 55 | 90 |
| Output(kg/h) | 80-100 | 100-150 | 150-250 | 250-380 | 380-700 |
| Center Height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
| New Weight(kg) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H(m) | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
Short delivery time
Good after-sales service
Long service life

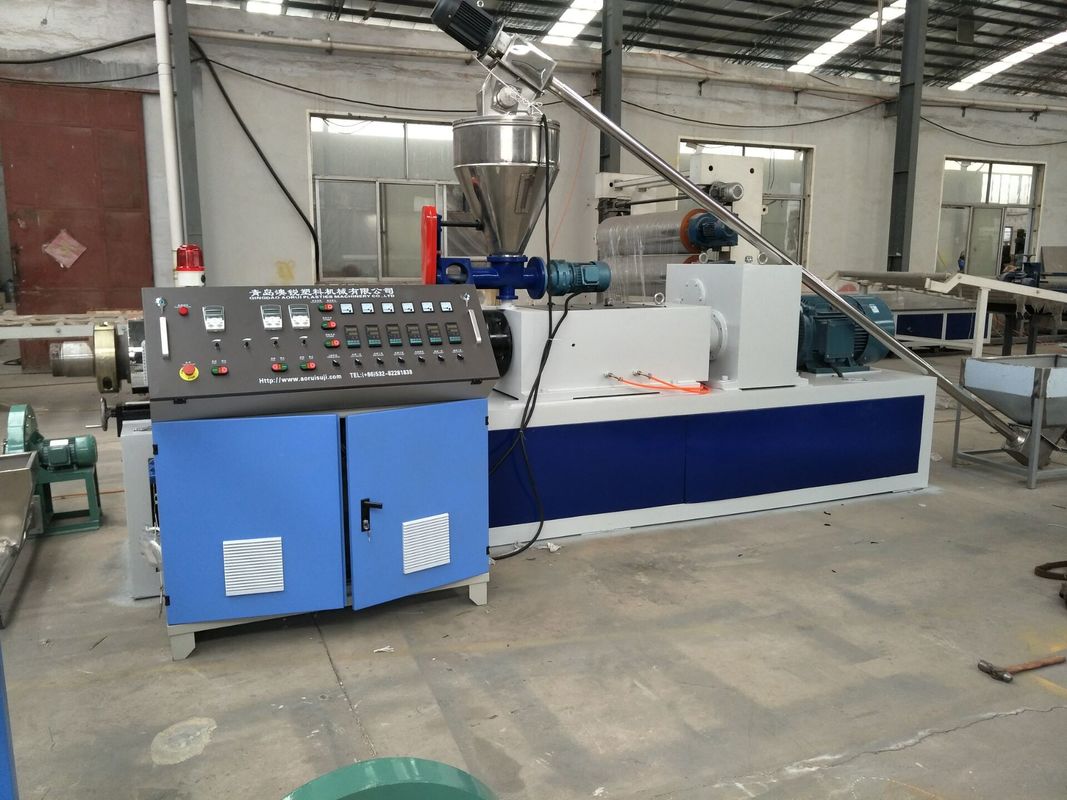

Machine display:
