products details

Home Products

Waste Film Bottle Recycling Plastic Granules Machine 350kg/H 132kw

Waste Film Bottle Recycling Plastic Granules Machine 350kg/H 132kw

Brand Name:	AORUI
Model Number:	SJ75/33 SJ90/33 SJ120/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Brand Name:

Aorui

Voltage:

380V 50HZ

Screw Design:

Single Screw

Inverter Brand:

ABB

Material Processed:

PP PE

Warranty Time:

1 Year

Certificate:

CE Certificate

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

132kw Plastic Granules Machine

Plastic Granules Machine 350kg/H

CE Waste Film Plastic Granules Machine

Product Description

SJ75 /33 Waste Plastic Film Bottle Recycling Plastic Granules Machine With High Output Extruder

Quick detail:

1. This machine suitable for PE, PP waste film recycle, and then granulator int granules;

Machine with safety shield, more safety operate and temperature more stable;

Finished granule can mix with new material use, it can save factory cost.

2. Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →Water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.

Introduction of plastic pelletizing Machine:

1. This plastic granulator machine for waste plastic recycling is used to make plastic flakes into pellets or granules.

And Double stage pelletizing line is especially good for the raw material which contains high moisture, high impurities.
2. The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
3. And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.

Technical parameter:

Item/Model	CB-R-80	CB-R-100	CB-R-120	CB-R-160
Main driving motor	55	90	132	200
L/D ratio	40:1	36:1	33:1	30:1
Output (kg/h)	150-200	250-350	400-500	800-1000

Competitive Advantage of our granulator machine:

1. Very strong and long life: Screw and barrel are made of 38CrMoAlA, inlet mouth treated with special alloy:
2. Easy operation: it has automatic constant temperature control and stable performance. After adjusting well, 1 or 2 workers are enough to run this machine, to feed the materials and change pellet receiver.
3. Low cost in using after redesign: now this kind machine is more economic in electric power source and also water. In the long working life of this machine, it can save many sources in energy!
4. High output, long operating life and lower noise: it’s the ideal waste plastics regenerative pelletizer machine for nowadays.

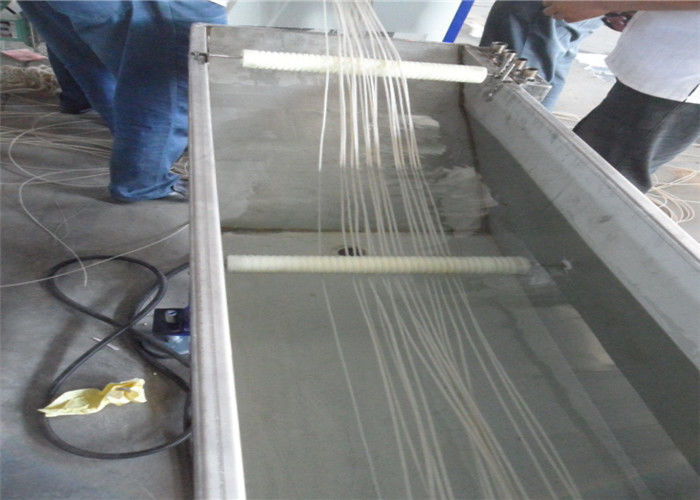

Machine display:

Waste Film Bottle Recycling Plastic Granules Machine 350kg/H 132kw 0
