16mm PVC Pipe Making Machine Agricultural PVC Pipe Extrusion Machine

16mm PVC Pipe Making Machine Agricultural PVC Pipe Extrusion Machine
16mm PVC Pipe Making Machine Agricultural PVC Pipe Extrusion Machine
16mm PVC Pipe Making Machine Agricultural PVC Pipe Extrusion Machine 16mm PVC Pipe Making Machine Agricultural PVC Pipe Extrusion Machine 16mm PVC Pipe Making Machine Agricultural PVC Pipe Extrusion Machine 16mm PVC Pipe Making Machine Agricultural PVC Pipe Extrusion Machine

Large Image :  16mm PVC Pipe Making Machine Agricultural PVC Pipe Extrusion Machine

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJSZ65X132
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

16mm PVC Pipe Making Machine Agricultural PVC Pipe Extrusion Machine

Description
Plastic Processed: PVC Condition: New
Application: Pipe Screw Design: Double Screw
Warranty Time: 1 Year Certificate: CE Certificate
Voltage: 380V 50HZ Inverter: ABB
Place Of Original: China After Sales Service: Engineer Availiable To Service
High Light:

16mm PVC Pipe Making Machine

,

100kg/H PVC Pipe Extrusion Machine

,

6m/Min PVC Pipe Extrusion Machine

PVC Pipe Making Machine , SJ65X132 PVC Pipe Extrusion Machine , Plastic PVC Pipe Extrusion Line



Quick detail :

1. The pvc conduit pipe production line is widely used in the production of PVC water supply pipes, water drain pipes and electrical conduit pipes.PVC pipe can be produced with PVC pipe mold. plastic pipe recycling machine is composed of extruder SJSZ series, mold, vacuum forming tank, hauling off machine, cutting machine and stacker. It can directly produce PVC pipes from mixed powder.

2. The plastic pipe in machine Line adopts specially designed screws and molds, which makes it easy to form, uniformly plasticize, operate stable with high capacity and easy to operate. The plastic pipe in machine can produce pipes in PVC materials, with diameters starting from 16 mm up to 630 mm.



Description of pvc pipe production line:

Features of PVC pipe production line extruder machine
1) It is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.
2) The set is composed of conical twin-screw extruder, vacuum cablibrating tank, haull-off, cutter, stacker or belling machine etc.
3) The extruder and haul-off machine adopt the imported AC frequency control device.
The vacuum pump and hauling motor employ superior goods.
4) Haul-off machine of different specifications, such as two claws, three claws, four claws, six claws etc are designed for different requirements.
5) It is additionally attched with length measuring apparatus and thickness increasing device.
6) The unit is of reliable performance and high production efficiency.
The pipe diameter is mainly from Φ 16mm-Φ 630mm. We also can design the machine
according to your requirement



PVC electric conduit pipe making machine



Model SJSZ51 SJSZ65 SJSZ80 SJSZ80 SJSZ92
Screw diameter(mm) 51/105 65/132 80/156 80/156 92/188
Main motor(kw) 18.5 37 55 55 110
Pipi diameter(mm) 16-63 63-160 160-250 250-315 315-630
Capacity(kg/h) 60-100 150-200 350-400 50-400 700-800
Max.speed(m/min) 15 6 4 3 1



Application:

PVC pipe extrusion line can be used to produce various PVC drinking water pipes, agricultural pipes and wire pipes. Equipped with different series of downstream equipment and molds; the line produces UPVC, C-PVC, PVC-M, PVC-O tubes, composite tubes with intermediate foam layers, and composite foam tubes with internal spirals.



Competitive advatnages:

Easy to operate

Easy to maintanence

Low consumption



Machine display:

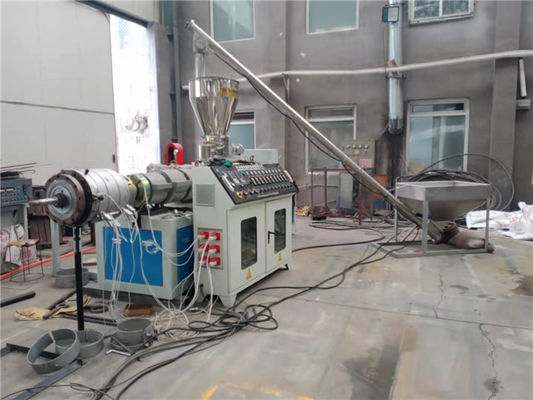

Electrical cabinet

16mm PVC Pipe Making Machine Agricultural PVC Pipe Extrusion Machine 0

Mould

16mm PVC Pipe Making Machine Agricultural PVC Pipe Extrusion Machine 1

Tractor

16mm PVC Pipe Making Machine Agricultural PVC Pipe Extrusion Machine 2

Cutter

16mm PVC Pipe Making Machine Agricultural PVC Pipe Extrusion Machine 3



Tag: PVC Pipe Making Machine     Plastic Pipe Production Line  PVC Pipe Extrusion Machine
