Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJSZ80x156
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

280mm Plastic Pipe Extrusion Line PLC PVC Pipe Extrusion Line 750kg/H

Description
Condition: New Voltage: 380V 50HZ
Screw Design: Double Screw Place Of Original: China
After-sales Service: Engineer Availiable To Service Automatic Grade: Fully Automatic
Motor Brand: Siemens Screw Material: 38Cr Moaia
Brand Name: Aorui Certificate: CE Certificate
High Light:

280mm Plastic Pipe Extrusion Line

,

PLC PVC Pipe Extrusion Line

,

PVC Pipe Extrusion Line 750kg/H

12-63mm 63mm-250mm 280mm-630mm PVC Pipe Production Line , PVC Pipe Extrusion Line

Machine Features:

● Special screw barrel blanking can greatly improve the extrusion capacity ●Accurate temperature control system ensures the plasticization performance of materials
● The unique screw design achieves better plasticizing effect and good product quality
● Exquisite high torque gearbox for more stable operation
● H-shaped steel welded frame reduces the vibration of the machine
● Advanced PLC (SIMATIC multi panel) operation panel realizes the synchronization and automation of the whole line
● The vacuum tank and spray tank adopt automatic water temperature and water level control and special independent filter
● Provide stable 2-12 jaw tractor unit
● Saw and chip free cutting machines are available
● Energy saving, excellent performance and easy maintenance



Details of pvc pipe production line:

1.PVC pipe production line is consist of SJZ series conical twin screw extruder, mould, vacuum cooling tank, spray cooling tank(for big size pipe), haul-off machine, cutting machine, stacker, etc. It also need some auxiliary machinery. For example, hot&cooling mixer, crusher, milling machine, belling machine, etc. The hot&cooling mixer is necessary, others is optional

2.PVC extrusion die head used high quality alloy steel manufacturing, channel surface with brightness and anti-corrosive. Wide flow channel design to ensure the retention time of the melt in the die head and the largest extrusion production.
In view of the large diameter PVC pipe, the vacuum tank used double vacuum chamber structure design, equipped with a circular plate, making pipe roundness and forming better.



Parameters of the PVC pipe machine:

Model Pipe range(mm) Haul off speed Total length Capacity (kgh) Total power(kw)
UPVC63 16-63 1.5-15 22 100-150 65
UPVC160 50-160 0.8-8 32 180-250 94
UPVC250 90-250 0.35-3.5 38 300-450 170
UPVC315 110-315 0.3-3.0 34 300-450 198
UPVC450 125-450 0.3-3.0 42 650-750 258
UPVC630 355-630 0.2-2.0 48 650-750 399
UPVC32ss 4*(16-32) 4*(1.0-10) 24 180-250 85
UPVC63ss 2*(16-63) 2*(1.5-15) 24 180-250 96



Application:

Diameter 16mm-800mm series PVC pipe extrusion production line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industried such as agriculture and constructional plumbing, cable laying etc, it also named PVC Pipe Production Line, PVC Pipe making machine.


Competitive advatnages:

Easy to operate

Easy to maintanence

Low consumption

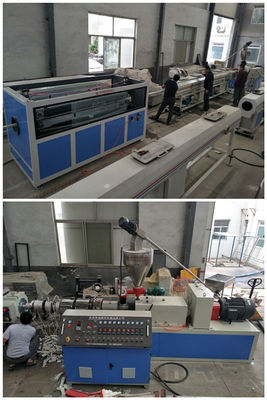

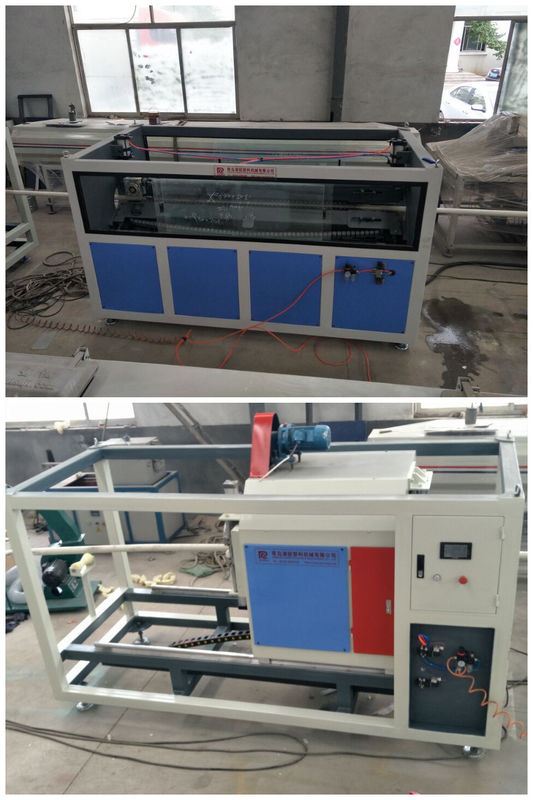

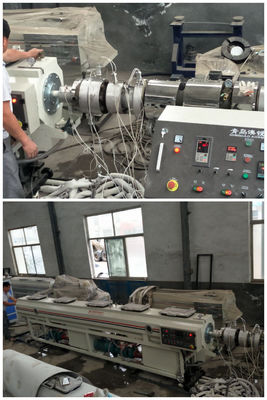

Machine display:

280mm Plastic Pipe Extrusion Line PLC PVC Pipe Extrusion Line 750kg/H 0280mm Plastic Pipe Extrusion Line PLC PVC Pipe Extrusion Line 750kg/H 1280mm Plastic Pipe Extrusion Line PLC PVC Pipe Extrusion Line 750kg/H 2280mm Plastic Pipe Extrusion Line PLC PVC Pipe Extrusion Line 750kg/H 3
