125kw PVC Plastic Pipe Extrusion Line 50kg/H With Two Cavity

125kw PVC Plastic Pipe Extrusion Line 50kg/H With Two Cavity
125kw PVC Plastic Pipe Extrusion Line 50kg/H With Two Cavity
125kw PVC Plastic Pipe Extrusion Line 50kg/H With Two Cavity 125kw PVC Plastic Pipe Extrusion Line 50kg/H With Two Cavity 125kw PVC Plastic Pipe Extrusion Line 50kg/H With Two Cavity

Large Image :  125kw PVC Plastic Pipe Extrusion Line 50kg/H With Two Cavity

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJSZ65x132
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

125kw PVC Plastic Pipe Extrusion Line 50kg/H With Two Cavity

Description
Brand Name: Aorui Condition: New
Screw Design: Double Screw Voltage: 380V 50HZ
Warranty Time: 1 Year Screw Material: 38Cr Moaia
Place Of Original: China Model Number: SJSZ65X132
Automatic Grade: Fully Automatic Certificate: CE Certificate
High Light:

PVC Plastic Pipe Extrusion Line

,

125kw Plastic Pipe Extrusion Line

,

Plastic Pipe Extrusion Line 50kg/H

PVC Pipe Extrusion Line With Two Cavity , PVC Pipe Production Line Twin Screw Extruder

Quick Detail of pvc double outlet pipe machine:

1. First class pope die was designed with many years experience

2. Perfect twin pipe vacuum sizing system

3. Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device

4 . Optional length set and accurate adaption stacker



Details of pvc pipe production line:

1. SKR-PVC transparent conduit pipe double-cavities extrusion line,it's the new type equipment independently researched by our company,which feeded PVC powder then extrude into transparent pipe.

2. Equipment composition:extruder,mold,vacuum box,haul-off machine,cutting machine and stacker.
3. The host control system adopts the PLC touch screen,which has high control precision,simple to operate and easy for learning.
4. The new generation of double cavity vacuum tank has the advantages of fast cooling, high transparency, and easy molding.
5. Double traction,double chipless cutting,high cutting accuracy,variable frequency speed regulation.
6. PVC transparent conduit pipe is a new mileage of household conduit pipe, It has high transparency and easy to be detected and found the problems.



Parameters of the PVC pipe extrusion line:



Extruder Pipe diameter(mm) Output(kg/hour) Total Power(KW)
SJZ-51/105 16-40 120 75
SJZ-55/120 16-40 150 90
SJZ-65/132 25-63 250 125



Application:

16-63mm four cavity pvc electric conduit pipe making machine with SJSZ65/132 as main extruder, specially designed for PVC electrical tube, water supply pipe extrusion .



Competitive advatnages:

1. One die double output, it greatly increase the productivity, meantime, it reduce the cost of machine, power consumption, save space of workshop
2. Speed of extruding, haul off are controlled by variable frequency inverter, stepless adjustingspeed and save power consumption.
3. Water cooling tank are made of high qulity stainless steel, no rusty, longer lifetime.
4. Temperature controlled by intelligent temperature controller, high precision, automatic control, save labor and easy to operate.



Machine display:

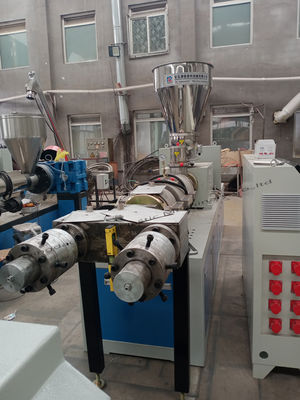

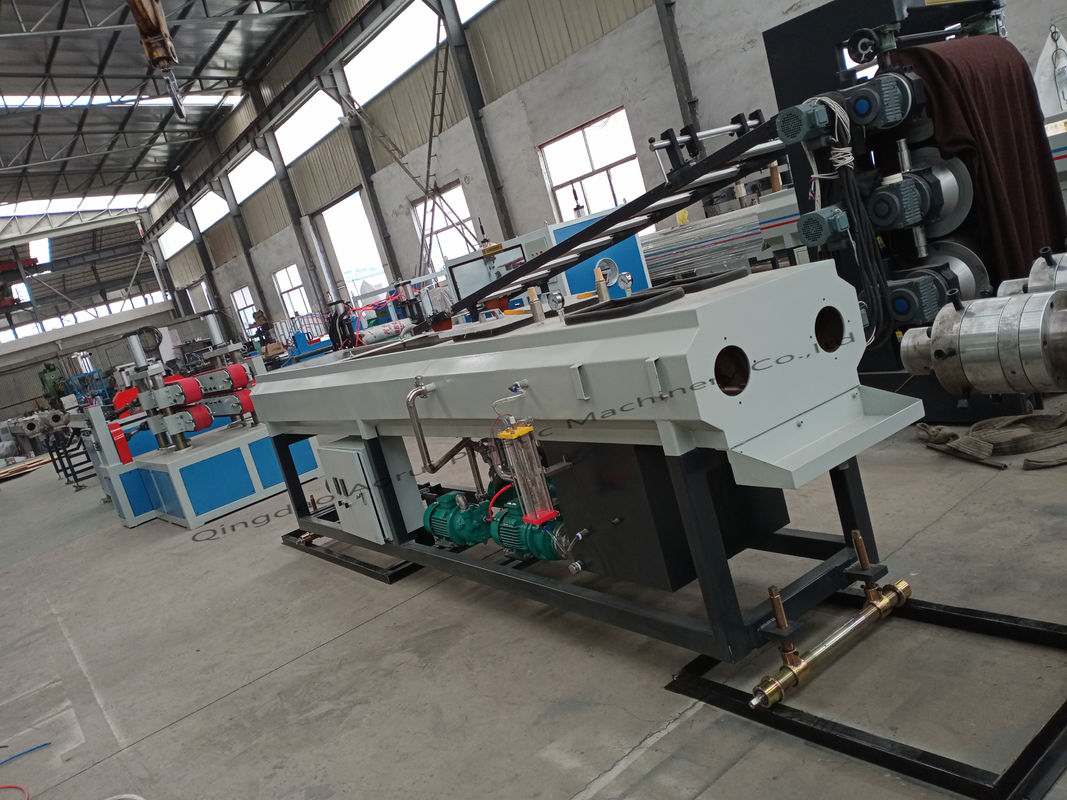

125kw PVC Plastic Pipe Extrusion Line 50kg/H With Two Cavity 0125kw PVC Plastic Pipe Extrusion Line 50kg/H With Two Cavity 1125kw PVC Plastic Pipe Extrusion Line 50kg/H With Two Cavity 2







Tag: PVC Pipe Making Machine with two cavity    Plastic Pipe Production Line  PVC Pipe Extrusion Machine
