20m/Min PA Corrugated Plastic Pipe Extrusion Line Good Flexibility

20m/Min PA Corrugated Plastic Pipe Extrusion Line Good Flexibility
20m/Min PA Corrugated Plastic Pipe Extrusion Line Good Flexibility
20m/Min PA Corrugated Plastic Pipe Extrusion Line Good Flexibility 20m/Min PA Corrugated Plastic Pipe Extrusion Line Good Flexibility 20m/Min PA Corrugated Plastic Pipe Extrusion Line Good Flexibility 20m/Min PA Corrugated Plastic Pipe Extrusion Line Good Flexibility

Large Image :  20m/Min PA Corrugated Plastic Pipe Extrusion Line Good Flexibility

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJ75/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

20m/Min PA Corrugated Plastic Pipe Extrusion Line Good Flexibility

Description
Condition: New Inverter: ABB
Motor Brand: Siemens Application: Corrugated Pipe
Warranty Time: 1 Year Temperature Controller Brand: Omron
Brand Name: Aorui Certificate: CE Certificate
Port Of Lading: QINGDAO Screw Material: 38Cr Moaia
High Light:

PA Corrugated Plastic Pipe Extrusion Line

,

20m/Min Plastic Pipe Extrusion Line

,

Good Flexibility Plastic Pipe Extrusion Line

High Speed PE Corrugated Pipe Production Line , PE Single Wall Corrugated Pipe Machine



Quick detial:

1. This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes.
2. Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc
3. They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc



Description:



1. Progress of PE PVC Single Wall Corrugated Pipe Extrusion Line :



Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing

2. It is mainly used to produce all kinds of corrugated pipes for agricultural water irrigation, and cable laying, etc.

3. Simplified structure, cost-saving maintaince, high durability.

4. Changing some parts can also produce M-PVC pipe, C-PVC pipe, inner spiral wall pipe, inner hollow wall pipe, formed core pipe.

5. Two sizes in one mould for small pipes, can reduce the mould cost, reduce the frequency of replacement of moulds and effectively improve production effiency.

6. PE, PP, PVC single-wall corrugated pipes canbe produced with different extruders

7. Human-computer interface is easy to operate, convenient and reliable.

8. Key components are made by the elite companies worldwide, like Siemens PLC system, Siemens motor, ABB inverter and etc.



Parameters of Wholesale Plastic PVC PP PE Single Wall Corrugated Pipe Tube Hose Production Extrusion Line





Material Machine model Extruder Pipe diameter(mm) Production speed(m/min)
PE/PP SNDPG-25 SJ45/30 φ11mm-φ25mm 20
  SNDPG-63 SJ55/30 Φ25mm-φ63mm 10
  SNDPG-90 SJ65/30 Φ50mm-φ90mm 5
PVC SNDPG-63 SJZ51/105 Φ25mm-φ63mm 5
  SNDPG-110 SJZ65/132 Φ50mm-φ110mm 3



Application of pe corrugated pipe machine:

They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine etc.

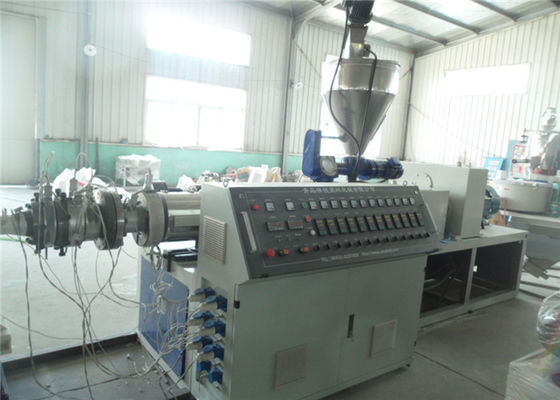

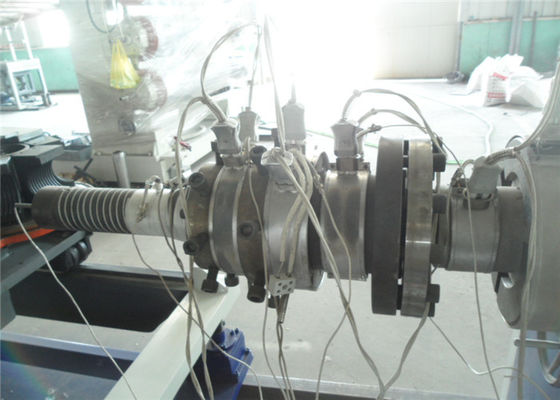

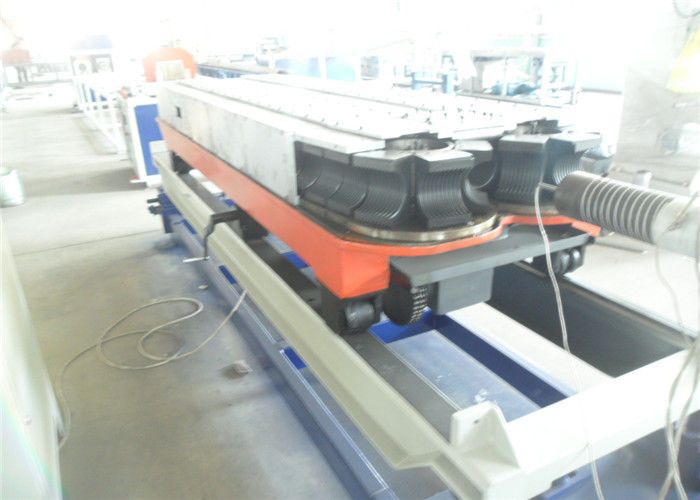

Machine display:

20m/Min PA Corrugated Plastic Pipe Extrusion Line Good Flexibility 0



20m/Min PA Corrugated Plastic Pipe Extrusion Line Good Flexibility 1
