HPVC Double Wall Dwc Pipe Manufacturing Machine CNC Finishing

HPVC Double Wall Dwc Pipe Manufacturing Machine CNC Finishing
HPVC Double Wall Dwc Pipe Manufacturing Machine CNC Finishing HPVC Double Wall Dwc Pipe Manufacturing Machine CNC Finishing HPVC Double Wall Dwc Pipe Manufacturing Machine CNC Finishing HPVC Double Wall Dwc Pipe Manufacturing Machine CNC Finishing

Large Image :  HPVC Double Wall Dwc Pipe Manufacturing Machine CNC Finishing

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJ90/33 SJ120/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

HPVC Double Wall Dwc Pipe Manufacturing Machine CNC Finishing

Description
Model Number: SJ90/33 Condition: New
Automatic Grade: Fully Automatic Delivery Time: 30 Days
Material Processed: PVC PP PE Brand Name: Aorui
Place Of Original: China Motor Brand: Siemens
Inverter Brand: ABB Screw Material: 38Cr Moaia
High Light:

HPVC Double Wall Pipe Manufacturing Machine

,

Dwc Pipe Manufacturing Machine

,

38Cr Screw Pipe Extrusion Line

PP PE PVC Double Wall Corrugated Pipe Machine , dwc Pipe Manufacturing Machine With Single Screw Extruder



Quick detial of corrugated pipe machine:

1. The inner and outer walls of the composite reinforced HPVC double wall corrugated pipe are hollow ring structure, which makes full use of the I-steel structure principle to improve the section inertia rectangle and high ring stiffness.

2. The product has the advantages of high strength, good toughness and light weight. Products are used in excavation projects, can replace MPP single wall corrugated pipe, CPVC electric cable pipe, PVC-U communication pipe and other pipes.



Description of double wall corrugated pipe machine:

1. Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.
2. Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.
3. Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change
4. Coiler :Single position or double position with torque motor.
5. Electrical parts: ABB inverter, Schneider contactor, RKC thermo controllers etc.



Technical parameters:



Item
Index
Drop Impact Test (13kg,2m,22oC)
9/10
Flattening test
The inner wall of the pipe is compressed to touch each other, the sample shall not have cracks or fractures.
Density (kg/m3)
≤1450
Flame retardancy / Fire resistance
Oxygen index≥32
Self extinguishing time≤30s
Volume resistivity Ώ.m
≥1x1011
Ring stiffness KN/M2
SN8≥8
SN25≥25
Oven tests
No delamination, no fracture
Static friction coefficient
≤0.35
Connection tightness
(0.005MPa water pressure, 20oC, 30nimutes) No leakage
Weather ability (outdoor pipe)
Color change level≥3

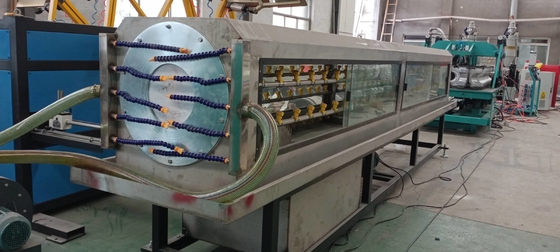

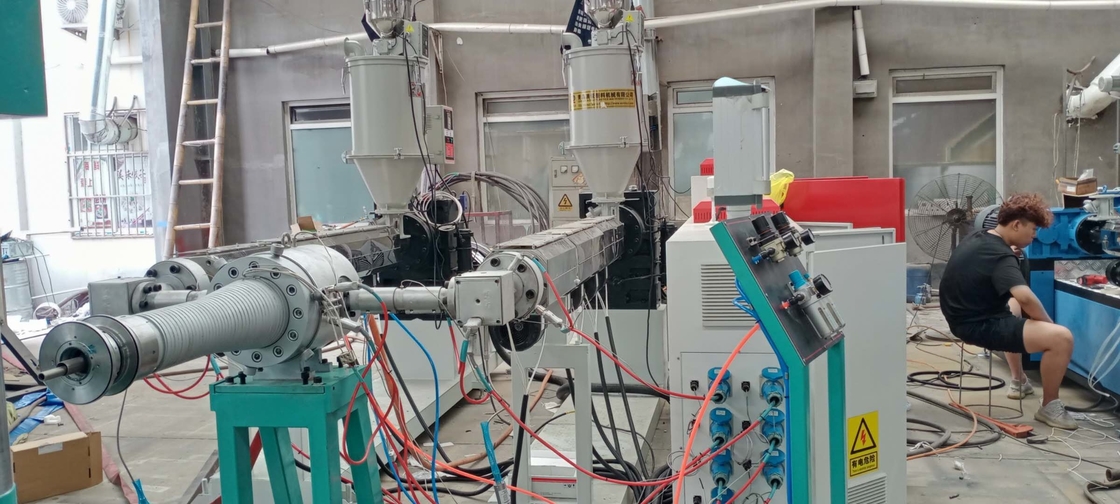

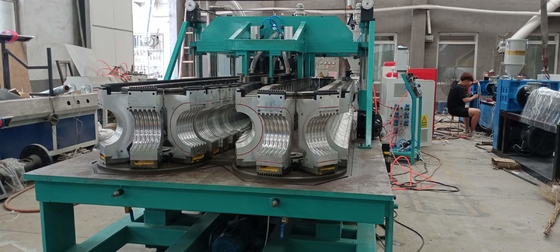

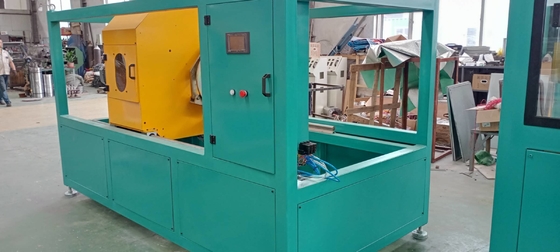

Machine display:

HPVC Double Wall Dwc Pipe Manufacturing Machine CNC Finishing 0



HPVC Double Wall Dwc Pipe Manufacturing Machine CNC Finishing 1



Tag: corrugated pipe machine   corrugated pipe extrusion line   corrugated pipe making machine
