200mm PVC Double Wall Corrugated Pipe Extruder Fully Automatic

200mm PVC Double Wall Corrugated Pipe Extruder Fully Automatic
200mm PVC Double Wall Corrugated Pipe Extruder Fully Automatic 200mm PVC Double Wall Corrugated Pipe Extruder Fully Automatic 200mm PVC Double Wall Corrugated Pipe Extruder Fully Automatic 200mm PVC Double Wall Corrugated Pipe Extruder Fully Automatic 200mm PVC Double Wall Corrugated Pipe Extruder Fully Automatic

Large Image :  200mm PVC Double Wall Corrugated Pipe Extruder Fully Automatic

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJ120/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

200mm PVC Double Wall Corrugated Pipe Extruder Fully Automatic

Description
Brand Name: Aorui Automatic Grade: Fully Automatic
Condition: New Plastic Processed: PP PE PVC
Screw Design: Single Screw Voltage: 380V 50HZ
Screw Material: 38Cor Moaia Warranty Time: 1 Year
Screw Diameter: 90mm LD Ratio: 33:1
High Light:

200mm Corrugated Pipe Machine

,

PVC Double Wall Corrugated Pipe Extruder

,

Fully Automatic Corrugated Pipe Extruder

63-200mm PVC Double Wall Corrufated Pipe Machine , PE PVC Double Wall Corrugated Pipe Extrusion Line



Quick detial of corrugated pipe machine:



1. Suitable to U-PVC,C-PVC,M-PVC ,PE, PPR,PP,HDPE,LDPE pipe extrusion.

2. HDPE Double Wall Corrugated Pipe Machine/Extrusion Line with various diameter and wall thickness, from 16-800mm.



Description of double wall corrugated pipe machine:

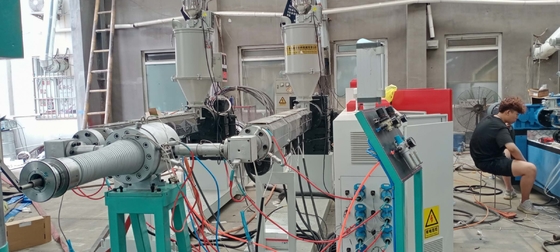

1. The plastic double wall corrugated pipe machine main composed of outer wall extruder, inner wall extruder, extrusion mold, corrugated forming machine, cooling unit, cutter, stacker.

2. Double wall corrugated pipe is mature product which has the advantage of low weight, low cost,
anti-corrosion,good ring stiffness and flexibility.

3. Extruder:Adopt L/D ratio 38:1 screw for virgin material. Adopt L/D 33:1 screw for recycled material. We also have choice of twin screw and barrel for other material such PVC powder, PP powder, etc. Provide suitable extruder for different customer requirements.

4. Die Head and Calibration sleeve.

Both outer layer and inner layer are extruded inside die head. Each material flow channel inside die head is placed evenly. Each channel is after heat treatment and mirrorpolishing to ensure material flow smoothly. Also die head provides compressed air between both layer.Calibration sleeve is used to cool inner layer to form smooth and flat pipe inside. Pressure water flows inside calibration sleeve to have good cooling effect. Vacuum is created on calibration sleeve surface when producing big diameter pipe, ensure inner pipe roundness.
5. Corrugator.
Corrugator is used to place and move corrugated mould. Vacuum is created to absorb outer layer into corrugated mould to form corrugate shape. By moving corrugated mould, pipe is also pulled out from corrugator.

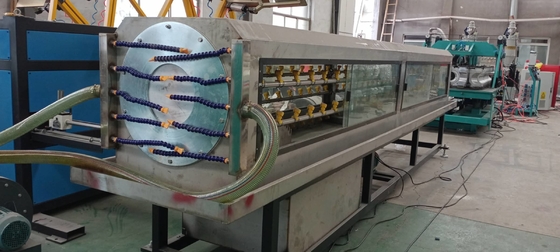

6. Cooling tank.
Cooling tank is used to cool pipe .
7. Cutter.
Cutter controlled by Siemens PLC, double knife cutter. Equipped with precise inspection device ensures the cutter accurately placing at the correct position of double wall corrugated pipe. Whole cutting process is accurate and fully automatic.



Technical parameters:

Model Pipe diameter, mm PVC Output, kg/h HDPE output, kg/h Max. speed, m/min Total power, kw
SFDWC-300 100-300 650 600 6.5 400
SFDWC-500 150-500 1200 1000 6.5 580
SFDWC-1000 200-1000 1300 1900 3.5 610
SFDWC-1200 600-1200 1400 2000 1.5 800
SFDWC-1500 1000-1500 - 2300 0.8 900

Usage:

1. Building industry : electrical conduit & sanitary duct
2. Automotive industry: Fuel line & wiring harness
3. Medical industry : breathing tubes
4. Civil works industry : double wall cable conduit
5. Agriculture: single and double wall drainage pipe


Machine display:

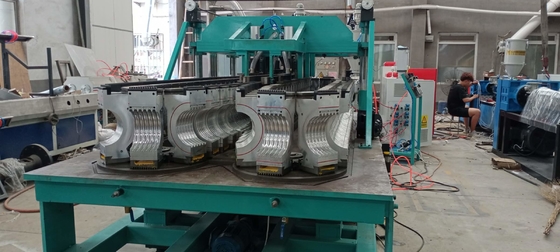

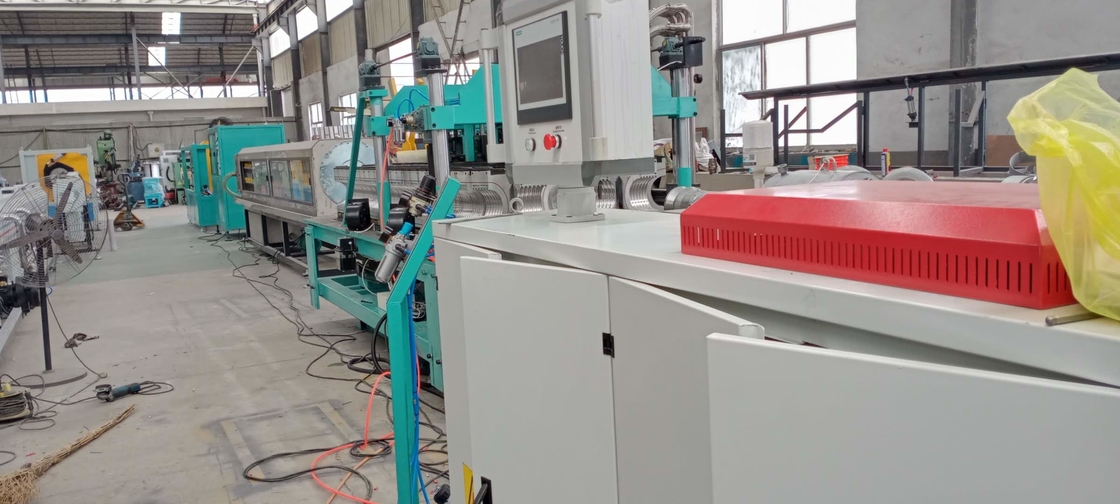

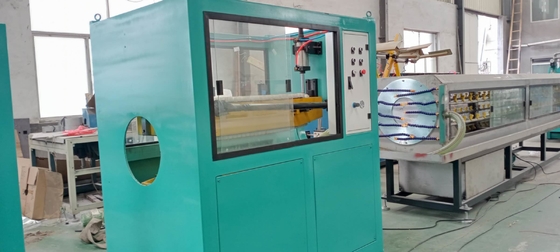

200mm PVC Double Wall Corrugated Pipe Extruder Fully Automatic 0200mm PVC Double Wall Corrugated Pipe Extruder Fully Automatic 1



Tag:Corrugated pipe extrusion line   double wall corrugated pipe machine
