PVC HDPE Plastic Corrugated Pipe Making Machine 380V 50HZ

PVC HDPE Plastic Corrugated Pipe Making Machine 380V 50HZ
PVC HDPE Plastic Corrugated Pipe Making Machine 380V 50HZ PVC HDPE Plastic Corrugated Pipe Making Machine 380V 50HZ PVC HDPE Plastic Corrugated Pipe Making Machine 380V 50HZ

Large Image :  PVC HDPE Plastic Corrugated Pipe Making Machine 380V 50HZ

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJ120/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

PVC HDPE Plastic Corrugated Pipe Making Machine 380V 50HZ

Description
Confition: New Plastic Processed: PP PE PVC
Machine Application: Corrugated Pipe Screw Design: Single Screw
Place Of Original: China Automatic Grade: Fully Automatic
Warranty Time: 1 Year Voltage: 380V 50HZ
Brand Name: Aorui Motor Brand: Siemens Beide
High Light:

HDPE Corrugated Pipe Making Machine

,

Corrugated Pipe Making Machine 380V

,

CE Single Screw Corrugated Pipe Making Machine

PVC PE Plastic Corrugated Pipe Making Machine , Double Wall Corrugated Pipe Extrusion Line



Quick detial:

1. PE double wall corrugated pipe production line adopts complicated mechanic head, double combated machine to production to provide material and spiral writhe.

2. For HDPE, you can choose high efficient single screw extruder.

3. For PVC, you can choose conical twin screw extruder or parallel twin downstream equipment.

4. The forming system of this line consists of mould and corrugator. The mould blocks can be easily changed and they may have air or water cooling system.



Description of double wall corrugated pipe machine:

1. This machine use PE material to produce big diameter double wall corrugated pipe. The pipe has light weight,strong impact resisitant capability,high ring stiffness and corrosion resistance. So widely used in the cover of electrical wire undergrond,city water draining pipe and up-down water transporting pipe in construction etc.

2. Precision finishing of the forming machine,die and mould,the pipe is featuredwith good quality, Ring type twin knives of cutting machine guarantee the pipe cross-section vertical and plane.



Technical parameters:

Model KPM×1500 KPM×1000 KPM×500 KPM×250 KPM×160 KPM×90
Structure Form Vertical Vertical Horizontal Horizontal Horizontal Horizontal
Applicable Raw Materials HDPE HDPE HDPE HDPE HDPE HDPE
Pipe Diameter Range 400-1500 250-1000 160-500 90-250 75-160 40-90
Max Extrusion Output 1200 850 600 350 200 100
Expansion Mode Belling-on-line,double-wall socket joint Belling-on-line,double-wall socket joint Belling-on-line,double-wall socket joint
Forming Speed 0.25-2.5 0.25-2.5 0.4-4 0.5-5 0.6-6 0.8-8
Axis Height 1600 1600 1150 1100 1000 1000
NumberofMoldBlocks(pairs) 42 42 40 48 57 48
Total lnstalled power 820 660 385 240 150 95

Usage:

1. Building industry : electrical conduit & sanitary duct
2. Automotive industry: Fuel line & wiring harness
3. Medical industry : breathing tubes
4. Civil works industry : double wall cable conduit
5. Agriculture: single and double wall drainage pipe

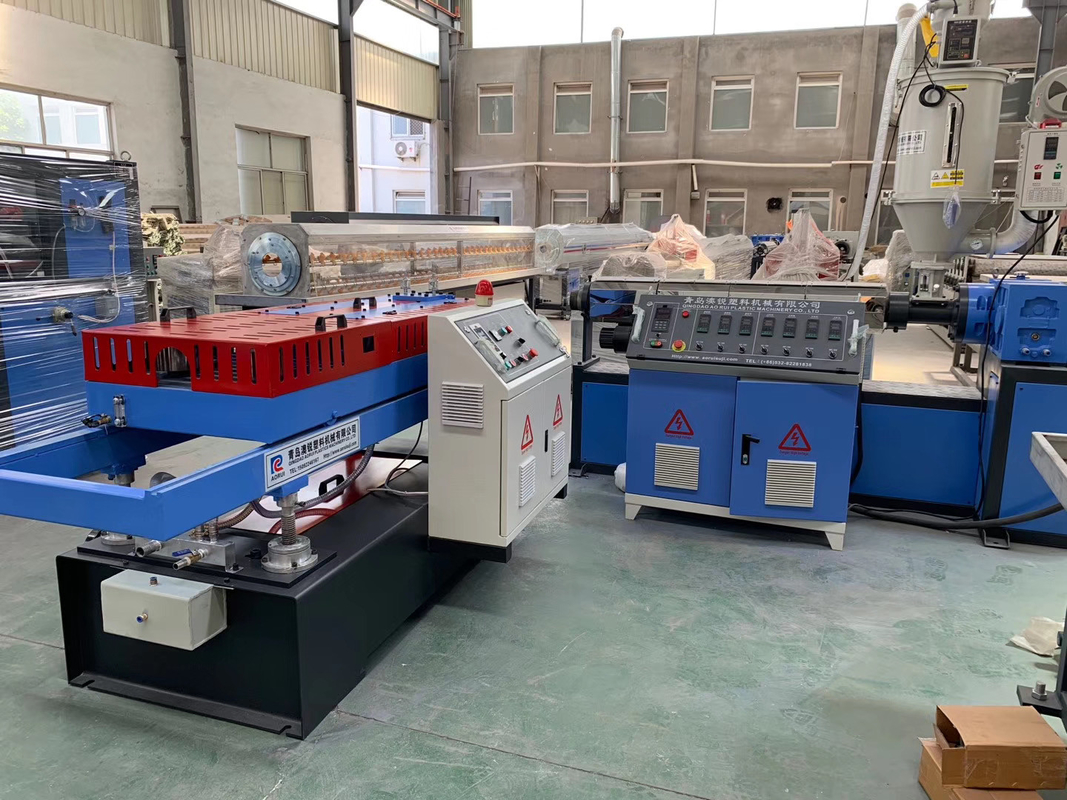

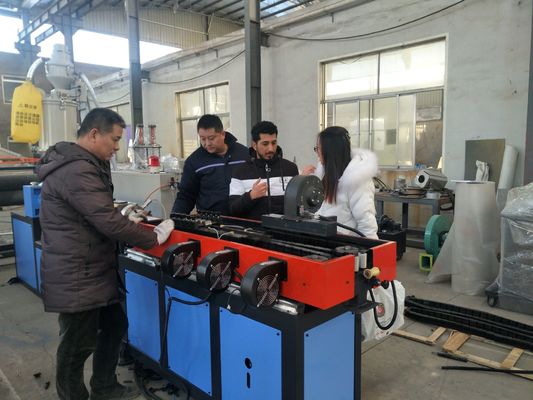

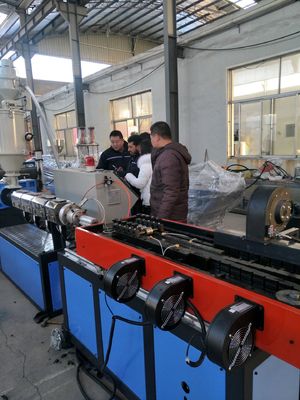

Machine display:

PVC HDPE Plastic Corrugated Pipe Making Machine 380V 50HZ 0



PVC HDPE Plastic Corrugated Pipe Making Machine 380V 50HZ 1



Tag:Corrugated pipe extrusion line   double wall corrugated pipe machine
