Double Wall Corrugated Plastic Pipe Machine Horizontal Structure

Double Wall Corrugated Plastic Pipe Machine Horizontal Structure
Double Wall Corrugated Plastic Pipe Machine Horizontal Structure Double Wall Corrugated Plastic Pipe Machine Horizontal Structure Double Wall Corrugated Plastic Pipe Machine Horizontal Structure

Large Image :  Double Wall Corrugated Plastic Pipe Machine Horizontal Structure

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJ120/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

Double Wall Corrugated Plastic Pipe Machine Horizontal Structure

Description
Condition: New Screw Design: Single Screw
Place Of Original: China Automatic Grade: Fully Automatic
Warranty Time: 1 Year Voltage: 380V 50HZ
Certificate: CE Certificate After-salese Service: Engineer Availiable To Service
Motor Brand: Siemens Application: Corrugated Pipe
High Light:

Double Wall Corrugated Plastic Pipe Machine

,

Horizontal Corrugated Plastic Pipe Machine

,

Telecommunication Cable Plastic Pipe Machine

Plastic Corrugated Pipe Machine , PE PVC Double Wall Corrugated Pipe Extrusion Line With CE Certificate



Quick detial:

1. These series lines can continuous produce PE, PP, PA, PB, PVC and some other single wall or double corrugated pipes. These pipes are high temperature bearing, corrosion resistance, durable, high strengthened and flexible.

2. There are widely used as protection sleeve in wiring cable of cars, electrical wire, telecommunication cable, machine tool wire, light wires and drainage pipe of air conditioner and washing machine, etc



Description of double wall corrugated pipe machine:

1. The ZC-600H double wall corrugated pipe extrusion line consists of five main parts: extruder, corrugator, cooling bath, automatic sawdust-free cutting machine and pipe unloading device.

2. PE/HDPE/PVC double wall corrugated pipe extrusion line adopts extruding and forming process, it has the featuresof reliable quality and high efficiency.Compared with other plastic pipe wall structure ,double wall corrugated pipe has excellent wall structure design,its low weight reach the lower production cost and improve the market competitiveness.

3. The pipe is widely used in various field instead of concrete pipe and iron pipes,because it has excellent features such as:easy connected and accessiories installed,and quality reliable.



Technical parameters:

Model KPM×1500 KPM×1000 KPM×500 KPM×250 KPM×160 KPM×90
Structure Form Vertical Vertical Horizontal Horizontal Horizontal Horizontal
Applicable Raw Materials HDPE HDPE HDPE HDPE HDPE HDPE
Pipe Diameter Range 400-1500 250-1000 160-500 90-250 75-160 40-90
Max Extrusion Output 1200 850 600 350 200 100
Expansion Mode Belling-on-line,double-wall socket joint Belling-on-line,double-wall socket joint Belling-on-line,double-wall socket joint
Forming Speed 0.25-2.5 0.25-2.5 0.4-4 0.5-5 0.6-6 0.8-8
Axis Height 1600 1600 1150 1100 1000 1000
NumberofMoldBlocks(pairs) 42 42 40 48 57 48
Total lnstalled power 820 660 385 240 150 95

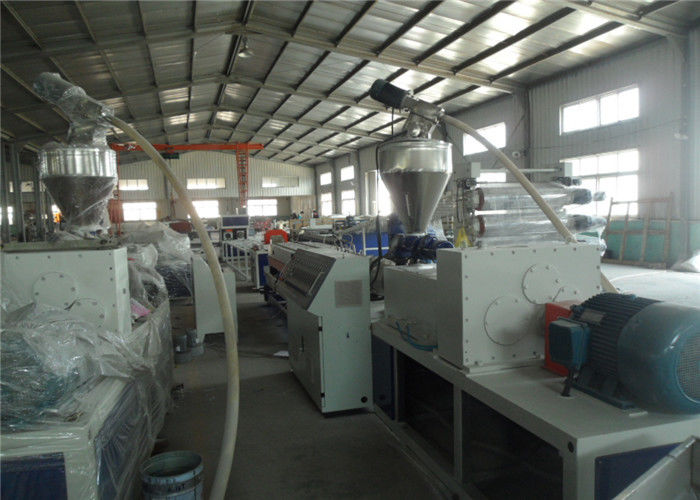

Machine display:

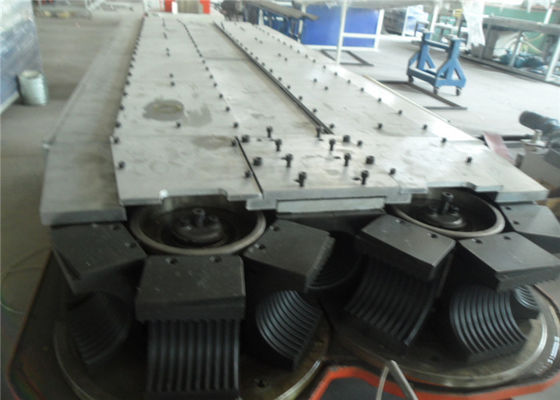

Double Wall Corrugated Plastic Pipe Machine Horizontal Structure 0

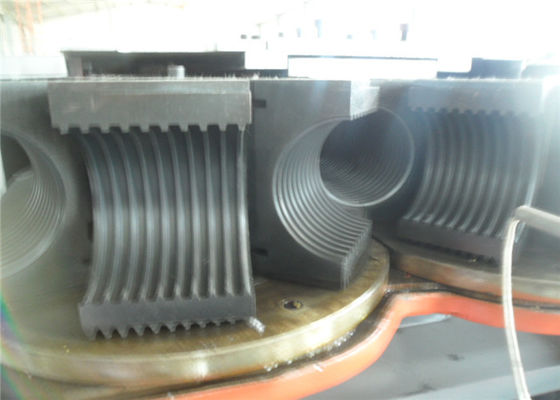

Double Wall Corrugated Plastic Pipe Machine Horizontal Structure 1



Tag:Corrugated pipe extrusion line   double wall corrugated pipe machine
