ID 110mm PP PE Plastic Pipe Extrusion Line 6kg/H Wear Resistance

ID 110mm PP PE Plastic Pipe Extrusion Line 6kg/H Wear Resistance
ID 110mm PP PE Plastic Pipe Extrusion Line 6kg/H Wear Resistance ID 110mm PP PE Plastic Pipe Extrusion Line 6kg/H Wear Resistance ID 110mm PP PE Plastic Pipe Extrusion Line 6kg/H Wear Resistance ID 110mm PP PE Plastic Pipe Extrusion Line 6kg/H Wear Resistance

Large Image :  ID 110mm PP PE Plastic Pipe Extrusion Line 6kg/H Wear Resistance

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJ120/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

ID 110mm PP PE Plastic Pipe Extrusion Line 6kg/H Wear Resistance

Description
Brand Name: Aorui Plastic Processed: PP PE
Voltage: 380V 50HZ Screw Material: 38Cor Moaia
Warranty Time: 1 Year Certificate: CE Certificate
Automatic Grade: Fully Automatic Place Of Original: China
Condition: New Motor Brand: Siemens
High Light:

ID 110mm Plastic Pipe Extrusion Line

,

Plastic Pipe Extrusion Line 6kg/H

,

Wear Resistance Plastic Pipe Extrusion Line

Double Wall PE Corrugated Pipe Extrusion Machine , Plastic Corrugated Pipe Production Line



Quick detial:

1. PVC 160mm Double Wall Corrugated Pipe Machine Extrusion Line of Qingdao Aorui Plastic Machinery Co., Ltd. The tube production adopts the direct extrusion technology, which has high production efficiency and reliable quality. The products are made of PE, PP, PVC and other raw materials are produced.

2. Due to its excellent pipe wall structure design, PE/PP/PVC Double Wall Corrugated Pipe Producing Line/Plastic Corrugated Pipe Machinehas the characteristics of high ring rigidity, light weight, high pressure resistance, good toughness, corrosion resistance, good wear resistance, convenient construction, low installation cost, long service life, etc.,



Description of double wall corrugated pipe machine:

1. Extruder:Adopt buttfer type forced feeding section, main drive motor power can be 30% reduction.Extruder flow chnnel section optimization,to ensure pipe low temperature, low voltage production.

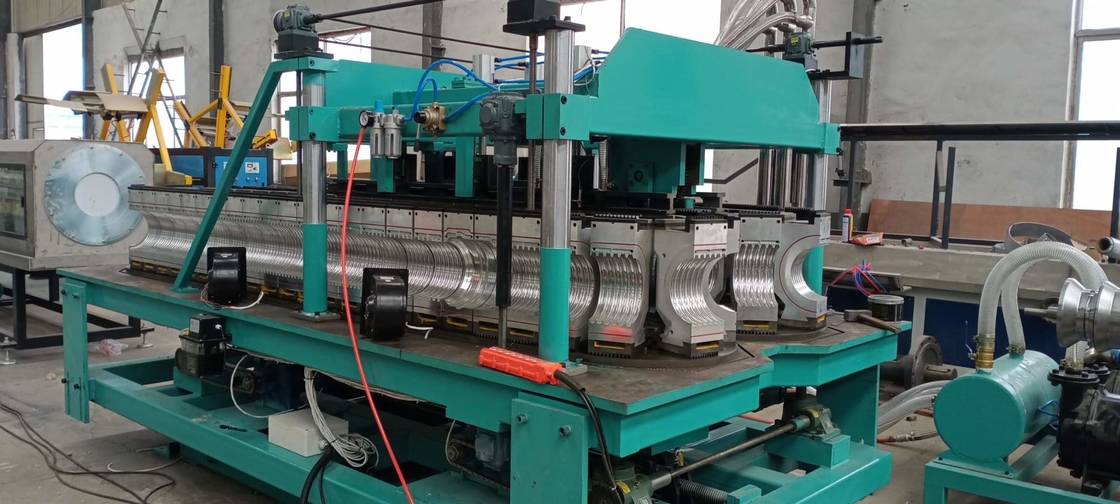

2. Forming machine:Closed circulation pressure water cooling system, don't need to remove or insert a water pipe to replace a module.No platform design, different specification module has same central height.

3. Mold:The optimized design of the cooling cavity wall ensures the maximum cold cross-sectional area,so that the cooling water and the mold have sufficient contact surface, and the cooling effciency is high.

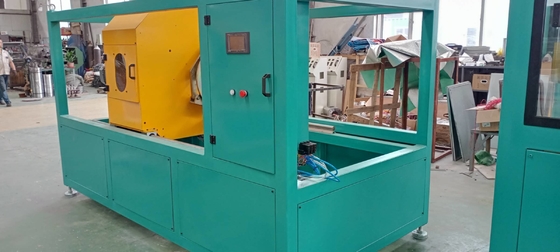

4. Cutter:Double-knife cutting removes process waste pipes to ensure seamless connection of pipes.Precise trigger device to ensure continuous and precise cutting of the cutter.Equipped with dual hydraulic system, stable running.

5. Stacker: High motor adjustment to reduce artifical fatigue.Can automatically turn over pipes.



Technical parameters:





Pipe diameter
(ID. mm)

110

160

200

225

300

400

500

600

800

SN8
(kg/m)

0.9

1.7

2.1

2.8

5.1

8.0

12.5

18.5

31

SN4
(kg/m)

0.75

1.5

1.8

2.5

4.2

6.0

10.0

13.5

25

Line speed
(m/min)/
Capacity (kg/h)

≥6

≥5

≥4.2

≥3.8

≥2.8

≥1.9

≥1.3

≥1.1

≥0.8

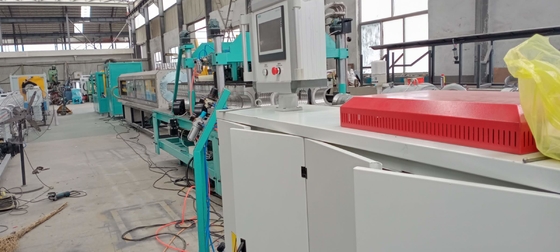

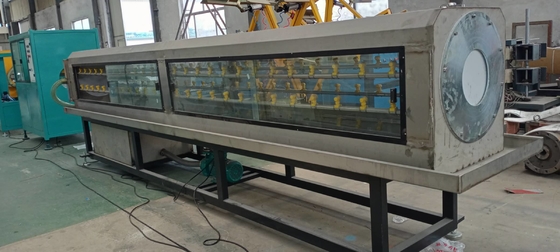

Machine display:

ID 110mm PP PE Plastic Pipe Extrusion Line 6kg/H Wear Resistance 0ID 110mm PP PE Plastic Pipe Extrusion Line 6kg/H Wear Resistance 1



Tag:Corrugated pipe extrusion line   double wall corrugated pipe machine
