Product Details:
|
| Condition: | New | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Plastic Processed: | PVC WPC | Voltage: | 380V 50HZ |
| Warranty Time: | 1 Year | Certificate: | CE Certificate |
| Motor Brand: | Siemens | Place Of Original: | China |
| Screw Material: | 38Cr Moaia | After-sales Service: | Engineer Availiable To Service |
| High Light: | Fully Automatic Plastic Profile Extruders,PVC WPC Profile Extrusion Machine,120kg/h Plastic Profile Extruders |
||
Plastic Profile Machine , Plastic Profile Extruders , PVC WPC Profile Extrusion Machine
Description of PVC Profile Machine:
1. SJSZ65X132 pvc profile extrusion machine main use for making pvc plastic profile board.
2. PVC Profile extrusion machine adopt SJSZ65X132 conical twin screw extruder, specially used for PVC powder material extrusion, plasticizing, molding. It has the charateristics of high output, good plasticizing effect and low energy consumption.
3. The uniform extrusion of raw materials can be achieved by using conical twin screw to rotate outwardly and controlling feeding speed with quantitative feeding screw.
4. pvc profile sizing cooling adopts vacuum sizing, circulating water cooling system,vacuum pipe and cooling water pipe are connected by cooper wire. The cooling effect can be ensured while the vacuum degree is ensured.
5. Profile traction adopts up and down flat block traction track mechanism, and can increase the different traction glue block to meet the traction of the profile, will not extrude the sheet material, so that the product deformation.
6. At the same time, for the extrusion line of the groove, the double track traction structure is adopted to solve the problem of the two sides are not synchronized.
7. The crawler lift is controlled by cylinder, with the function of adjustable pressure, so as to control the contact area and pressure of the crawler to the plate and profile.
8. Cutting machine adopts lifting cutting machine, synchronous control with the host extrusion, with accurate cutting.
Technical parameter:
| Model/data | Max width | Extruder model | Motor power | Max capacity |
| MT180 | 180mm | MT51/105 | 22kw | 120kg/h |
| MT240 | 300mm | MT65/132 | 37kw | 260kg/h |
| MT600 | 600mm | MT80/156 | 55kw | 400kg/h |
| MT800 | 800mm | MT92/188 | 90/100kw | 650kg/h |
Application of pvc profiles:
1.PVC profile production line can be used to produce plastic steel profile, plywood, windowsill board, hanging wall board, wave board, wood plastic floor, guardrail, door panel, door hood and other building materials.
2.Widely used in PVC plastic steel doors and Windows, construction, decoration and other fields. PVC profile with light, flame retardant, moisture-proof, waterproof, heat preservation, sound insulation, shock absorption and other excellent functions. The surface can be printed, coated or made into a variety of colors. PVC profiles with functional additives have the characteristics of anti-aging, anti-uv, anti-corrosion, high strength and low price. It can partially replace aluminum profiles and steel products.
Our advantages:
The machine is stable running, high output, low consumprion
The screw service life more than 360 days

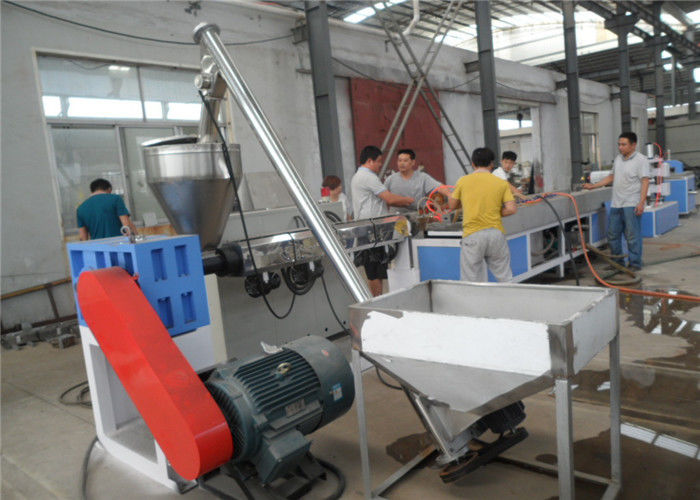

Machine dispaly:
