Wood Plastic Composite Extrusion Line
Created with Pixso.

Two Conical Screw Wood Plastic Production Line , WPC Extrusion Machinery

Two Conical Screw Wood Plastic Production Line , WPC Extrusion Machinery

Brand Name: AORUI
Model Number: SJSZ80/156,SJSZ92/188
MOQ: One set
Price: Negotiable
Payment Terms: T/T L/C Western Union
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
CE UL CSA ISO9001
Condition:
New
Screw Design:
Double Screw
Automatic Grade:
Fully Automatic
Type:
WPC Production Line, WPC Extrusion Line
Certificate:
CE ISO9001
Warranty:
1 Year
Raw Material:
WPC
Voltage:
380V 50HZ
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets per month
Highlight:

WPC Extrusion Line

,

Wood Plastic Composite Production Line

Product Description

Two Conical Screw Wood Plastic Production Line , WPC Extrusion Machinery



Quick detail:

1. The specially designed screws ensure high plastitication rate.
2. The precise temperature control and special moudles ensure precise thickness and flatness control.
3. The thickness of sheet is recisely adjustable by screws & oil pressure wheels.
4. The machine equipped with meter cunter can set the length of board precisely .
5. Through printing or sticking film on the surface , the board can be used in furniture & fixture, bathroom ,construction Industry ,decoration material ,advertising material ,automobile, etc.



Description:

1.Process flow:

PVC material + wood flour + necessary ingredient > WPC mixing equipments--> WPC board Extrusion Line-->WPC board profile-hot transfer printing--> final door board

2.wpc foam board making machine with high capacity, high speed, conical twin screw extruder.

II.Extrusion Line including detailed items as following:

(i) 80/156 Conical twin-screw extruder 1set

(ii) Die heater 1set

(iii) Shaping machine 1set

(iv) Rubber-roller type haul-off machine 1set

(v) Lengthways cutting machine 1set

(vi) Horizontal cutting machine 1set

(vii) Stacker 1set

(viii) Spring conveyor 1set



Specifications:

Equipment Type

Plate Width

(MM)

Plate Thickness

(MM)

Total Power

(KW)

Capacity

(KG/H)

Outline Dimension

(MM)

Weight

(KG)

SWMSJ-1 600 1-20 76 60-120 18000*2000*2800 4800
SWMSJ-2 1200 1-20 85 80-350 20000*2200*3200 5600
SWMSJ-3 1600 1-20 120 200-400 25000*2300*3800 7800



Application:

Could be used as decoration board,kitchen board,construction board.



Competitive Advantage:

Easy to operate

High performance

Long service life

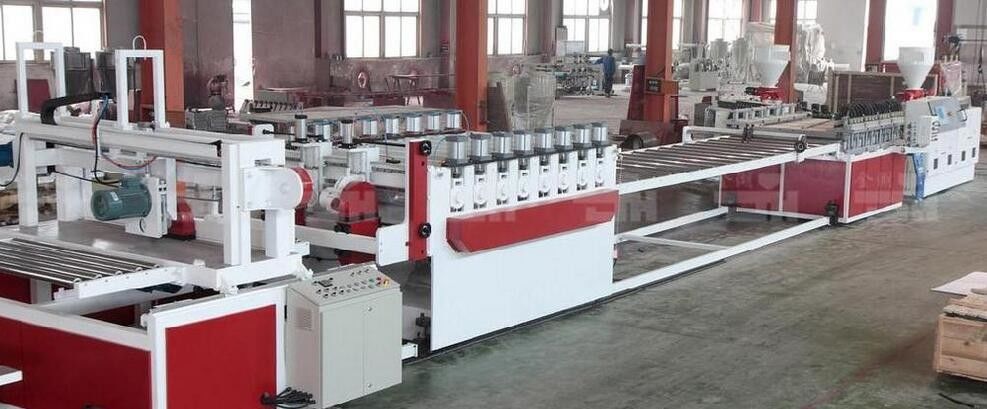

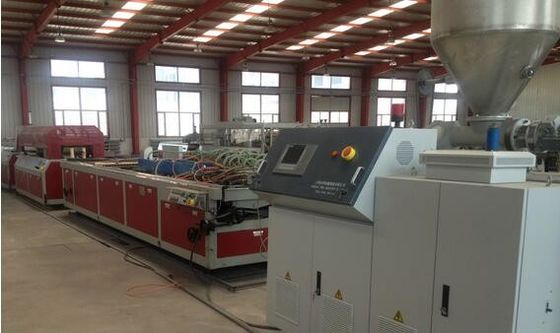

Machine diplay:

Two Conical Screw Wood Plastic Production Line , WPC Extrusion Machinery 0
