Product Details:
|
Plastic Processed: | PP PE | Capacity: | 150-1500KG/h |
---|---|---|---|
Type: | Plastic Production Line, Plastic Extrusion Line | Screw Design: | Single Screw |
Automatic Grade: | Full Automatic | Application: | Pipe |
High Light: | Plastic Granulating Machine,Plastic Recycling Machine |

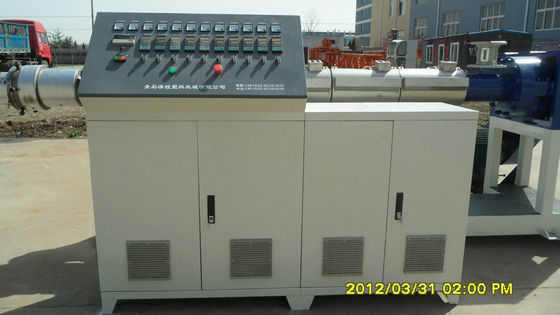

Plastic Pipe Extruder 150 - 1500KG/h For PE Sewage Pipe
Quick detail:
1. type:PP/PE water and gas supply pipe extruder,PP/PE drainage pipe machine
2. process type:electrical pipe extrusion machinery
3. Pipe material : PP PE
4. Application: water and gas supply pipe
5.Diameter : 16-1600mm
6.Product capacity : 150-1500KG/h
7.usage:construction and municipal drain outdoor gas pipe, agricultural irrigation, threading pipe, wire,
cable and optical cable, drainage pipe, etc
Description:
1.PE sewage pipe extrusion machine use to produce many pipe,like PPR cold water and hot water pipe,
single and double pipe, PE/PP/PE-RT/PEX pipe, silicon core pipe etc. Using single extruder to produce
concolorous pipe or many extruder to co-extruding many layer of different color.
2.Main features: Adopt high-efficiency, special screw to ensure the stable quality of high extrusion output.
Lattice backet die achieve low melting pressure and plasticizing temperature to get large processing range.

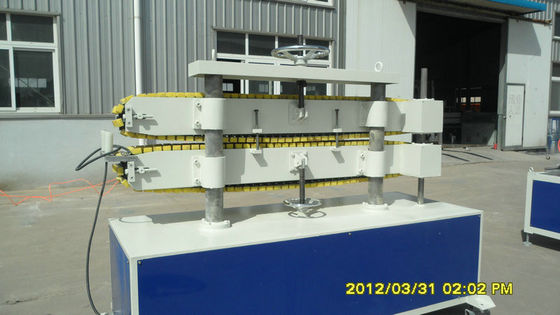

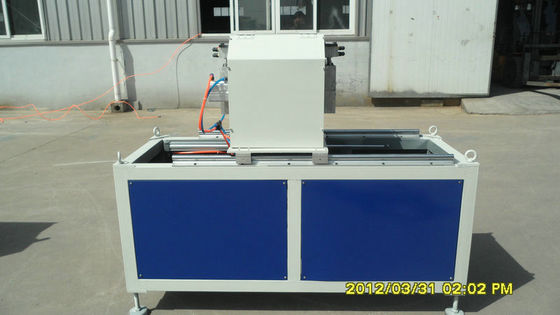

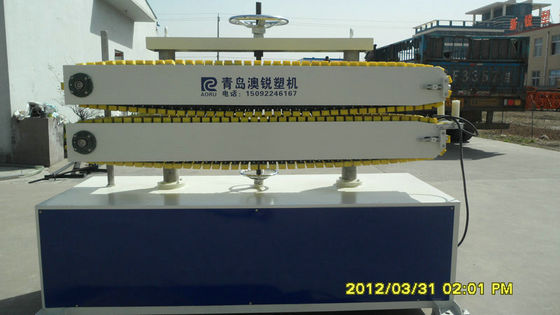

Tractor caterpillar is durable, strong abrasion resistance, stable high speed of traction power. Dust free
cutting machine with low noise and high precision make the pipe cutting edge smooth and flat.
3.Technical Parameter:
Model |
PipeDiameter (mm) |
Extruder Model |
ScrewSpeed (r/min) |
Production Speed (m/min) |
Output (kg/h) |
Power (kw) |
SSG-32PR |
Ø16-32 |
SSJ-45 |
40-100 |
4-10 |
100 |
50 |
SSG-63PR |
Ø16-63 |
SSJ-65 |
40-100 |
4-10 |
150 |
65 |
SSG-63PR |
Ø16-63 |
SSJ-65 |
40-100 |
4-10 |
150 |
100 |
SSG-160PR |
Ø75-160 |
SSJ-90 |
30-90 |
2-8 |
200 |
150 |

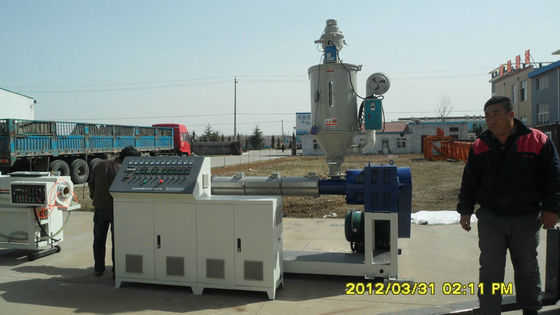

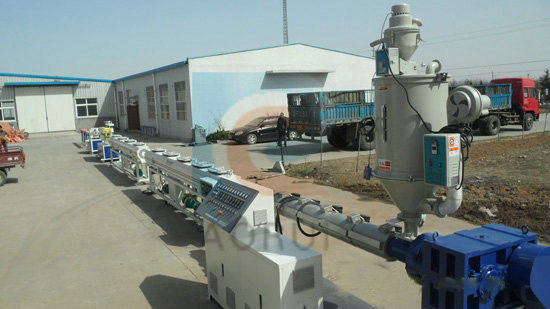

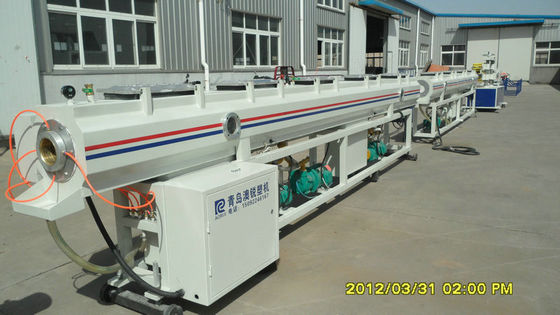

4.Process flow:Raw material + additive → mixing → vacuum feeder → hopper dryer →
single screw extruder → marking line extruder → mould and calibrator → vacuum calibration tank

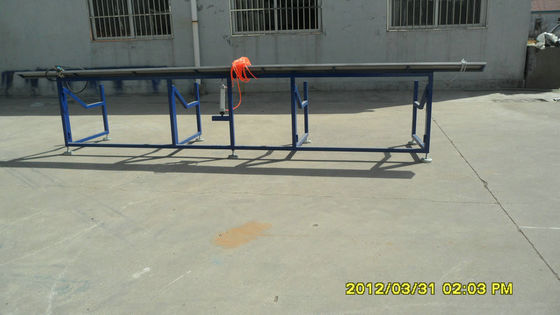

→ cooling tank → haul off machine → printer → cutting machine → pipe storage shelve
Applications:
1.field;construction and municipal drain outdoor gas pipe, agricultural irrigation, threading pipe, wire, cable
and optical cable, drainage pipe, etc
2.usage:transportation between cities and in water supply projects of urban areas.
3.function:transportation, borehole high-pressure water supply, crude oil and natural gas
transportation,water supply and drainage of daily life, power and chemical plants, and urban construction
Specifications:
Model |
SJ65/30-33 |
SJ75/30-33 |
Pipe dia. |
Φ20-63 |
Φ90-200 |
Screws dia.& ribbon width |
Φ65,33:1;Φ65,30:1 |
Φ75,33;1Φ75,30:1 |
Output |
120kg/h |
220kg/h |
Linear velocity(max) |
10m/min |
4m/min |
Installation capability |
58 |
85 |
Productivity for year(meter) |
350 |
150 |
Competitive Advantage:
PE water pipe production line
1.high extruding velocity
2.effective plasticization
3.three co-extruding die
4.low cost
