Product Details:
|
| Type: | Plastic Production Line, Plastic Extrusion Line | Screw Design: | Single Screw |
|---|---|---|---|
| Automatic Grade: | Full Automatic | Application: | Board |
| Plastic Processed: | PP PE PC PVC | Power: | 240KW |
| Capacity: | 200-300KG/h | ||
| High Light: | Panel Production Line,Plastic Board Production Line |
||

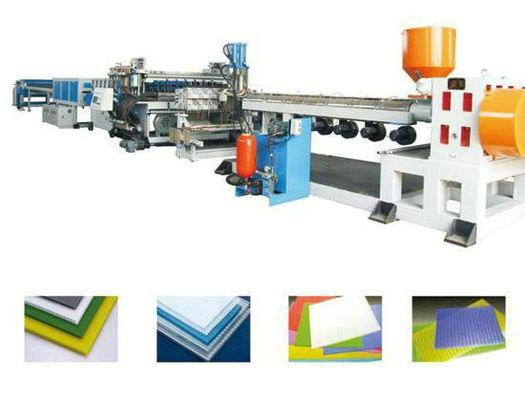

PP PE PC PVC Board Extrusion Line , Single Screw Extruder Machine
Quick detail:
Material : pp pe pc pvc
Screw design : single screw
Screw number:SJ90/33 SJ120/33
Voltage:380v/50HZ
Product: pp pe pc hollow board
Board width: 1220-2100mm
Board thickness:2-16mm
Capacity: 200-300KG/h
Motor power :135KW
Power:240KW
Warranty:1year
Condition : New
Afterserivce: send our engineer
Description:
PC(polycarbonate) sunshine plates include ordinary double-layer sunshine board,multi-layer sunshine
board, ordinary Crystal drill sunshine board , PC endurance board. So far, the PC sunshine board is
recognized and adopted in the world as an ideal decorate material.
with the advantage of light weight, of course it is high intensity, damp proof, water proof and
anticorrosion. Usually there is less solid plate for proof. Of course you can choose depend on you.PC
sunshine board are one of the smaller Expansion coefficient in the synthetic resin,Averag
0.065mm/m.°C.The heat conductivity of PC sunshine board have a big difference with General synthetic
resin,is 1/4 of glass,1/300 of iron,1/1000 of almium,1/12000 of copper,belong to the super material for
keeping temperature. especially multi-layer sunshine board is better.
Extruder:
The specially designed screw and the advanced controlling system ensure excellent plasticization, high
output and stable extruding.
Screen changer: Quick screen changer of hydraulic system ensures the short course of screen changing.
Mould: Mould adopts high-quality alloy steel and throtting device to guarantee even thickness of the plate.
Vacuum calibrating table: Heating exchanging and cooling system of quick speed in calibrating system
alternate effectively and ordinally with vacuum system, which ensures calibrating precision.
Tractor: There are two tractors. The first one is of high power, high reduction ratio, multi-roller type, well
low-speed operation, and in addition it is equipped with edge-cutting device to ensure the valid width and
smooth cut of the edges.
Stress remover: The advanced large area conductive heating mode can effectively remove the stress of
plate and further improve planeness of the plate.
Cutting machine: Accurate instant length-fixed cutting and automatic up-down discharging system
combined
Applications:
1) Telephone booths
2) Road signs and advertisements
3) Billboards on lamp boxes
4) Lighting and partition walls for banks, hospitals and stations
5) Greenhouses for vegetables, zoos, aquatic products
6) Sound and heat insulation for expressways
7) Instrument and war industries - windscreens, army shields
Specifications:
|
Equipment type |
Pushing machine |
Products Width(mm) |
Product thickness (mm) |
Linear velocity (m/min) |
Output(kg/h) |
||
|
PC |
PP |
PE |
|||||
|
JG-1200 |
Φ90/35 |
1100 |
2-10 |
0.4-4 |
150 |
150 |
180 |
|
JG-1400 |
Φ100/35 |
1300 |
2-10 |
0.6-4 |
220 |
220 |
230 |
|
JG-1600 |
Φ100/35 |
1500 |
2-10 |
0.4-4 |
220 |
220 |
230 |
|
JG-2000 |
Φ120/35 |
1900 |
2-10 |
0.4-4 |
350 |
350 |
400 |
|
JG-2200 |
Φ120/35 |
2100 |
2-16 |
0.4-4 |
350 |
350 |
400 |
Competitive Advantage:
1.high output, low maintenance
2.imported electric device,Siemens
3.good after service
