PP Strapping Band Machine , Single Screw Strap Banding Machine

PP Strapping Band Machine , Single Screw Strap Banding Machine
PP Strapping Band Machine , Single Screw Strap Banding Machine PP Strapping Band Machine , Single Screw Strap Banding Machine PP Strapping Band Machine , Single Screw Strap Banding Machine

Large Image :  PP Strapping Band Machine , Single Screw Strap Banding Machine

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: PP65
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

PP Strapping Band Machine , Single Screw Strap Banding Machine

Description
Capacity: 60-130kg/h Plastic Processed: PP
Screw Design: Single Screw Width: 4-19mm
Name: Strapping Band Machine, Strapping Band Making Machine Voltage: 380V/3P/50HZ, 600V/3P/60HZ, 220V/3P/60HZ
Strap Thickness: 0.4-1.8mm Condition: New
High Light:

Strapping Band Making Machine

,

Strap Making Machine

PP Strapping Band Machine , Single Screw Strap Banding Machine



Quick detail :

1.The features of line are as follows: screw with compression ratio especially for PP/PET, gradually changing

diameter and deeper thread groove at the melting part; gearbox with hardened gears;

2.Die can be precisely adjusted to ensure stable production and smooth surface of straps; stainless steel cooling trough with four thermo treatment processes displaces the traditional one; haul off rollers with bigger size ensure the quality of products;

3.New rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection; laser embossing roller makes clear and even patterns.



Description:



Characteristic of our PET packing strap machine:

1. The raw material treatment is by our CSG serious dehumidify and dryness system, it ensures the

humidity in raw material less than 80PPM.

2. Closed circulation feeding system prevent the material from exposure on air to keep the dryness of raw

material.

3. The screw is specially designed for PET application, it consists of separate and mixing part to keep the

even plastication, also by fixed material feeding system, the extrusion is stable, which ensures the good

dimension of PET strap.

4. The machine can produce 1/2/4 strap at the same time.

5. The mould is specially designed, equipped with two-stage filter.

6. Constant temperature heating device provide even cooling environment for PET strap to raise the tensile

strength performance.

7. Anneal treatment for finished PET strap to remove the part remaining stress to keep good shap



Specifications:

Model

SJ-65

SJ-80

SJ-90

Extruder

SJ-65/28

SJ-80/28

SJ-90/28

Productivity

60-100kg/h

80-120kg/h

120-150kg/h

Drive Motor

22kw

30kw

55kw

Two-station

Winder

80-120m/min,adjustable

Strap Size

Width:5mm-20mm

Width:10mm-25mm

Width:20mm-35mm

Thickness:0.36mm-1.0mm

Thickness:0.5mm-1.3mm

Thickness:0.5mm-1.8mm

Installed Capacity

about40kw

about 60kw

about80kw

Line Dimension

26m×2m×2.2m (L×W×H)

 26m×3m×3m   (L×W×H)

 26m×5m×3.5m  (L×W×H)



Application of pp strap band machine:

Main use to produce pp strap band.



Competitive Advantage:

1, The whole line arrangement is reasonable, easy to operate .

2, The whole production line adjusted by frequency converter, to save energy .

3, PP special screw design, high output, is quite smooth .

4, Unique material embryo and sink cooling, angle suitable, embryo without deformation .

5, Using belt conveyor, the embryo  cooling out from the tank is quite stable .

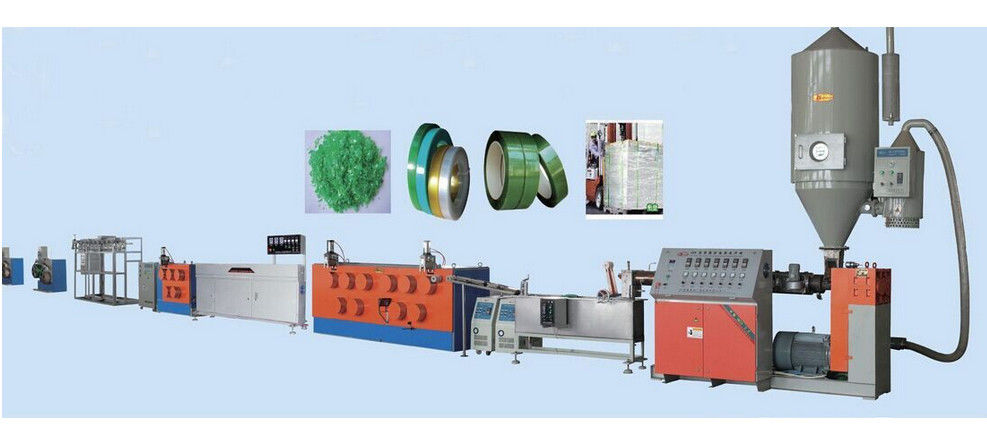

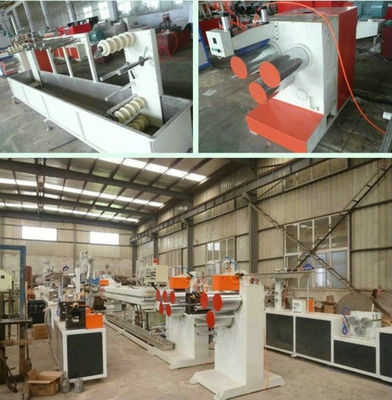

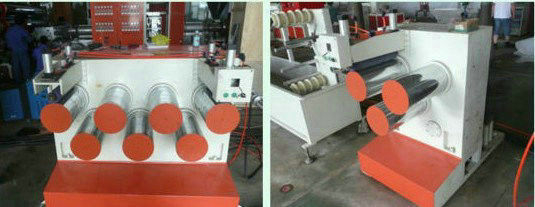

Machine display:

PP Strapping Band Machine , Single Screw Strap Banding Machine 0
