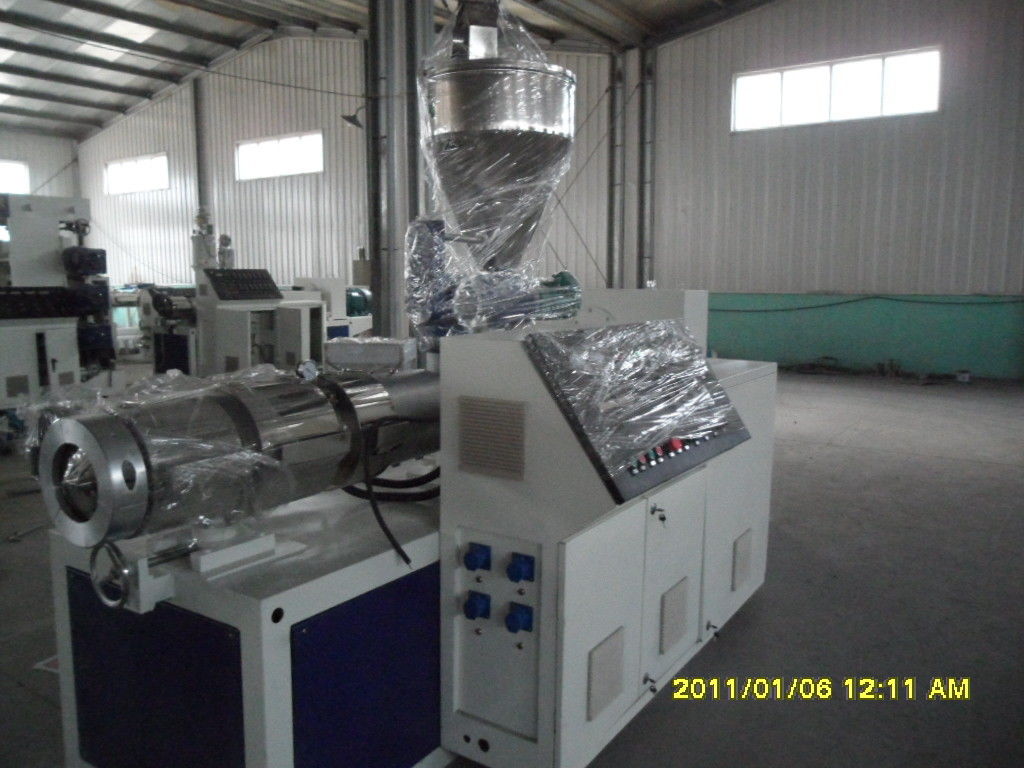

PERT Floor Heating Pipe Plastic Pipe Extrusion Line 380V 75KW 50HZ

Brand Name:	AORUI
Model Number:	SJ65/33
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C Western Union
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China mainland

Certification:

CE UL CSA

Plastic Processed:

PERT

Power:

75KW

Voltage:

380V50HZ

Speed Line:

10-25m/min

Type:

Plastic Production Line, Plastic Extrusion Line

Screw Design:

Single Screw

Automatic Grade:

Full Automatic

Application:

Pipe

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

plastic pipe extruder machine

plastic pipe extrusion machine

Product Description

PERT Floor Heating Pipe Plastic Pipe Extrusion Line 380V 75KW 50HZ

Quick detail:

Weight:8t

Power: 380V50HZ

Production line speed: 10-25m/min

Install power: 75KW

Power actual consumed :60KW

Screw type: single screw

After-sales Service Provided: Engineers available to service machinery overseas

.mould: change molds to produce different pipe products.

Minimum order: one set

certification: CE,CSA,UL,ISO9001

port: Qingdao port

voltage: 380V/3P/50HZ,600V/3P/60HZ,220V/3P/60HZ,or according to customer’s requirement.

Process type: extruding machine

Product: floor heating pipe

Description:

PERT pipe production line

1) Special single screw extruder for polyolefin, having high extruding velocity and effective plasticization

2) Separation mixing screw specialized for polyolefin

3) Specially designed three co-extruding die, reasonable channel, smooth outside and inside wall, and

little internal stress

4) Producing pipe limit Φ20-Φ160mm, manufacture velocity up to 16m/min

5) May be used to produce HDPE silicon core tube, ordinary PP-R,PE and PEX pipes

6) Low cost: the cost of nanometer & anti-virus pipe is merely increase 5-10% on the ordinary pipe basis

Specifications:

Model	SJ65/30-33
Pipe dia.	Φ20-63
Screws dia.& ribbon width	Φ65,33:1;Φ65,30:1
Output	120kg/h
Linear velocity(max)	10m/min
Installation capability	58
Productivity for year(meter)	350

Applications:

It can in addition to the radiant floor heating, including residential, shopping mall, hotel, hospital, stadium

and so on with floor heating pipe; Can also be applied in the hot water supply on the one hand, including

bath tube, hot spring water, indoor swimming conveyer system, and can also be applied in the field of

industrial water, including heat exchanger, heating coil, chemical industry, medicine, fluid conveying pipe,

and so on

PERT Floor Heating Pipe Plastic Pipe Extrusion Line 380V 75KW 50HZ 0

Competitive Advantage:

PERT pipe production line

1.high extruding velocity

2.effective plasticization

3.three co-extruding die

4.low cost
