Product Details:
|
Plastic Processed: | PE HDPE | Power: | 100KW |
---|---|---|---|
Voltage: | 380V50HZ | Type: | Plastic Production Line, Plastic Extrusion Line |
Screw Design: | Single Screw | Automatic Grade: | Full Automatic |
Application: | Pipe | ||
High Light: | Plastic Granulating Machine,WPC Extrusion Line |

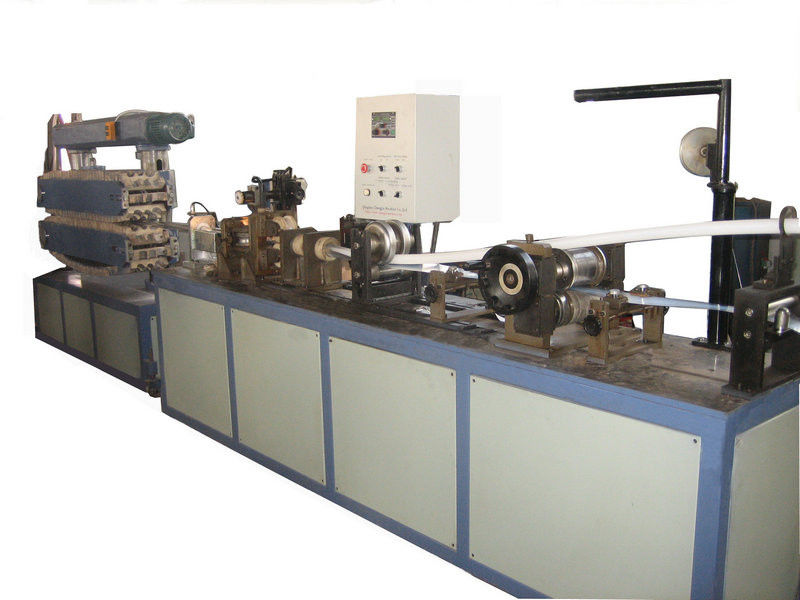

PE HDPE Aluminum Plastic Pipe Extruder , Single Screw Extruder
Quick detail:
Type: pipe machine
Pipe material : PE HDPE
Voltage: 380v50HZ 3P
Power : 100KW
Weight:8000KG
Certification: CE UL CSA
Screw design : single screw
Diameter : under 1200mm
Max.output : 80-150kg
Application : energy supply pipe
Weight :8000KG
Processing type : extruding machine
After-sales Service Provided: Engineers available to service machinery overseas
mould: change molds to produce different pipe products.
Minimum order: one set
certification: CE,CSA,UL,ISO9001
port: Qingdao port
voltage: 380V/3P/50HZ,600V/3P/60HZ,220V/3P/60HZ,or according to customer’s requirement.
Description:
Al plate unlocking → Al plate forming machine → Pex material→Vacuum Feeding → Single screw extruder
→ Single screw extruder → Co-extrusion mould → Al plate ultrasonic roll welding machine → Single screw
extruder → Single screw extruder → Co-extrusion mould → Dip-in cooling tank → Dip in cooling tank →
Spray code printer → Belt haul off → Double winder → Steaming for 24hours → Finished product
inspecting& packing
1. By adopting precision forming technique of aluminum tube, ultrasonic welded aluminum tube will have
precise size and nice roundness.
2. By adopting the process of co-extrusion in steps for inner and external tubes, binding strength between
tubes is increased, heat accumulation between tubes are avoided, hence, ensure a more smooth surface
of both inner and external tubes.
3. PLC control system is adopted by this production line, it has friendly human-computer dialogue
interface, easy to operate and with interlock function. ..
This production line is used to manufacture aluminum plastic tubes and aluminum tubes. Laminated tubes
will be formed in one step by ultrasonic welding and Co-extrusion process. Such aluminum and plastic
laminated tubes are widely applied for cold and hot city water pipes and running pipes of acid, alkali, salt,
other kinds of liquids, fuel gas, oxygen and compressed air etc.
Specifications:
Model |
Screw diameter(mm) |
L/D |
Extruder Qty. |
Pipe range(mm) |
Capacity (kg/h) |
Main motor power(kw) |
Total power(kw) |
Line length(m) |
PEX-AL-PEX32 |
45mm |
25:1 |
2 |
16-32 |
80-150 |
7.5 |
90 |
25 |
50mm |
28:1 |
2 |
18.5 |
|||||
PEX-AL-PEX63 |
45mm |
25:1 |
2 |
32-63 |
100-180 |
7.5 |
160 |
30 |
65mm |
28:1 |
2 |
37 |
Applications:
cold and hot city water pipes and running pipes of acid, alkali, salt, other kinds of liquids, fuel gas, oxygen
and compressed air etc.
Competitive Advantage:
1. good after-service
2. spare parts are free
3. gurantee:one year or according to customer’s requirement.
4. advanced technology and better quality
