Product Details:
|
Power: | 45KW | Plastic Processed: | PP |
---|---|---|---|
Screw Design: | Single Screw | Color: | Blue White Black Yellow |
Name: | Strapping Band Machine, Strapping Band Making Machine | Voltage: | 380V |
Automatic Grade: | Fully Automatic | Condition: | New |
High Light: | Strap Making Machine,Automatic Strapping Machine |

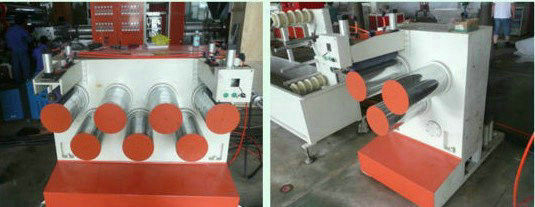

PP Strapping Band Machine , Blue / White Strap Making Machine
Quick detail:
1.PP strap band extrusion line is mainly for producing PP strap.
2.The raw material can be 100% recycled material, which can reduce the produce cost and get a good profit.
And The PP bale is the substitution of the steel strap and has a lot of advantages such as good extension, high temperature
resistant, easy use.
Description of pp strap band production line:
1) PP strap band extrusion line do not need to separate the dry and water treatment . There are automatic circulation on
preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
3) With the multi-purpose machine, produce the PP PET straps in different specifications directly and don not need to
change the mould head;
4) Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock
resistance are up to the international grade;
5) Low Energy consumption, but high production capability;
6)Easy to operate, save the manpower and two persons for one production line on average

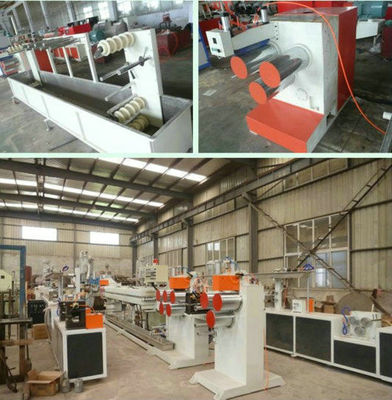

PP strap band extrusion line model
Model | SJ-65 | SJ-80 | SJ-90 |
Extruder | SJ-65/28 | SJ-80/28 | SJ-90/28 |
Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
Drive Motor | 22kw | 30kw | 55kw |
Two-station Winder | 80-120m/min,adjustable | ||
Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
Installed Capacity | About 40kw | about 60kw | about80kw |
Line Dimension | 26m×2m×2.2m (L×W×H) | 26m×3m×3m (L×W×H) | 26m×5m×3.5m (L×W×H) |
Application:
1. PET PP strap have many advantages, such as high tensile strength, small percentage elongation, impact resistence, economical, convinient operation safe. it is an ideal substitute of traditional steel strap.
2. It can adopt common steel fastening for connection, or connected by hot melt for various kind of hand operated table packing machine and large auto packing machine for enterprise using.
Competitive Advantage:
1. High production efficiency
2. Good quality &reasonable price
3. Good after-service
4. Good tensile sorted into types
5. Developed Production Line
