Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ80/156,SJSZ92/188
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

PVC WPC Foam Board Machine , Wood Plastic Double Screw Extruder

Description
Type: WPC Board Production Line, Wood Plastic Extrusion Line Screw Design: Double Conical Screw
Automatic Grade: Full Automatic Plastic Processed: PVC, Wood Plastic Composite
Voltage: 380V/3P/50HZ, 600V/3P/60HZ, 220V/3P/60HZ Raw Material: Recycled PE/PP, Wood Powder, Additive Material, Etc
Model Number: SJSZ80/156 Condition: New
High Light:

Wood Plastic Extruder

,

WPC Board Machine

PVC WPC Foam Board Machine , Wood Plastic Double Screw Extruder



Quick detail:

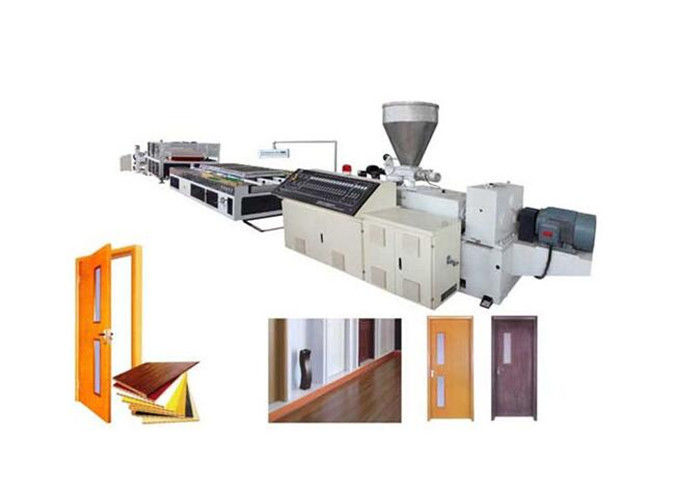

1.Processing Flow of Wood Plastic Composited Product Making Machine/PVC PE PP WPC Door Floor Decorative Profile Board Panel Extrusion Production Line

Raw material+Wood powder+Additive - Mixing - Conical twin screw extruder - Extrusion mould - Calibrator - Spray cooling - Cutter - Rack - Finished product inspecting and packing

2.Combination of Wood and Plastic

Thermoplastic: HDPE,LDPE,PP,PVC
Wood Flour: 20-60 mesh
Lubricants, Pigments, Coupling agents, other additives



Description:

1. PVC WPC Foam Board Panel Profile Making Machine Production Line (for Interior Decoration Materials)
PVC wide thick WPC composite foam plate production line is mainly used to produce building panels, wide door, cabinet panels, interior decoration materials.
2. According to different plate cross section, the production line choose different specifications of conical (parallel) twin-screw extruder, and corresponding vacuum shaping table, tractor, cross-cut machine, stacker and other auxiliary equipment.

3. Hosts extrusion capacity can optional between 250 kg to 800 kg per hour. Traction machine adopts our company's special lifting technology, stable operation, good reliability, high traction.

4. Vacuum forming uses a special enlarged vortex cooling system, to facilitate cooling stereotypes, to meet the needs of the production characteristics of various specifications plate. Transverse cutting device and the plate pulling speed to maintain absolute synchronization, all movements of goods into the PLC using computer control, reasonable design, stable operation can be automatically cut to length and equipped with dust recovery.



Applications:

Wood-plastic sheet production line mainly used: PVC + wood powder. Block off production construction, cabinet door. Windowsill board. And other wood-plastic sheet extrusion. The line is used our original wood-plastic technology and formula. Plates can be based on different sections, according to the different usages of sheet, product design different proportions of products.



Main Technical Parameters

Model Unit SJSZ80/156 SJSZ92/188 SJSZ80/156, SJ65/132
Product width mm 1220 1600 1600-2050
Product thickness mm 3-20 5-30 3-20
Max. extrusion capacity Kg/h 400 600 800
Power of extruder KW 75 110 120



Competitive Advantage:

1.good after-service

2.spare parts are free

3.guarantee:one year or according to customer’s requirement.

4.advanced technology and best quality

5.international certification standard.

6.our engineer help and teach customer to test the machine.
