Product Details:
|
| Screw Design: | Single Screw | Application: | Water And Gas Supply Pipe |
|---|---|---|---|
| Plastic Processed: | PE/PP/PE-RT/PEX | Capacity: | 150-1500KG/h |
| Type: | Plastic Production Line, WPC Extrusion Line | Automatic Grade: | Full Automatic |
| Condition: | New | Warranty Time: | 1 Year |
| Motor Brand: | Siemens | Place Of Original: | China |
| High Light: | plastic extrusion machine,plastic production line |
||
PE Sewage Plastic Pipe Extrusion Machine With 150KG/h - 1500KG/h
Quick detail:
1.Specical single screw extruder for polyolefin, having high extruding velovity and effective plasticization.
2.Separation mixing screw specialized for polyolefin.
3.Specially designed 2-3 co-extruding die,reasonable channel, smooth outside and inside wall, and little internal stress.
4.Producing pipe limit 20-160mm,manufacture velocity up to 15m/min.
5.May be used ro produce HDPE silicon core tube, ordinary PP-R,PEMPEX and PE-RT pipes.
Description of pe pipe extruder machine:
1.PE sewage pipe extrusion machine use to produce many pipe,like PPR cold water and hot water pipe,
single and double pipe, PE/PP/PE-RT/PEX pipe, silicon core pipe etc. Using single extruder to produce
concolorous pipe or many extruder to co-extruding many layer of different color.
2.Main features: Adopt high-efficiency, special screw to ensure the stable quality of high extrusion output.
Lattice backet die achieve low melting pressure and plasticizing temperature to get large processing range.
Tractor caterpillar is durable, strong abrasion resistance, stable high speed of traction power. Dust free
cutting machine with low noise and high precision make the pipe cutting edge smooth and flat.
3.Process flow:Raw material + additive → mixing → vacuum feeder → hopper dryer →
single screw extruder → marking line extruder → mould and calibrator → vacuum calibration tank
→ cooling tank → haul off machine → printer → cutting machine → pipe storage shelve
Technical parameters for pe pipe making machine:
| Model | Pipe diameter | Extruder | Capacity | Total Length |
| PP-R-63 | Φ20-63 mm | SJ65/30 | 70-100 kg/hr | 20 m |
| PP-R-110 | Φ50-110 mm | SJ90/30 | 100-150 kg/hr | 25 m |
| PP-R-160 | Φ75-160 mm | SJ90/32 | 150-200 kg/hr | 25 m |
Applications:
1.field;construction and municipal drain outdoor gas pipe, agricultural irrigation, threading pipe, wire, cable
and optical cable, drainage pipe, etc
2.usage:transportation between cities and in water supply projects of urban areas.
3.function:transportation, borehole high-pressure water supply, crude oil and natural gas
transportation,water supply and drainage of daily life, power and chemical plants, and urban construction
Competitive Advantage:
PE water pipe production line
1.high extruding velocity
2.effective plasticization
3.three co-extruding die
4.low cost

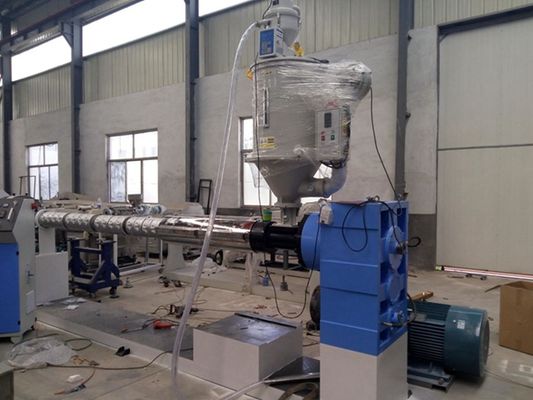

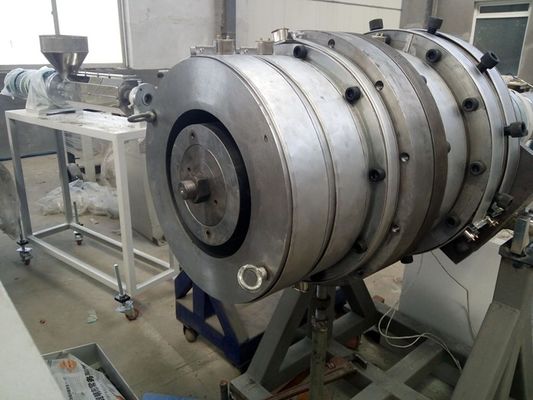

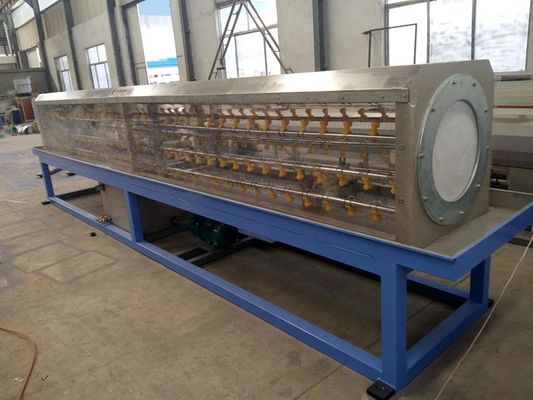

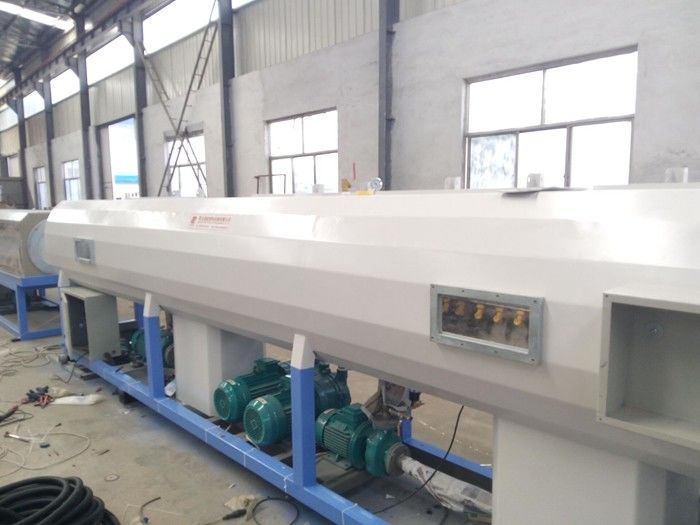

Machine display:
