Product Details:
|
| Brand Name: | Aorui | Screw Design: | Single Screw |
|---|---|---|---|
| Frequency Control: | ABB | After-sales Service: | Engineers Availiable To Service |
| Warranty: | 1 Year | Condition: | New |
| Application: | Pipe | Place Of Original: | Qingdao City |
| Temperature Controller: | Omron | Plastic Processed: | PE |
| High Light: | Plastic Extruding Machine,Plastic Extrusion Equipment |
||
HDPE Electric Water Pipe Extrusion Line , PP / PE Drainage Pipe Plastic Extruder
Quick detail:
1.Type:PP/PE water and gas supply pipe extruder,PP/PE drainage pipe machine
2.Process type:electrical pipe extrusion machinery
3.Pipe material : PP PE
4.Application: water and gas supply pipe
5.Diameter : 16-1600mm
6.Product capacity : 150-1500KG/h
7.Usage:construction and municipal drain outdoor gas pipe, agricultural irrigation, threading pipe, wire,
cable and optical cable, drainage pipe, etc
Description:
PE sewage pipe extrusion line
1.PE sewage pipe extrusion machine use to produce many pipe,like PPR cold water and hot water pipe,
single and double pipe, PE/PP/PE-RT/PEX pipe, silicon core pipe etc. Using single extruder to produce
concolorous pipe or many extruder to co-extruding many layer of different color.
2.Main features: Adopt high-efficiency, special screw to ensure the stable quality of high extrusion output.
Lattice backet die achieve low melting pressure and plasticizing temperature to get large processing range.

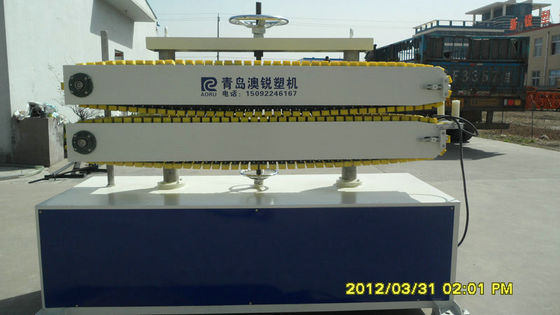

Tractor caterpillar is durable, strong abrasion resistance, stable high speed of traction power. Dust free
cutting machine with low noise and high precision make the pipe cutting edge smooth and flat.

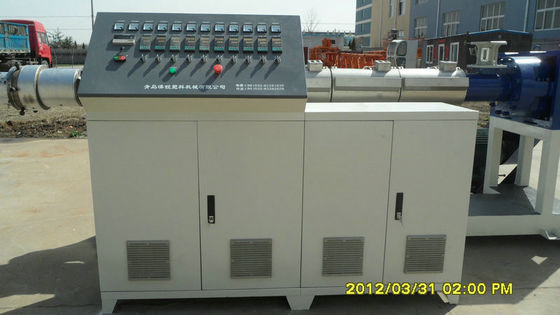

single screw extruder → marking line extruder → mould and calibrator → vacuum calibration tank
→ cooling tank → haul off machine → printer → cutting machine → pipe storage shelve
Technical parameters:
|
Pipe Range
|
16-63
|
20-63 (Double Exits)
|
20-160
|
50-250
|
110-315
|
160-450
|
250-630
|
315-800
|
500-1200
|
|
Extruder Mode
|
BRD50/40
|
BRD60/40
|
BRD60/40
|
BRD75/40
|
BRD75/40
|
BRD90/40
|
BRD90/40
|
BRD90/40
|
BRD120/40
|
|
L/D Ratio
|
40
|
40
|
40
|
40
|
40
|
40
|
40
|
40
|
40
|
|
Main Motor(kw)
|
55
|
90
|
110
|
160
|
160
|
250
|
250
|
280
|
355
|
|
Max. Capacity(kg/h)
|
250
|
450
|
500
|
650
|
650
|
1000
|
1000
|
1100
|
1300
|
|
Total Installaton Power(kw)
|
110
|
180
|
220
|
280
|
290
|
430
|
490
|
540
|
610
|
Applications:
1.Field;construction and municipal drain outdoor gas pipe, agricultural irrigation, threading pipe, wire, cable
and optical cable, drainage pipe, etc
2.Usage:transportation between cities and in water supply projects of urban areas.
3.Function:transportation, borehole high-pressure water supply, crude oil and natural gas
transportation,water supply and drainage of daily life, power and chemical plants, and urban construction
Competitive Advantage:
PE water pipe production line
1.high extruding velocity
2.effective plasticization
3.three co-extruding die
4.low cost
Contact Person: AORUI
Tel: +8618561633106
