Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Screw Design: | Single Screw | Material: | Pet |
| Automatic Grade: | Fully Automatic | Application: | Pet Strap Band |
| Certificate: | CE ISO9001 | Width: | 5-19mm |
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||
Waste PET Strapping Band Machine for Packing , Recycled Strap Band Extrusion Line
Quick detail:
PET Strap Band Extrusion Line is new equipment which is developed by our company through long-time production experience, combining characteristics of advanced plastics industry. It adopts frequency motor as its power, soft connection of mechanical transmission with functions of high precision, smoothness, low noised, saving power and time.
Features of PET Strap Band Production Line:
Feature 1:
• Raw material process and extrusion system.
• High performance crystallizing and drying system.
• Production can use 100% recycled material to obtain a high add value strapping band.
Feature 2:
• Continuous back-flush screen changer operating technology (Europe technology).
• 100% full automatic self-cleaning screen changer.
• Double column 4 screen cavities.
• PLC Control , change screen without production interrupted , not influence the production quality
Feature 3:
• Special designed hot air stretching oven.
• Configured with heating unit and automatic temperature control system.High performance heat insulating layer.
• Better on strip stretching and heating, rapid heating, complete strip orientation stretching.
Feature 4:
• Heating oven for sizing
• Special designed technology, make sure the strip forming rapidly • Prevent the strip from un-orientation after orientation, eliminate internal stress,make sure the quality of strip accuracy and quality.
Specifications:
|
Model |
SJ-65 |
SJ-80 |
SJ-90 |
|
Extruder |
SJ-65/28 |
SJ-80/28 |
SJ-90/28 |
|
Productivity |
60-100kg/h |
80-120kg/h |
120-150kg/h |
|
Drive Motor |
22kw |
30kw |
55kw |
|
Two-station Winder |
80-120m/min,adjustable |
||
|
Strap Size |
Width:5mm-20mm |
Width:10mm-25mm |
Width:20mm-35mm |
|
Thickness:0.36mm-1.0mm |
Thickness:0.5mm-1.3mm |
Thickness:0.5mm-1.8mm |
|
|
Installed Capacity |
about40kw |
about 60kw |
about80kw |
|
Line Dimension |
26m×2m×2.2m (L×W×H) |
26m×3m×3m (L×W×H) |
26m×5m×3.5m (L×W×H) |
Application:
PET strap band has high stretching quality, resist high temperature. It is mainly suitable for package. Its advantages are strong pulling force, good extension, rust resistance, lighter density, convenient operation, safe, reliable and cheap price, etc.
Competitive Advantage:
1, The whole line arrangement is reasonable, easy to operate .
2, The whole production line adjusted by frequency converter, to save energy .
3, PC special screw design, high output, is quite smooth .
4, Unique material embryo and sink cooling, angle suitable, embryo without deformation .
5, Using belt conveyor, the embryo cooling out from the tank is quite stable .

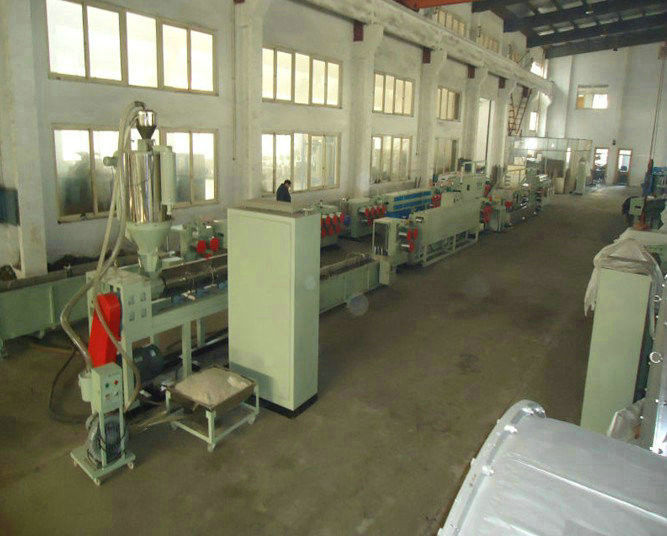

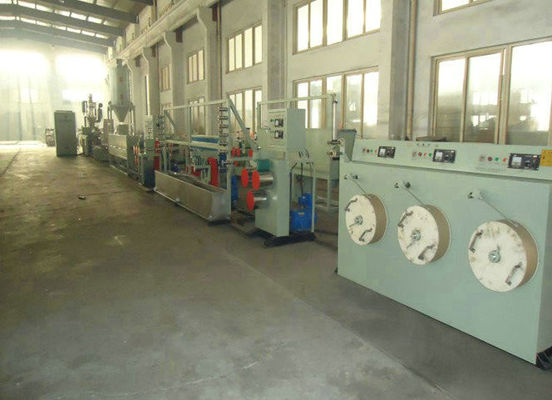

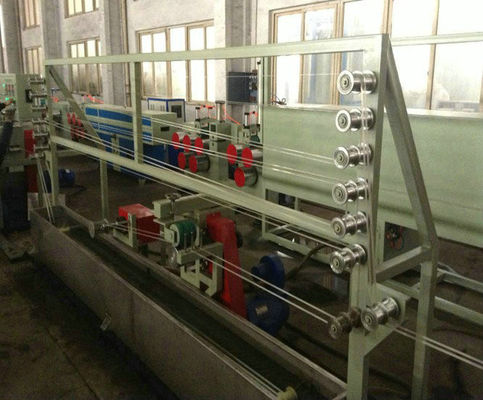

Machine display:
