Product Details:
|
| Plastic Processed: | PVC WPC | Type: | Plastic Production Line, Profile Extrusion Machine |
|---|---|---|---|
| Screw Design: | Double Screw | Automatic Grade: | Full Automatic |
| Application: | Profile | Condition: | New |
| Place Of Original: | China | Warranty Time: | 1 Year |
| Inverter Brand: | ABB | ||
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||
WPC PVC Plastic Profile Extrusion Machine , PVC WPC Window Profile Production Line
Quick detail of pvc wpc profile machine:
1. Product Processing Flow:
Raw material+Wood powder+Additive → Mixing → Granules → Conical twin screw extruder → Profile extrusion mould → Cooling molding die → Vacuum calibration support → Belt haul off → Cutter → Rack → Finished product inspecting and packing
2. Our pvc machine has features of low consumption,low noise,stable running.This pvc machine include:extruder,mould,vacuum calibration table,haul-off machine,cutter and stacker.The extruder of wpc machine adopt special wpc screw and barrel for extrusion.With different mould,wpc machine can produce wpc products with different shapes.
Description of pvc window profile making machine:
1.YF series pvc profile extruder machine main used to production pvc window door profile products, wide door board, window sill etc.This profile machine can according different profile section and mould to adopt different parrel or conical twin screw extruder, and equipped with different vacuum sizing table,tractor, cutter, stacker and other auxialiry machine to production different products.
2.The main machine extrusion capacity can up to 60kg/h to 700kg/h. The traction machine adopt our unique lift and down techique, it is running stable, has high traction force.
3.Vacuum sizing table adopt special enlarge cooling system, easy cooling, to meet the requirement of high extrusion.The moving speed of the cutting machine is in synchronic with the pulling speed,all adopt plc controll, it has reasonable design, running stable, automatic fixed length cutting.
4.According to different mould, sizing table can choose 4 meters, 6 meters, 8 meters, 11meters and other specification.Equipped with parrel twin screw extruder, especially suitable for production profile products.
Specifications:
|
Model |
SJSZ65/132,SJSZ80/156,SJSZ92/188 |
|
usage |
extrusion outdoor decorative |
|
raw material |
recycled PE/PP,wood powder, additive material,etc |
|
product size |
maximum:400mm,or according to prdroduct’s drawing |
|
Extruder feature |
Special designed extruder |
|
wood powder ( wood fiber) |
high volume of addition up to 50~75 percent |
|
Plastic proceed |
PP,PE,PVC,wood plastic composite |
|
Auxiliary machine |
Emboss machine,sanding machine,polishing machine |
|
Product type |
Dustbin, Sound insulation board (wall),edging,blinds,bulkhead,curtain rod, |
Applications:
Profiles for the building industry
windows ,door frame and board,rolling shutters ,gutters ,fencing ,ceiling,deck,floor Profiles for furnishing,furniture edge bands,coatings.
Competitive Advantage:
1. WPC profile production line uses efficient extrusion equipment which is of stable extruding and energy saving.
2. The screw barrel of extruder has unique internal structure with 38CrMoAlA alloy steel surface coating.
3. The cooling method of screw core adopts oil thermostatic system with automatic temperature control,so that the material can achieve the best plasticized state.
4. Chaging the moulds,this wood plastic profile production line can manufacture many different kinds of profiles according to your requrest.
5. This WPC profile extrusion line is mainly used in WPC (PVC or PE ) floor, WPC auxiliary profile for the decorative door and small profiles.With both properties of wood and plastic, the WPC products are of high stiffness and impact performance.

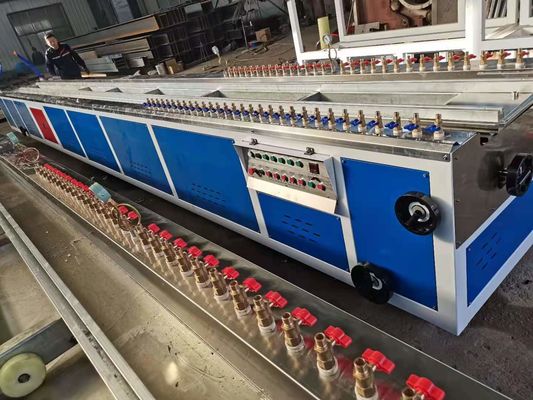

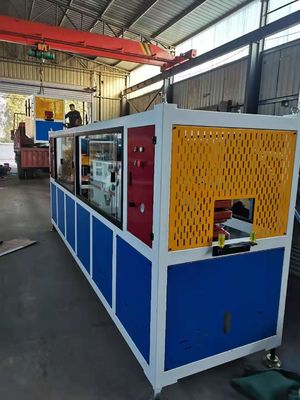

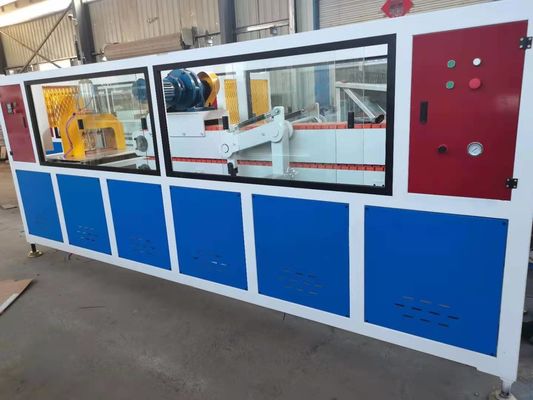

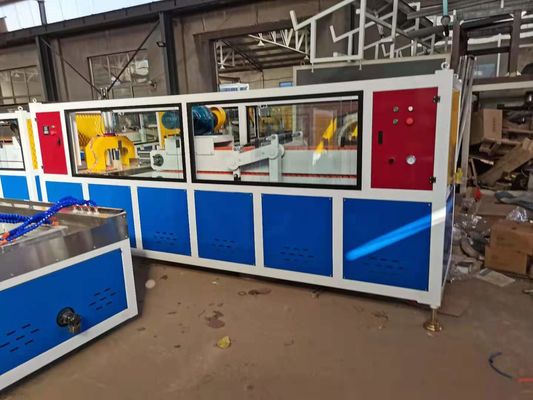

Machine display:
